Keysight Technologies B1505A User Manual

2-36 Keysight B1505A User’s Guide, Edition 12
Introduction
Measurement Resources
MPSMU - Medium Power SMU
This section describes typical specification of the medium power source/monitor
unit (MPSMU). There is no restriction for the number of modules installed in one
mainframe.
• Maximum voltage, current, output power: ± 100 V, ± 100 mA, 2 W
• Minimum range: 0.5 V, 1 nA
• Output/measurement value and resolution: see Table 2-11 to Table 2-14.

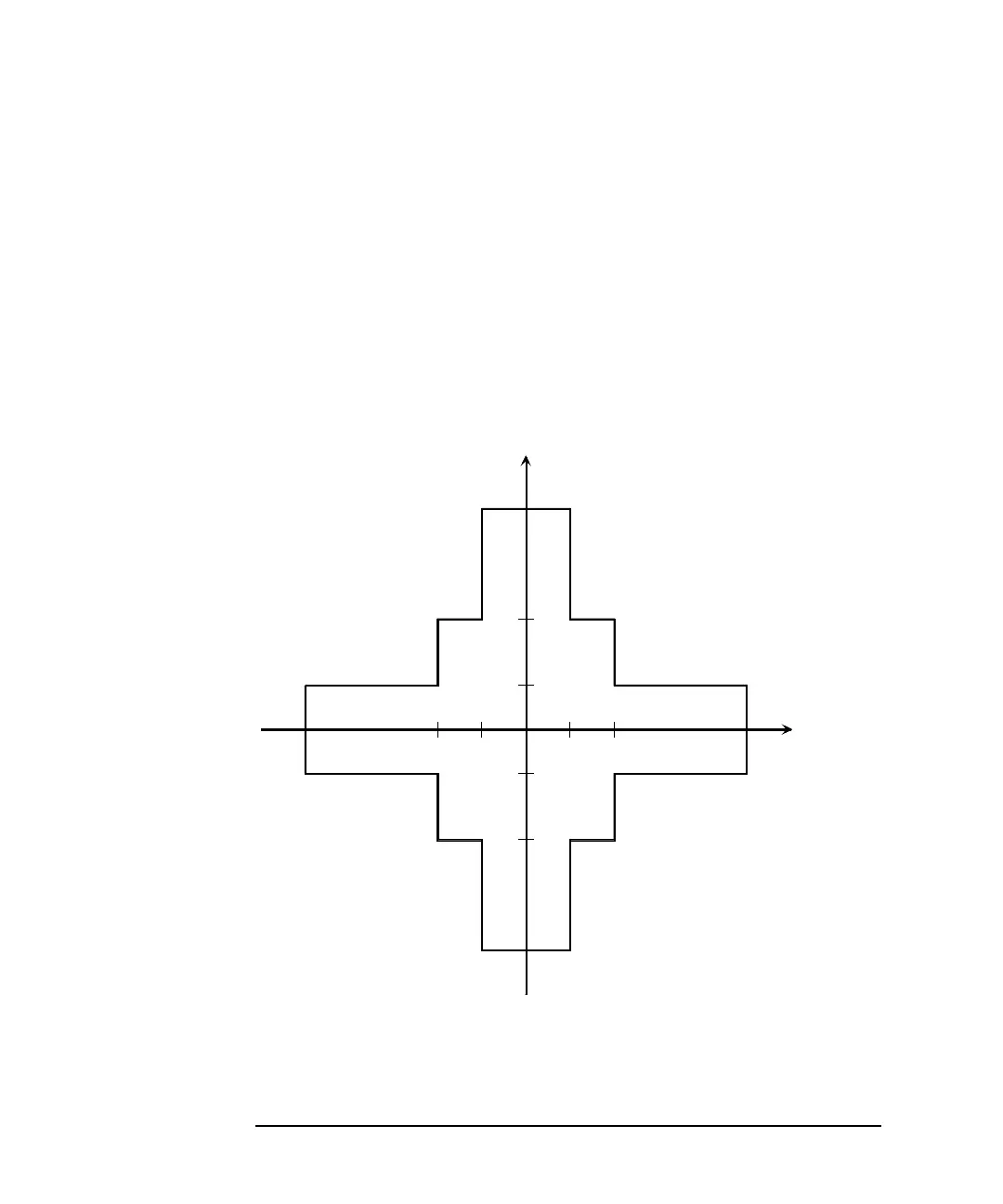

Figure 2-6 MPSMU Output and Measurement Ranges
100 100
40
40
20
20
100
50
20
50
20
100
Voltage (V)
Current (mA)
-
- -
-
-
-
