Introduction
Measurement Resources
HVSMU - High Voltage SMU
This section describes typical specification of the high voltage source/monitor unit
(HVSMU). Maximum five B1513C modules can be installed in one mainframe.
• Maximum voltage/current: 3000 V/4 mA, -3000 V/-4 mA, 1500 V/8 mA, or
-1500 V/-8 mA
• Maximum output power: 12 W (at one module used)
• Minimum range: 200 V, 1 nA
• Output/measurement value and resolution: see Table 2-9 and Table 2-10.
NOTE Multiple B1513A/B1513B HVSMU modules cannot be installed in one mainframe.
The B1513A HVSMU cannot be used with the N1267A HVSMU/HCSMU Fast
Switch.

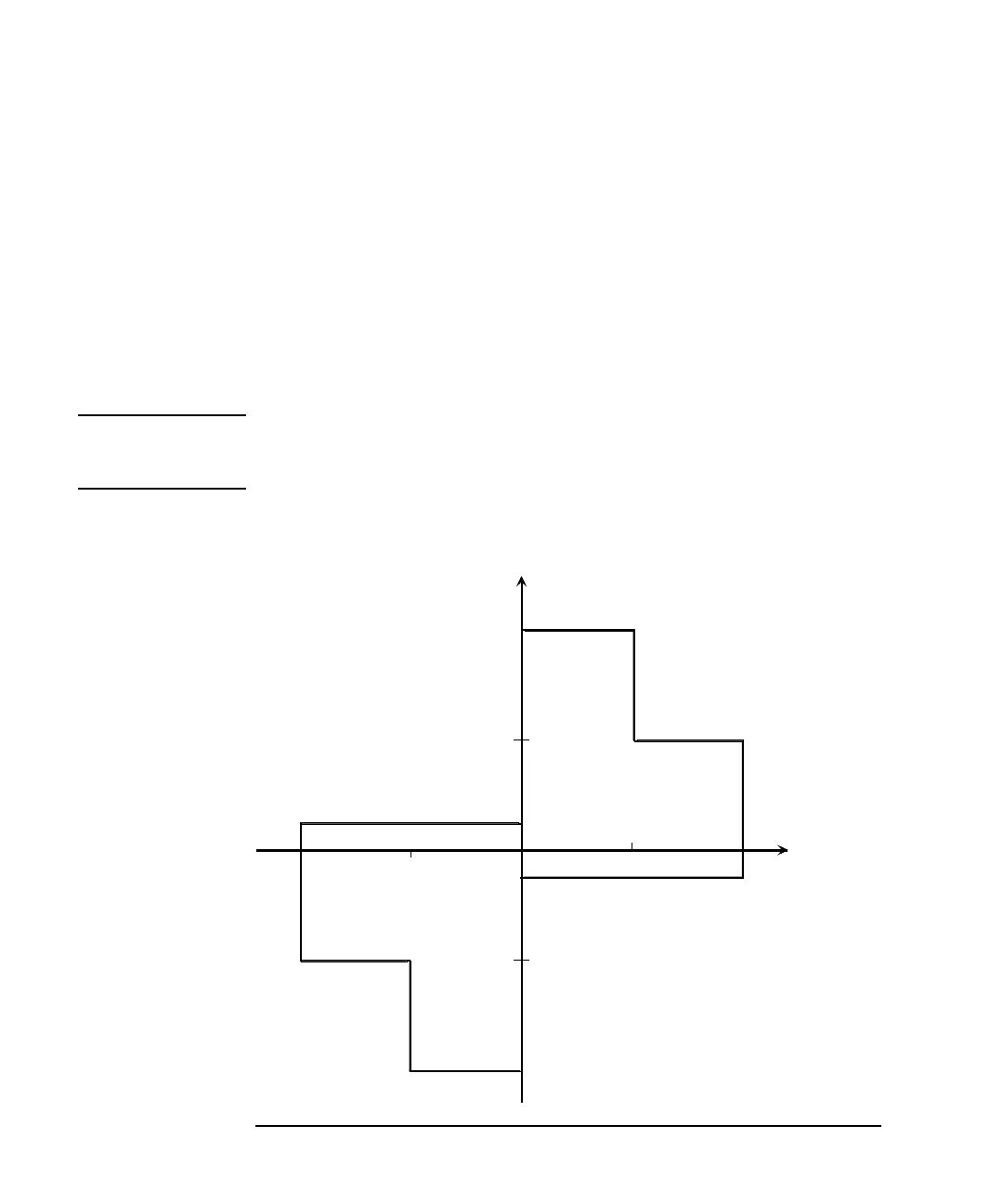

Figure 2-5 HVSMU Output and Measurement Ranges
3000
3000
1500
1500
8
4
4
8
Voltage (V)
Current (mA)
-
-
-
-
1
-
1
