Keysight B1505A User’s Guide, Edition 12 2-41
Introduction
Measurement Resources
HVMCU - High Voltage Medium Current Unit
The high voltage medium current unit (HVMCU) is configured by the Keysight
N1266A HVSMU current expander, the HVSMU module, and two MCSMU/
HCSMU modules. Typical specifications of the HVMCU are shown below.
• Output: voltage pulse
• Measurement: current or voltage
• Maximum voltage: ± 2200 V, or ± 1500 V for 2 A compliance range
• Minimum pulse width: 10 s
• Minimum pulse period: 5 ms
• Output/measurement value and resolution: see Table 2-17 and Table 2-18.
CAUTION Never connect the HVMCU High terminal to any output, including circuit common,
chassis ground, or any other measurement resource such as SMU. Connecting other
measurement resource may damage the connected one.

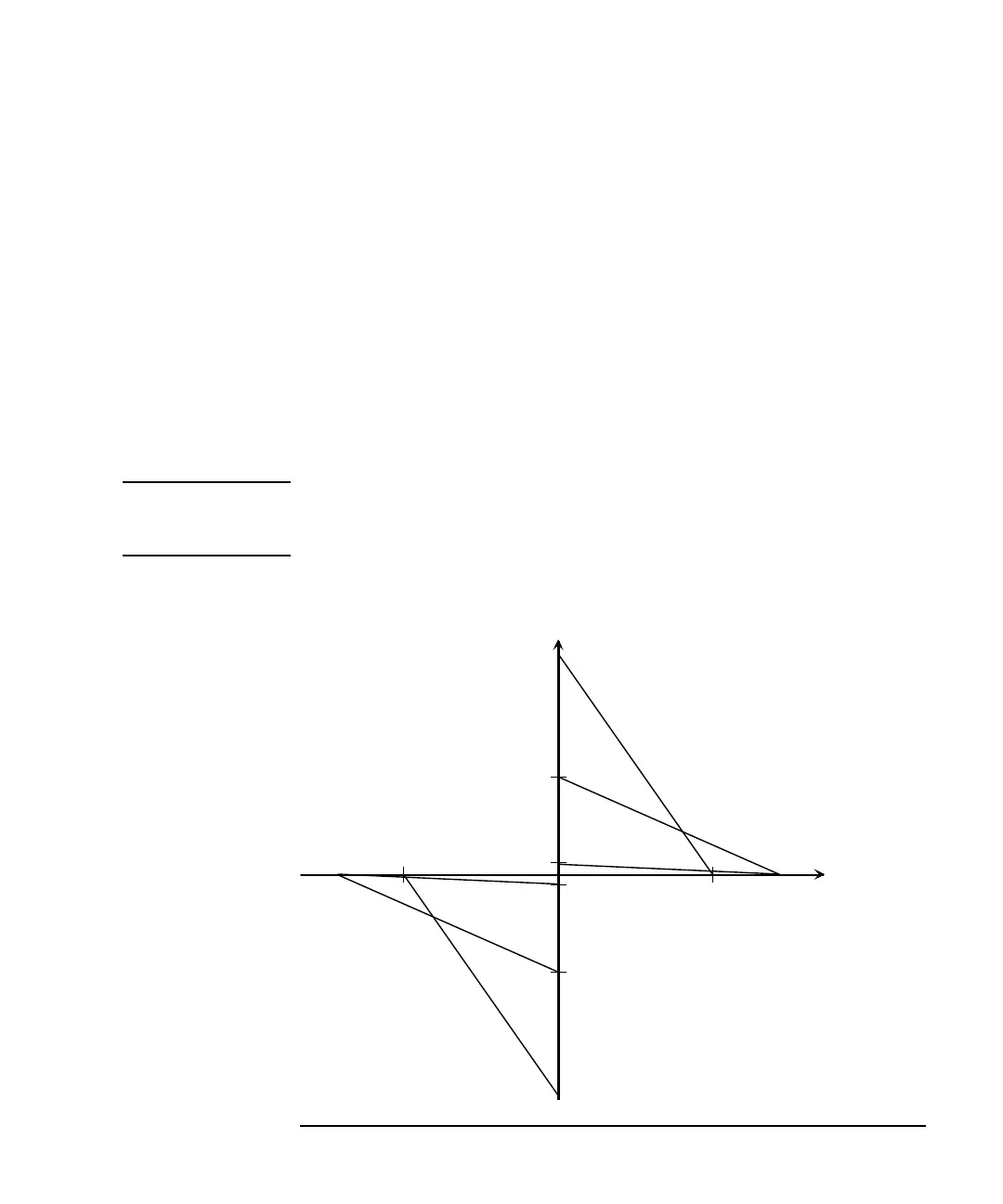

Figure 2-8 HVMCU Output and Measurement Ranges
2200
2200
1500
1500
2.5
1.1
1.1
2.5
Voltage (V)
Current (A)
-
-
-
-
0.11
0.11
-
