1-16 Keysight B1505A User’s Guide, Edition 12
Getting Started
To Perform Measurement
To Perform Measurement
1. Click the Single button (upper right on the main screen) to start measurement.
This opens the Data Display window and starts a single sweep measurement.
After the measurement, the measurement data is displayed on the Data Display
window. For the measurement after performing “To Use Classic Test Mode” on
page 1-14, you will have the test result as shown in Figure 1-8. This is the
leakage current measurement result because all measurement terminal is opened
for performing the procedures described in this chapter.
2. If the automatic data record function has been set to ON (Auto Record ON), Test
Result Editor appears on the lower area of the screen when the measurement is
completed. See “To Use Test Result Editor” on page 1-17.

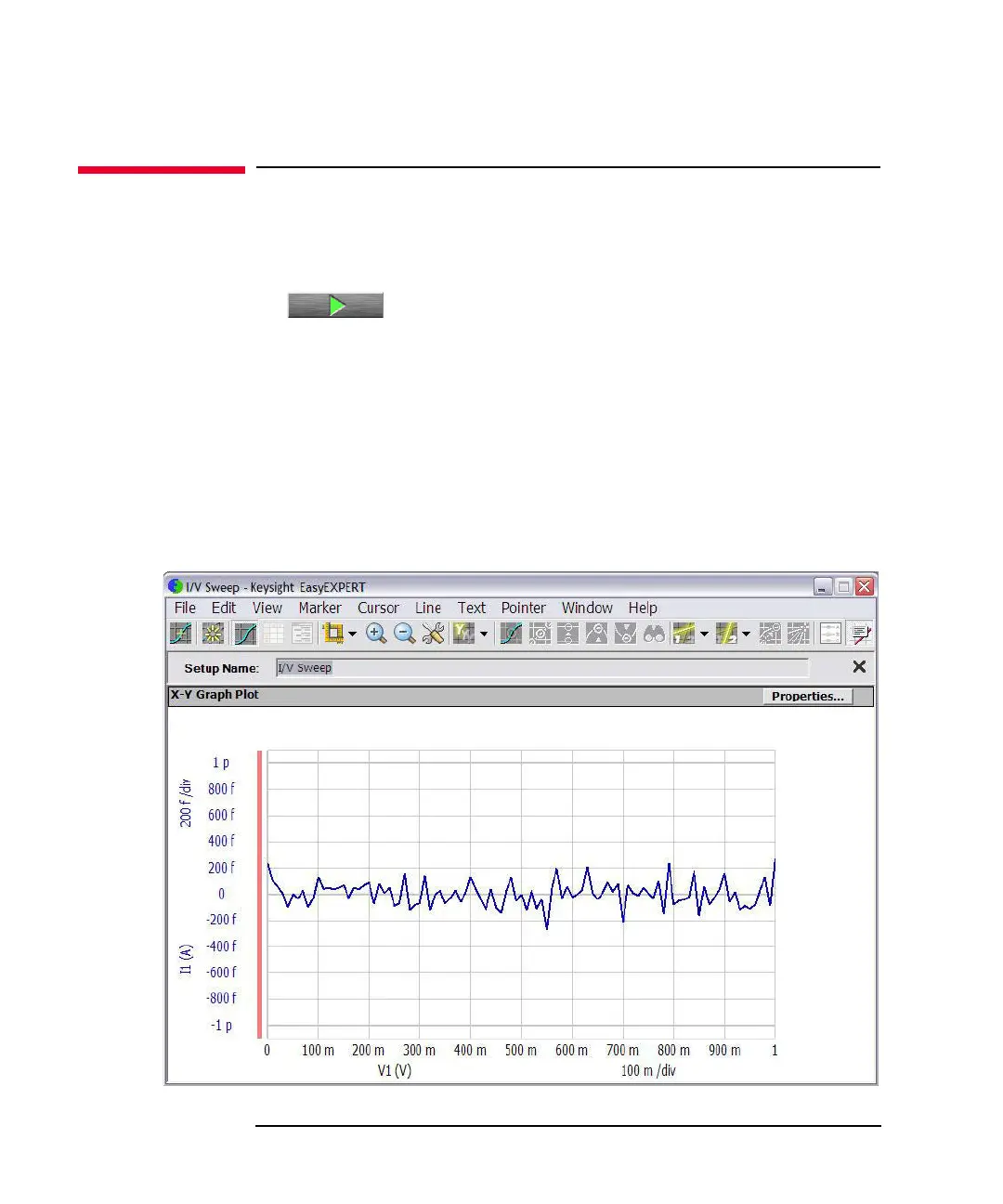

Figure 1-8 Display Example of Data Display Window
