Keysight Technologies B1505A User Manual

Keysight B1505A User’s Guide, Edition 12 1-11
Getting Started
To Use Tracer Test Mode
Table 1-3 I/V Trace Measurement Setup

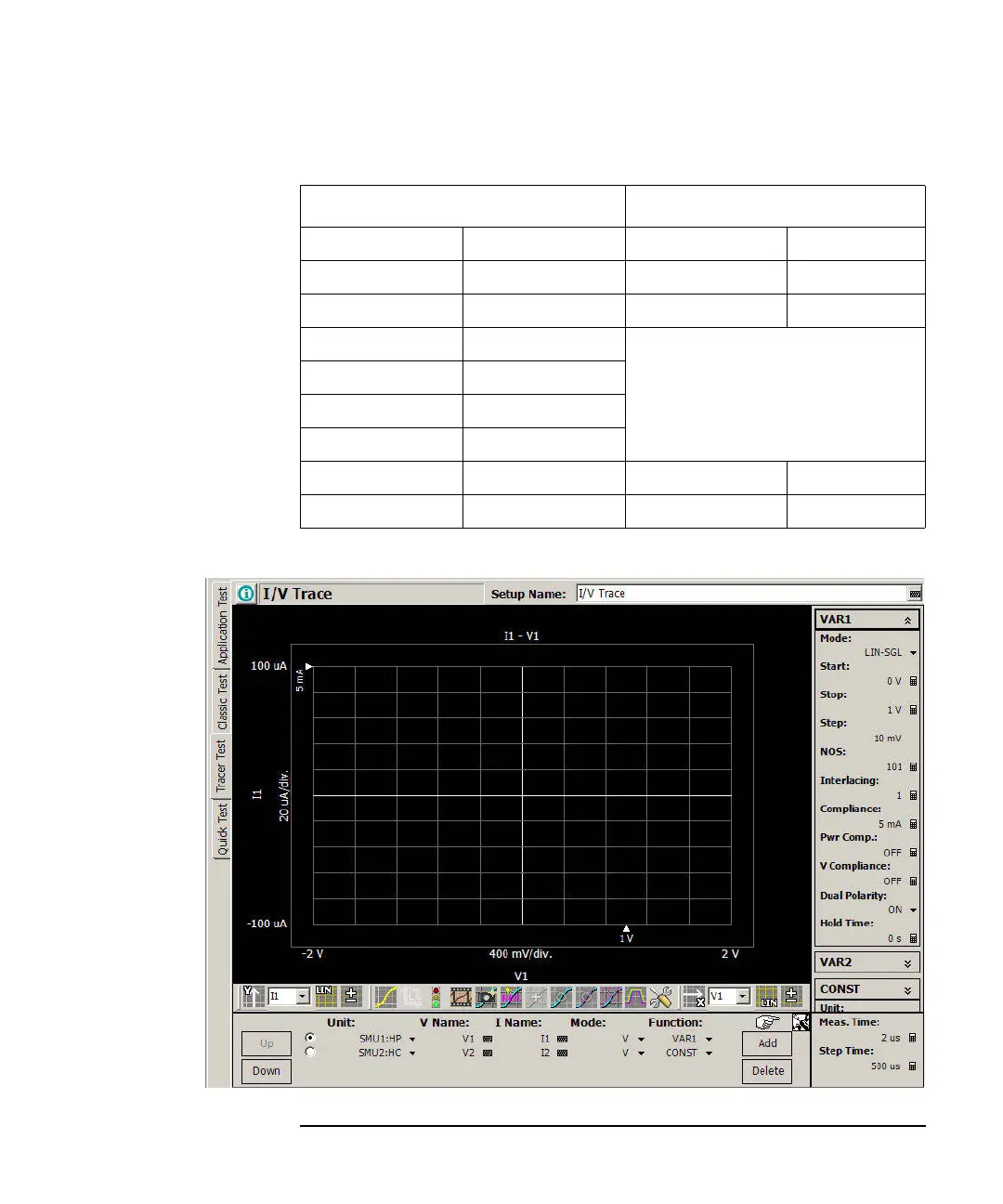

Figure 1-4 Display Example of I/V Trace Screen
VAR1 CONST
Mode LIN-SGL Unit SMU2
Start 0 V Source 0 V
Stop 1 V Compliance 5 mA
Step 10 mV
NOS 101
Interlacing 1
Compliance 5 mA
Pwr Comp. OFF Meas. Time 2 us
Dual Polarity ON Step Time 500 us
