5-42 Keysight B1505A User’s Guide, Edition 12
Measurement Examples
Temperature Controlled by ThermoStream
NOTE Thermometer: Set the operation mode, Air or DUT, of ThermoStream.
5. Create a test setup for setting up the wait time and the temperature monitor.
If the thermometer of the ThermoStream is used for the temperature monitor,
create a test setup using the ThermoStream WaitTemperature application test and
save it to the preset group created in Step 1.
If the thermocouple connected to N1265A is used for the temperature monitor,
create a test setup using the N1265A WaitTemperature application test and save
it to the preset group created in Step 1.

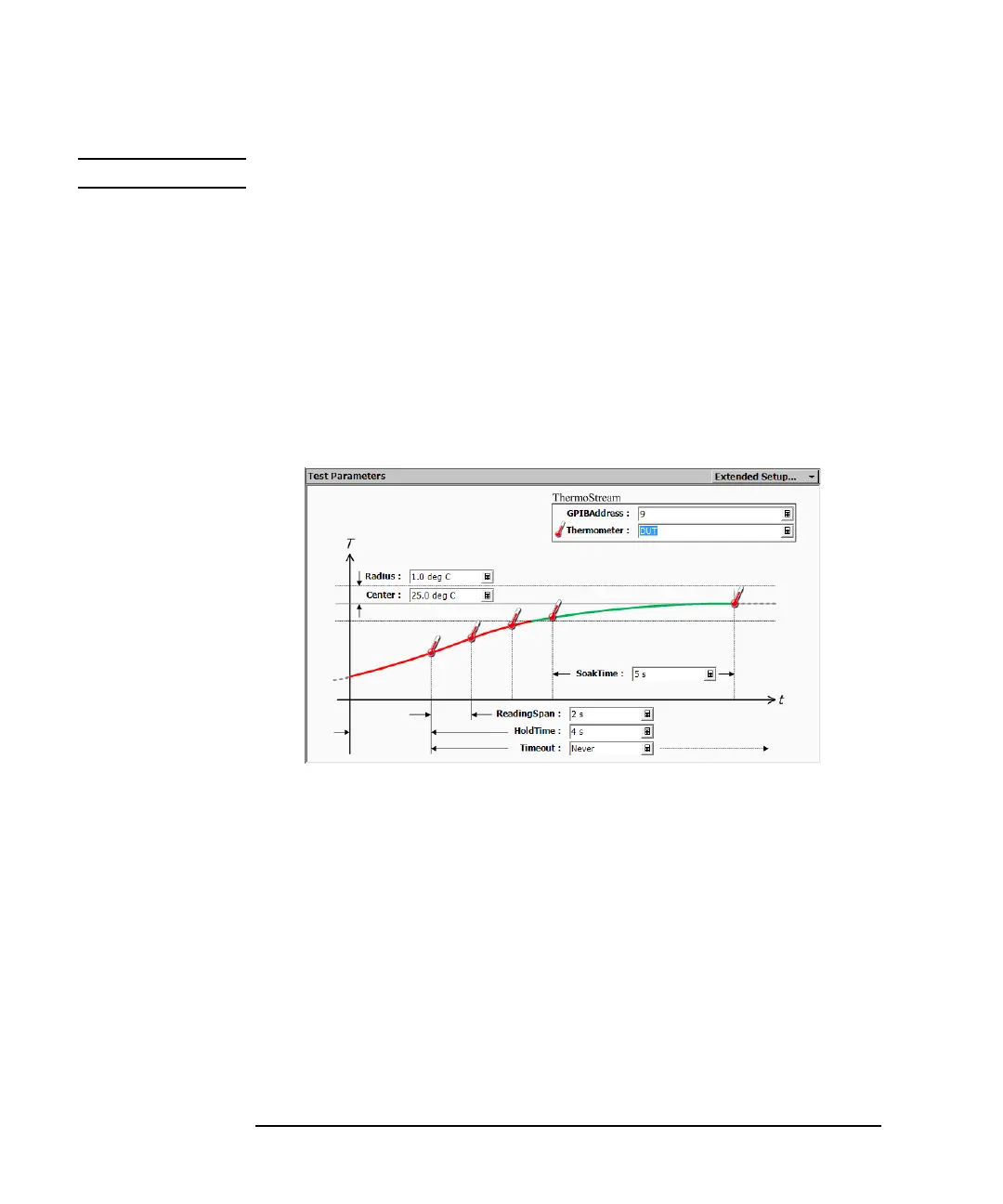

The following example sets the target temperature range to 25 °C 1 °C, the
hold time to 4 seconds, the temperature monitor interval to 2 seconds, and the
soak time to 5 seconds.
6. Create a test setup for measurement.
Create a test setup using the desired classic test or application test, and save it to
the preset group created in Step 1.
7. Repeat steps 4, 5, and 6 as much as the number of the temperature conditions.
8. Create a test setup for controlling the temperature of the ThermoStream airflow
to the ordinary temperature.
Create a test setup using the ThermoStream ControlTemperature application test,
and save it to the preset group created in Step 1.
9. Create a test setup for stopping the ThermoStream airflow.
Create a test setup using the ThermoStream FlowOff application test, and save it
to the preset group created in Step 1.
