Keysight Technologies J-BERT M8020A User Manual

16 Keysight M8070A Programming Guide
1 Programming Basics

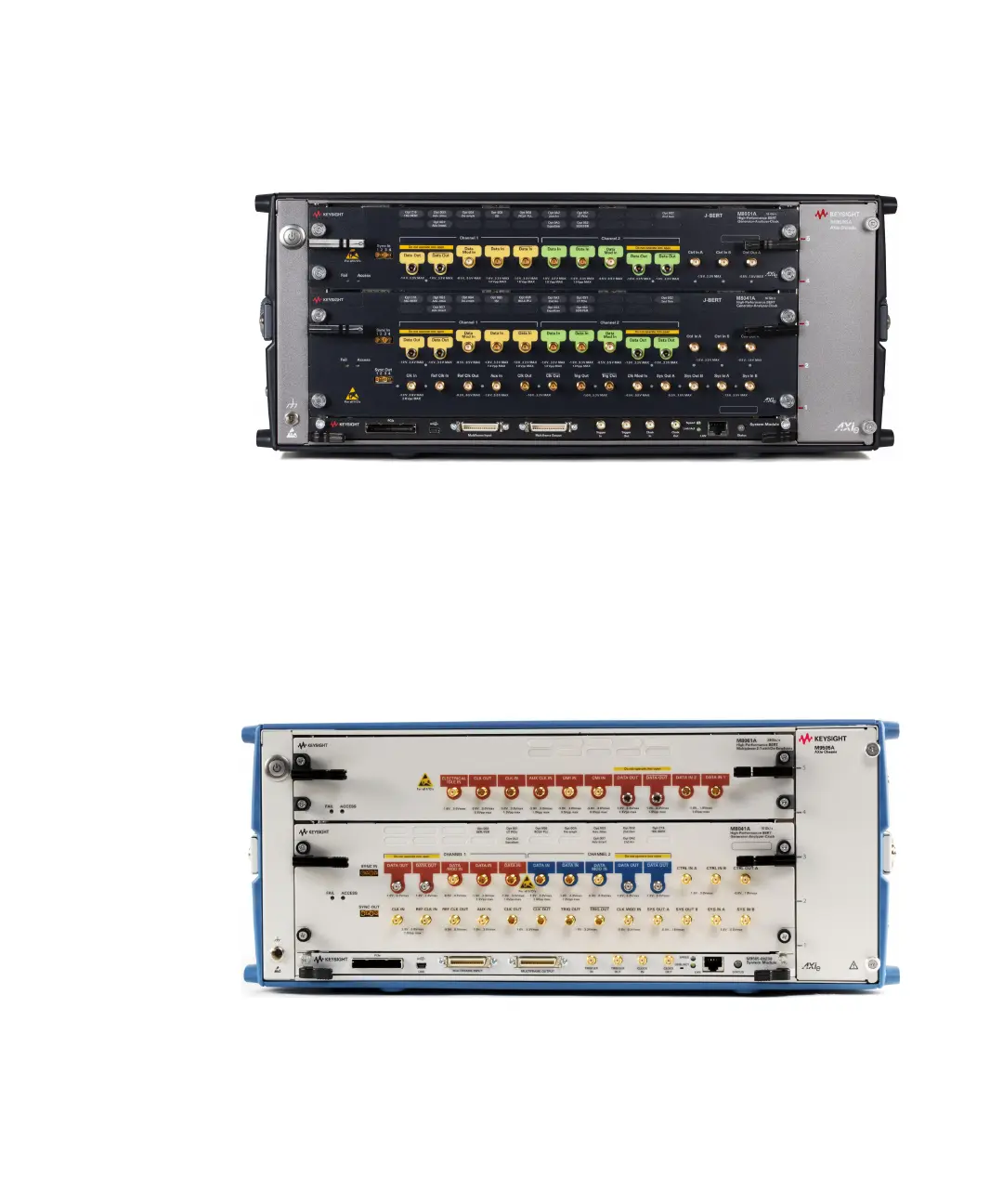

Figure 2 M8020A configuration for 16 Gb/s BERT for up to 4 channels
1-channel, 32 Gb/s (Pattern Generator Only)
A typical configuration using the M8061A 32 Gb/s multiplexer with
de-emphasis consists of the 5-slot M9505A AXIe Chassis, an M8041A
module, and an M8061A module. The M8041A occupies three slots and
the M8061A occupies two slots.
Figure 3 M8020A configuration for 32 Gb/s BERT (external de-multiplexer is
recommended)

Keysight Technologies J-BERT M8020A Specifications

General

Brand	Keysight Technologies
Model	J-BERT M8020A
Category	Control Unit
Language	English
