Keysight M8070A Programming Guide 43
Recommended Programming Techniques 2

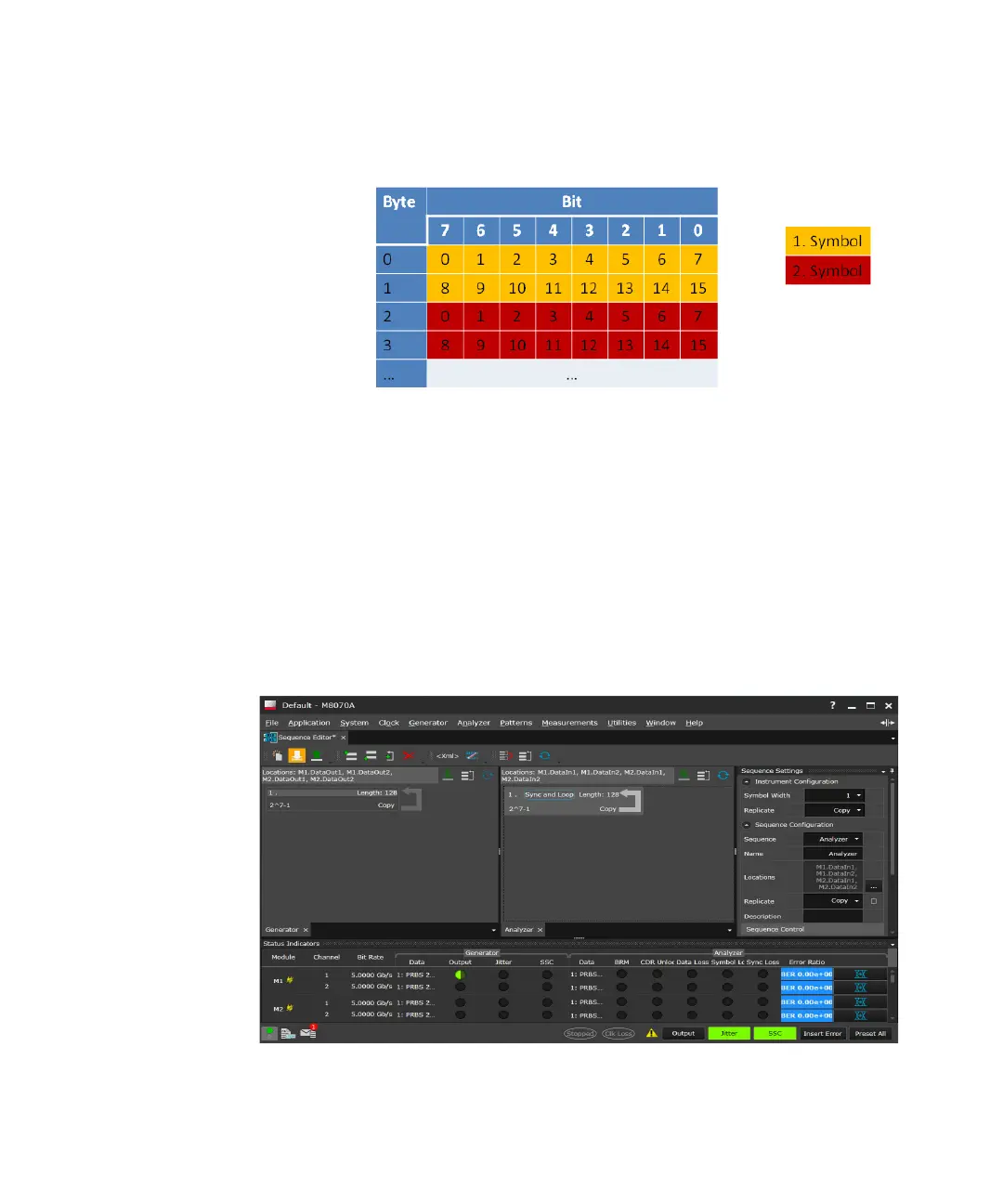

Figure 13 Example 3: 8b10b coding
Creating Pattern Sequences
A pattern sequence is configured using a language. The pattern sequence
language is based on XML.
Sequence Editor
Pattern sequences are created and edited using the Sequence Editor in
the M8070A software interface as shown in Figure 14 on page -43.
Figure 14 Sequence Editor in M8070A software interface
