2 Recommended Programming Techniques
A default “Generator” and “Analyzer” sequence are configured in the
Sequence Editor as shown in Figure 14 on page -43. You can edit these
sequences or create new ones.
As a pattern sequence is being configured, the corresponding XML
elements are generated and can be viewed in the XML editor by clicking
on the <Xml> button shown in Figure 15 on page -44.

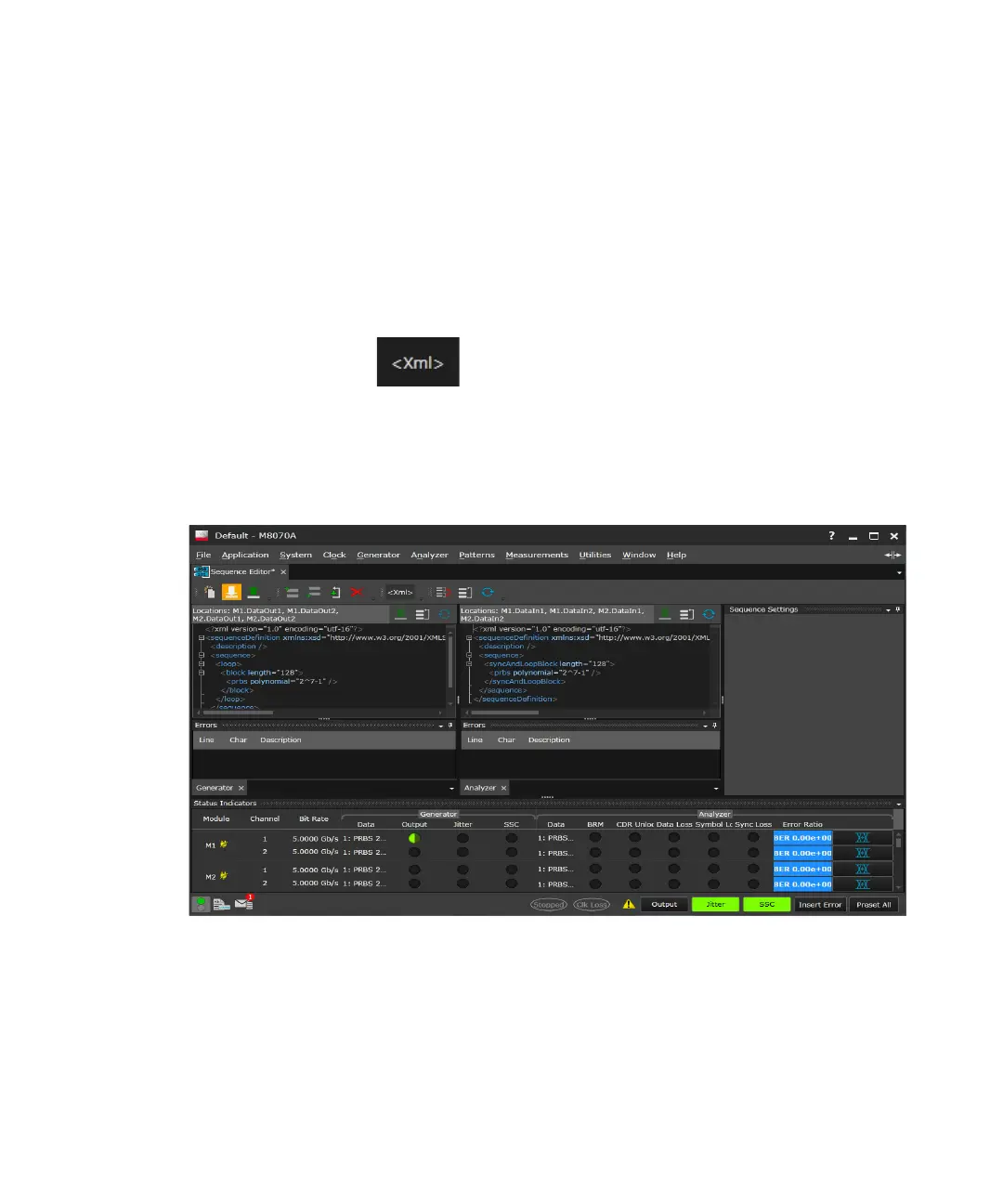

Figure 15 <Xml> button
Figure 16 on page -44 shows the XML elements for the default Generator
and Analyzer. Clicking the UI button will return to the graphical interface.
Figure 16 XML view
In UI view, click in a pattern sequence block to display its sequence
settings as shown in Figure 17 on page -45.
