58 Keysight M8070A Programming Guide
2 Recommended Programming Techniques
Downloading Pattern Sequence to Hardware
Once a sequence has been configured, it is downloaded to the hardware
using the download button in the Sequence Editor shown in Figure 19 on
page -58. When the sequence has been downloaded, this button turns
green.

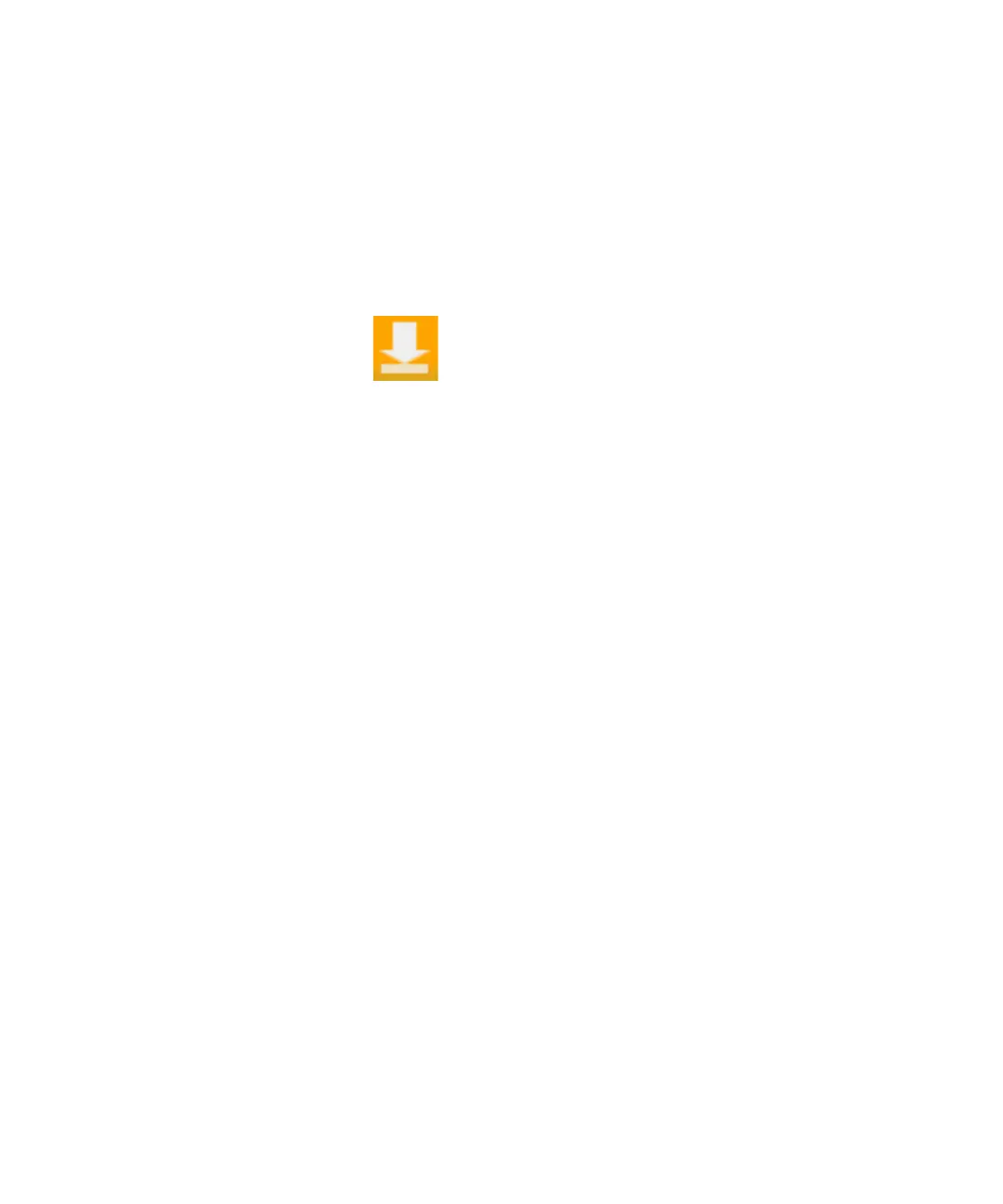

Figure 19 Download button
You can also download the pattern sequence configuration by copying and
pasting the XML elements as a sequence string using the
:DATA:SEQuence:VALue SCPI command. For an example, refer to
:DATA:SEQuence:VALue[?] on page 483.
