Keysight M8070A Programming Guide 45
Recommended Programming Techniques 2

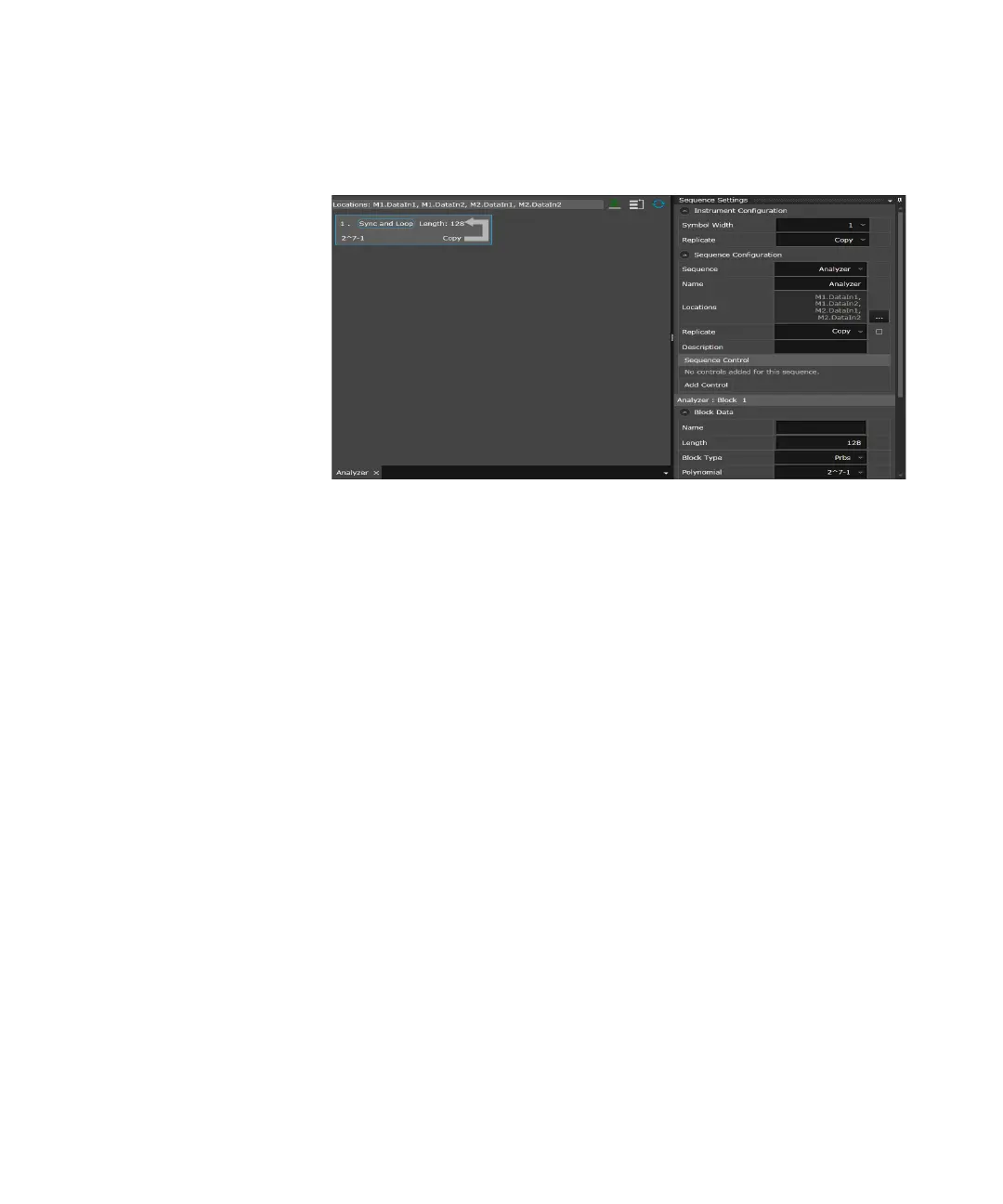

Figure 17 Sequence settings
Pattern Sequence Building Blocks
Minimal Sequence
A minimalistic sequence looks like the following:
<?xml version="1.0" encoding="utf-16"?>
<sequenceDefinition
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:xsd="http://www.w3.org/2001/XMLSchema"
xmlns="http://www.agilent.com/schemas/M8000/DataSequence">
</sequenceDefinition>
This sequence generates a 0 signal to all assigned locations.
Description
To specify a description for the sequence, insert the following:
<description>Default 2^7-1 PRBS Sequence</description>
Version Number
To specify a version number for the sequence syntax, insert the following:
<version>1.0.0</version>
