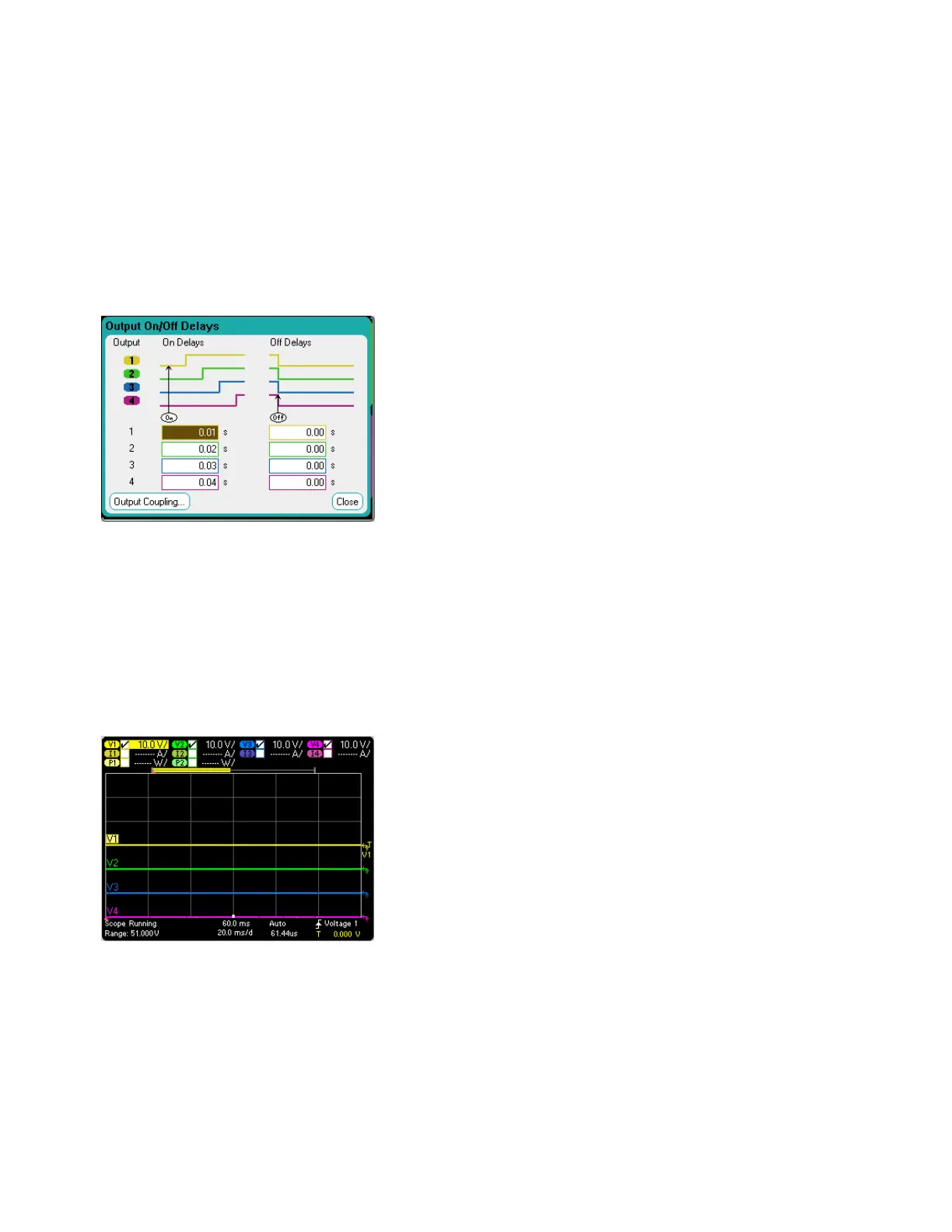

Step 2 – Configure the output turn-on sequence:
Configure the output turn-on sequence as described under Configuring a Turn-On/Turn-Off Sequence.
Note that you will only need to configure the Turn-on delays, not the turn off delays. The turn on
delays for the output channels are as follows:
l Output 1: 10 ms
l Output 2: 20 ms
l Output 3: 30 ms
l Output 4: 40 ms
Step 3 – Configure the Scope View traces:
l Check V1 through V4
l Uncheck I1 through I4
l Use the Vertical Volts/Div. knob to set V1 through V4 to 10 V/Div.
l Use the Offset knob to move the four traces so that they are separated by at least one space on the
vertical grid.
l Use the Horizontal Time/Div. knob to set the timebase to 20 ms.
Step 4 – Configure the Scope properties:
Press the Properties key to configure the scope properties as follows:
l In the Trigger Source dropdown list, select Output On/Off Key.
l In the Mode dropdown list, select Single.
l Select the Horizontal button and make sure that the Horizontal Offset Reference is set to Left.
4 Using the Measurement Functions
134 Keysight N6705C Operating and Service Guide
