Parameter Description
Type Specifies the data type: instrument state or scopedata or Arb sequence.
Path\File Name Specifies a filename in which to save the data.
Internal:\ specifies the instrument’s internal memory.
External:\ specifies the Memory port on the front panel.
Enter a name in the textfield. SeeEnter the File Name.
Browse Lets you browseanother directory or USB memory device.
Save Saves the data to the file name in binary format.
Enter the File Name
Use the navigation keys to scroll to and select the File Name field. Use the alpha/numeric keys to
enter a file name. Alpha keys automatically become active on data entry fields that allow alpha as
well as numeric characters. Repeatedly pressing a key cycles through the choices. This is similar to
the way cell phones work. For example, repeatedly pressing 2 ABC cycles as follows:
a, b, c, A, B, C, 2
After a brief pause, the cursor will accept the displayed character and move one position to the right.
Use Backspace to back up and delete an entry. Use u to enter a space. Press Enter when finished.

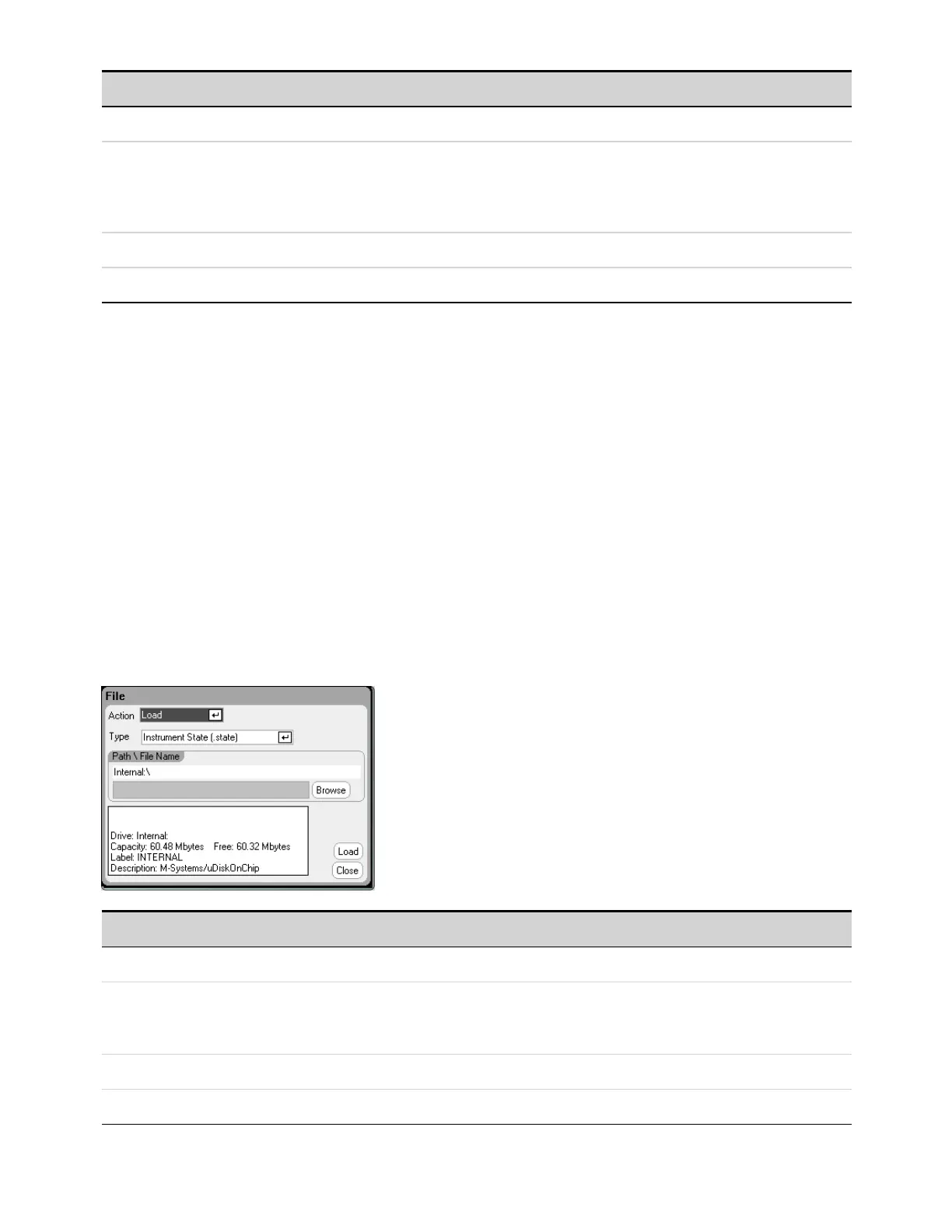

Load Function
To load an instrument state, scope data, logged data, or an Arb sequence, press the File key, then
scroll to and select Load. You can only load binary files. You cannot load data files in .csv format.
Parameter Description
Type Data type: instrument state, scopedata, or logged data, or Arb sequence.
Path\File Name Displays the file where the data is located.
Internal:\ specifies the instrument’s internal memory.
External:\ specifies the Memory port on the front panel.
Browse Lets you browseanother directory or USB memory device.
Save Loads thedatafrom the binary fileinto the instrument.
Keysight N6705C Operating and Service Guide 167
5 Using the System Functions
