To select the trigger source for step 2:
TRIG:ARB:SOUR BUS,2,(@1)
To end the sequence at the last Arb value:
ARB:SEQ:TERM:LAST ON,(@1)
To make the entire sequence repeat twice:
ARB:SEQ:COUN 3,(@1)
To set up the transient trigger system and trigger the sequence:
VOLT:MODE ARB,(@1)
TRIG:ARB:SOUR BUS
OUTP ON,(@1)
INIT:TRAN (@1)
*TRG
Arb Trigger Sources
Specify a Trigger source for the arbitrary waveforms. The same trigger source will be used to trigger all
of the arbitrary waveforms

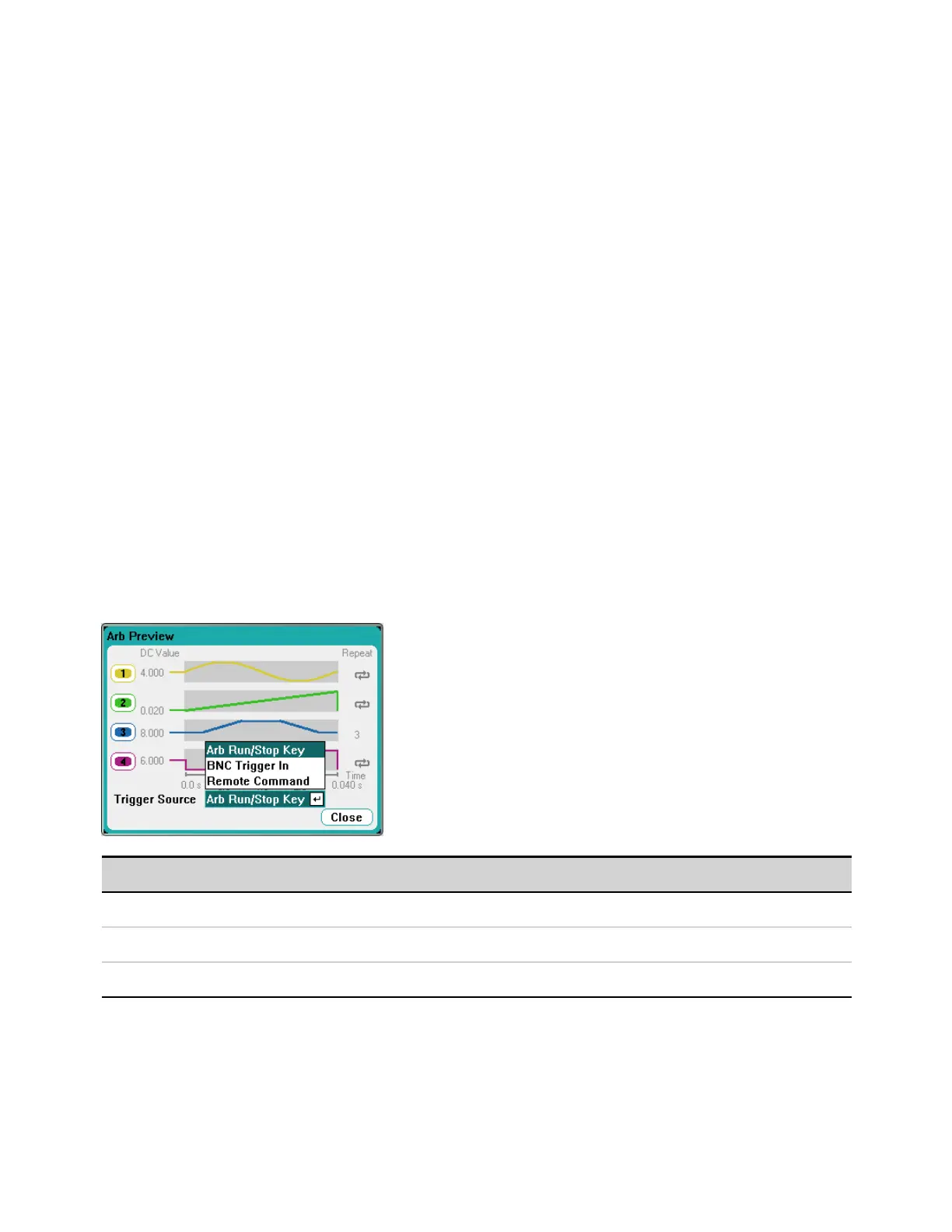

From the front panel: Press the Arb key, then select the Trigger Source field.
Trigger Source Description
Arb Run/Stop Key Thefront panel Run/Stop key.
BNC Trigger In The rear trigger input BNC connector
Remote Command A remote interface command.
From the remote interface:
Select from one of the following SCPI trigger sources:
