Parameter Description
Type Data type: Arb data (user-defined or CD). Data is converted from .csv format to an internal file format.
Output<1-4> Specifies the outputthatwill receive the Arb data.
Path\File Name Specifies a filewhere the data is located.
Internal:\ specifies the instrument’s internal memory.
External:\ specifies the Memory port on the front panel.
Browse Lets you browseanother directory or USB memory device.
Export Imports the .csv data to the file name in .csv format.

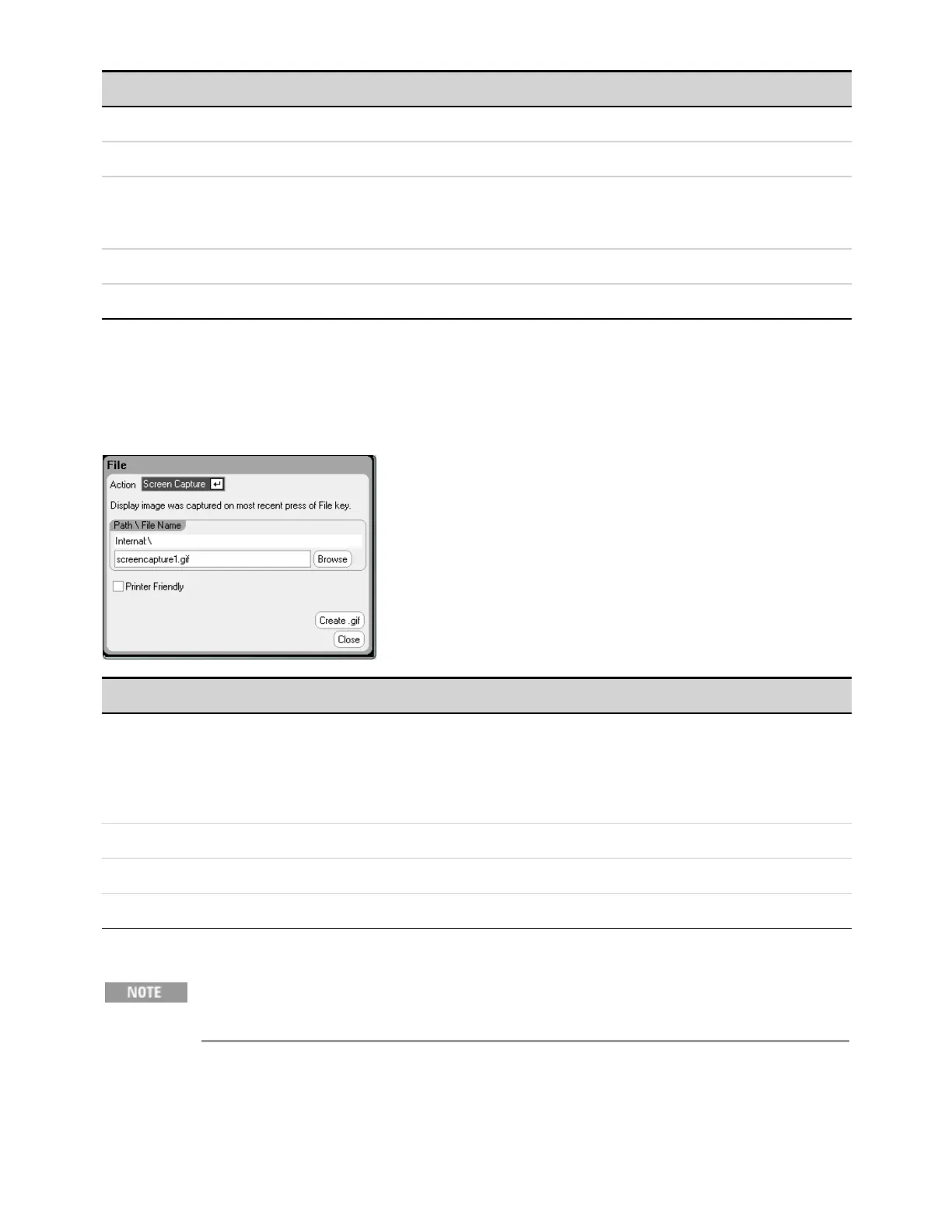

Screen Capture
To capture a screen, press the File key, then scroll and select Screen Capture. This saves the screen
that was active when you pressed File
A copy of the current screen is saved
whenever the File key is pressed.
Parameter Description
Path\File Name Specifies a file name in which to save the image. Screens are saved in .gif format(graphics interchange
format).
Internal:\ specifies the instrument’s internal memory.
External:\ specifies the Memory port on the front panel. Enter a name in the textfield. SeeEnter the File
Name.
Browse Lets you browseanother directory or USB memory device.
Print Friendly Check this box to save Scope View and Data Logger screens with a white instead of a dark background.
Create .gif Saves the image to the specified .gif file.
The time of step 0 is the sum of the Start Time, Top Time and End Time. The default
pacing for sequence steps is Dwell-pacing.
Keysight N6705C Operating and Service Guide 169
