Keysight N6705C - Pulse Parameters

ARB:CURR:EXP:TCON 0.1,(@1)
ARB:VOLT:EXP:TCON 0.1,(@1)

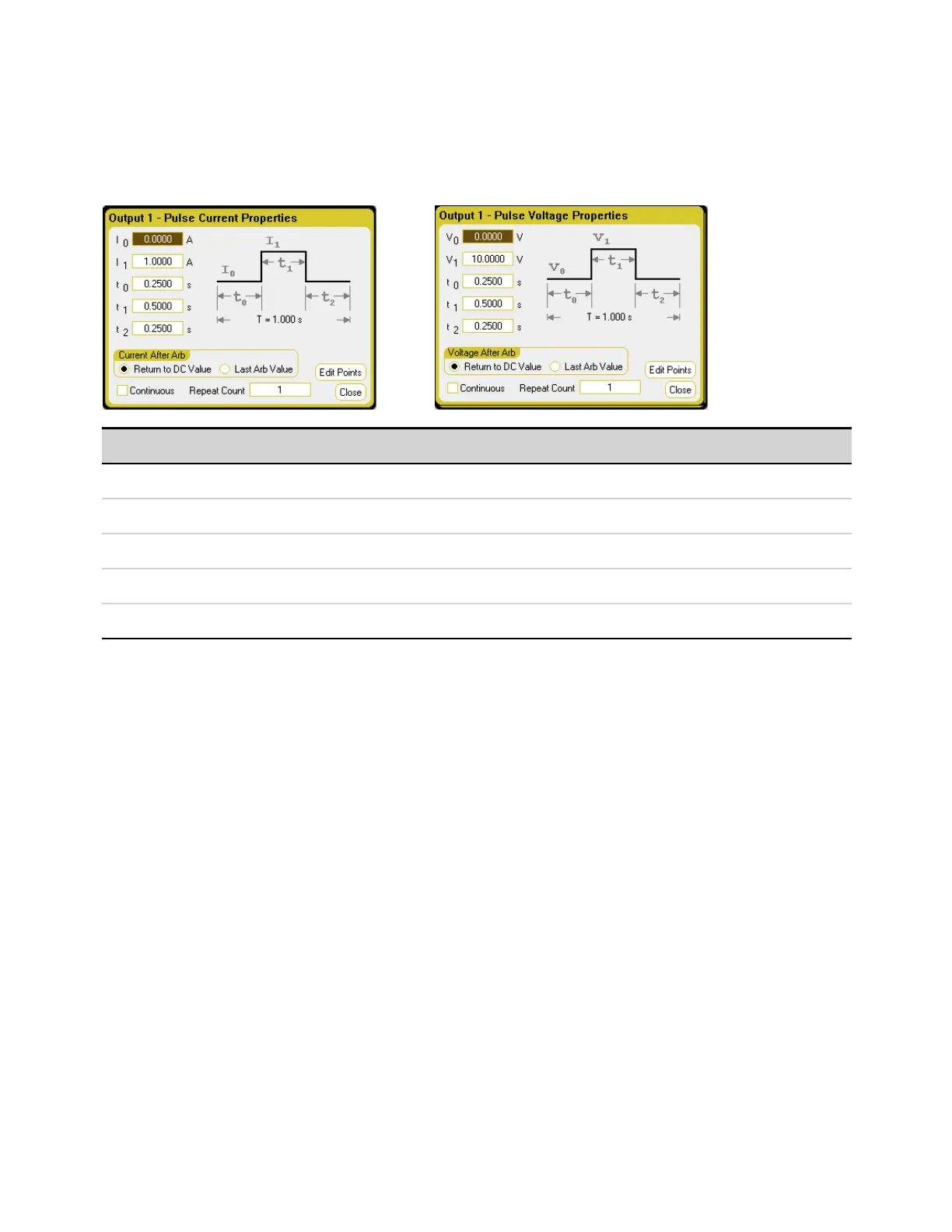

Pulse Parameters
Parameter Description
Start Setting (I
0
or V
0
) The setting before and after the pulse.
Pulse Setting (I
1
or V
1
) The amplitude of the pulse.
Delay (T
0
) The delay after the trigger is received but before the pulse starts.
Pulse Width (T
1
) The width of the pulse.
End Time (T
2
) The time the outputremains at the end setting after the pulse completes.
From the remote interface:
The setting before and after the pulse:
ARB:CURR:PULS:STAR 0,(@1)
ARB:VOLT:PULS:STAR 0,(@1)
The amplitude of the pulse:
ARB:CURR:PULS:TOP 1,(@1)
ARB:VOLT:PULS:TOP 10,(@1)
The delay after the trigger is received but before the pulse starts:
ARB:CURR:PULS:STAR:TIM 0.25,(@1)
ARB:VOLT:PULS:STAR:TIM 0.25,(@1)
The width of the pulse:
ARB:CURR:PULS:TOP:TIM 0.5,(@1)
ARB:VOLT:PULS:TOP:TIM 0.5,(@1)
The time the output remains at the end setting after the pulse:
ARB:CURR:PULS:END:TIM 0.25,(@1)
ARB:VOLT:PULS:END:TIM 0.25,(@1)
3 Using the Source Functions
112 Keysight N6705C Operating and Service Guide
