Step 3. Finish the installation.
Place any unused cable harnesses in the clip ring located between the power modules and the front
panel. Install the top and bottom covers. Push the covers into place and tighten the thumbscrews.

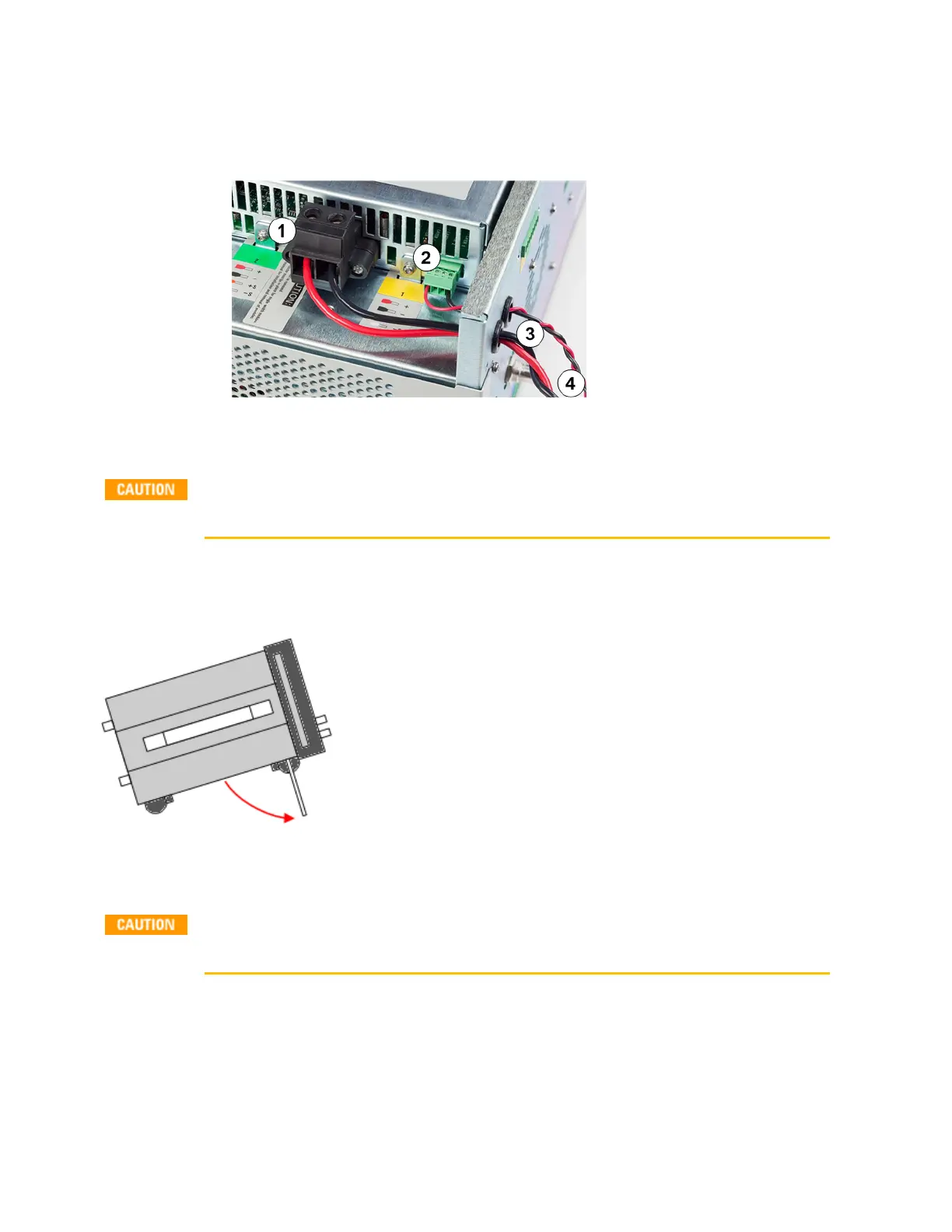

1. 50 A output
connector
2. Sense
connector
3. Twist leads
4. To load
Bench Installation
Do not block the air intake and exhaust at the sides, or the exhaust at the rear of the
unit. Refer to the dimension diagram in the Specifications section.
Minimum clearances for bench operation are 2 inches (51 mm) along the sides and back. For easier
display viewing and binding post access, you can tilt the front of the unit up by rotating the extension
bar down.
Rack Installation
Use Rack Mount kit (Option 908 or Option 909 with handles) to rack mount the
instrument. Installation instructions are provided with the rack mount kit
Power analyzer mainframes can be mounted in a 19-inch EIA rack cabinet. They are designed to fit in
four rack-units (4U) of space.
Remove the feet before rack mounting the unit. Do not block the air intake and exhausts at the sides
and rear of the unit.
