Common Parameters

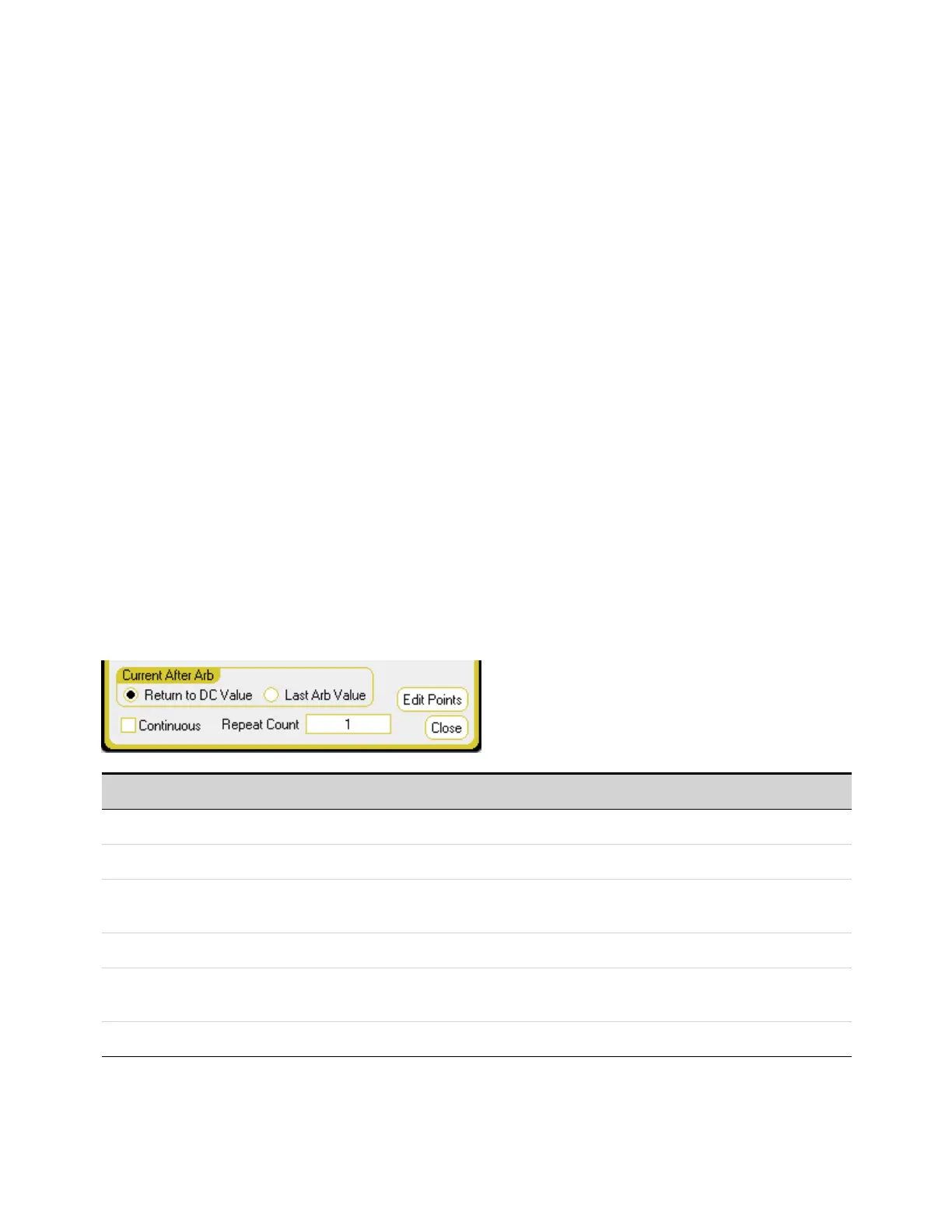

The following properties are common to most Arb functions:
Parameter Description
Return to DC Value The parameter setting returns to the DC value that was in effectprior to the Arb.
Last Arb Value The parameter setting remains atthelast Arb value after the Arb completes.
Edit Points Create a user-defined Arb from the present Arb property values. This lets you edit specific points in the
standard arbitrary waveform.
Continuous Check to repeatthe Arb continuously.
Repeat Count The number of times the Arb repeats. Except for CD Arbs, the maximum repeat count is about 16 million.
The maximum repeat countfor voltageand current CD Arbs is 256.
Close Saves and closes the Properties window.
From the remote interface:
The parameter setting returns to the DC value that was in effect prior to the Arb.
