Ramp
Back to Arb Commands

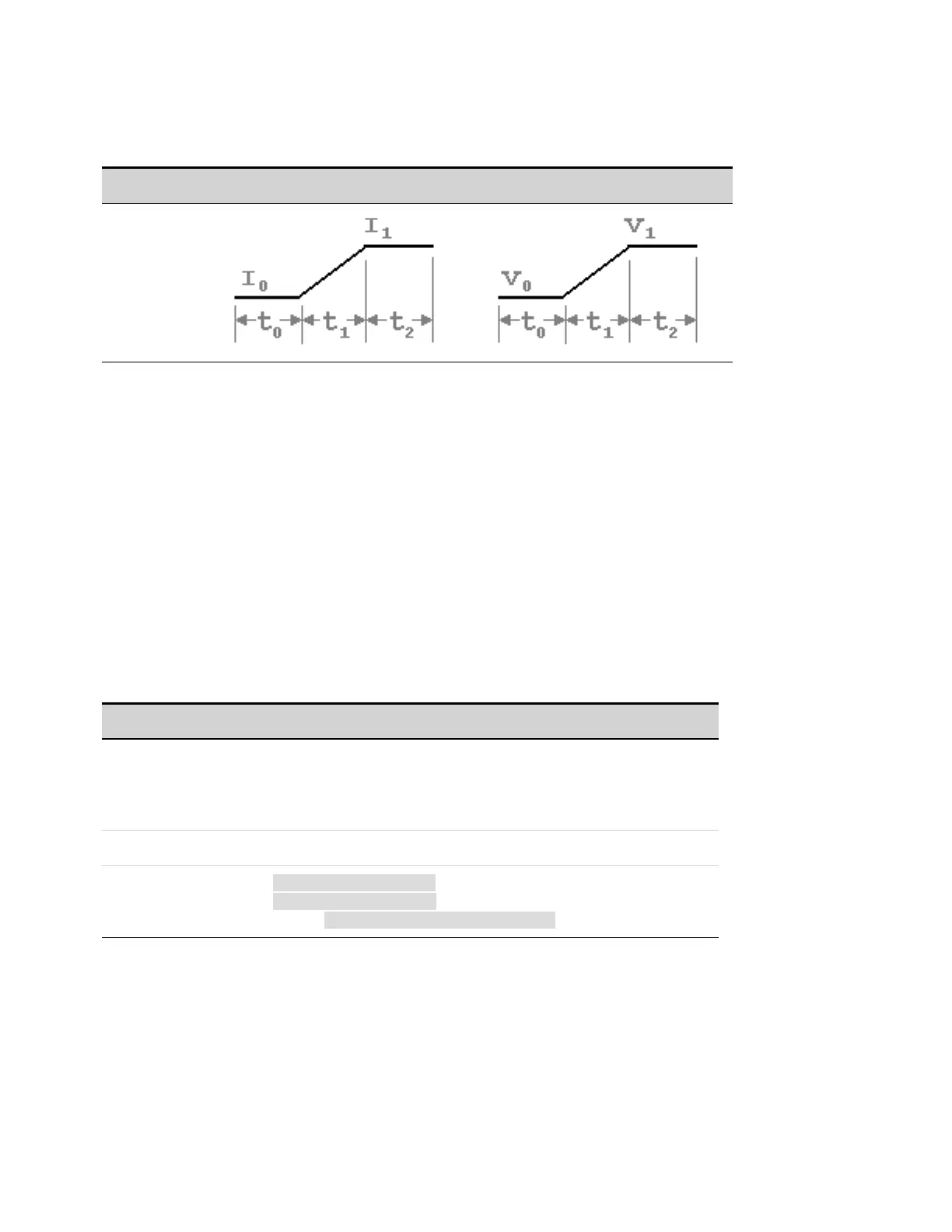

Arb Type Current Voltage
Ramp
[SOURce:]ARB:CURRent:RAMP:END[:LEVel] <value>, (@<chanlist>)
[SOURce:]ARB:CURRent:RAMP:END[:LEVel]? [MIN|MAX,] (@<chanlist>)
[SOURce:]ARB:VOLTage:RAMP:END[:LEVel] <value>, (@<chanlist>)
[SOURce:]ARB:VOLTage:RAMP:END[:LEVel]? [MIN|MAX,] (@<chanlist>)
Specifies the ending current or voltage level after the ramp occurs. Referenced to I1 and V1 in the
Ramp diagrams.
[SOURce:]ARB:SEQuence:STEP:CURRent:RAMP:END[:LEVel] <value>, <step#>, (@<chanlist>)
[SOURce:]ARB:SEQuence:STEP:CURRent:RAMP:END[:LEVel]? [MIN|MAX,] <step#>, (@<chanlist>)
[SOURce:]ARB:SEQuence:STEP:VOLTage:RAMP:END[:LEVel] <value>, <step#>, (@<chanlist>)
[SOURce:]ARB:SEQuence:STEP:VOLTage:RAMP:END[:LEVel]? [MIN|MAX,] <step#>, (@<chanlist>)
Specifies the ending current or voltage level after the ramp occurs for Arb sequence steps.
Parameter Typical Return
Current: 0 - maximum|MIN|MAX, *RST MIN
Voltage: 0 - maximum|MIN|MAX, *RST MIN
The maximum value varies, depending on the currentor voltage
rating of the power module.
<end value>
Step 0 - 99, *RST 0 (none)
Programs an end level current: ARB:CURR:RAMP:END 2,(@1)
Programs an end level voltage: ARB:VOLT:RAMP:END 20,(@1)
Programs an end level current for step 0: ARB:SEQ:STEP:CURR:RAMP:END 2, 0,(@1)
[SOURce:]ARB:CURRent:RAMP:END:TIMe <value>, (@<chanlist>)
[SOURce:]ARB:CURRent:RAMP:END:TIMe? [MIN|MAX,] (@<chanlist>)
[SOURce:]ARB:VOLTage:RAMP:END:TIMe<value>, (@<chanlist>)
[SOURce:]ARB:VOLTage:RAMP:END:TIMe? [MIN|MAX,] (@<chanlist>)
Specifies the time in seconds, after the ramp completes, that the ending current or voltage level
persists. Referenced to t2 in the Ramp diagrams.
7 SCPI Programming Reference
244 Keysight N6705C Operating and Service Guide
