Keysight N6705C - Page 238

Exponential
Back to Arb Commands

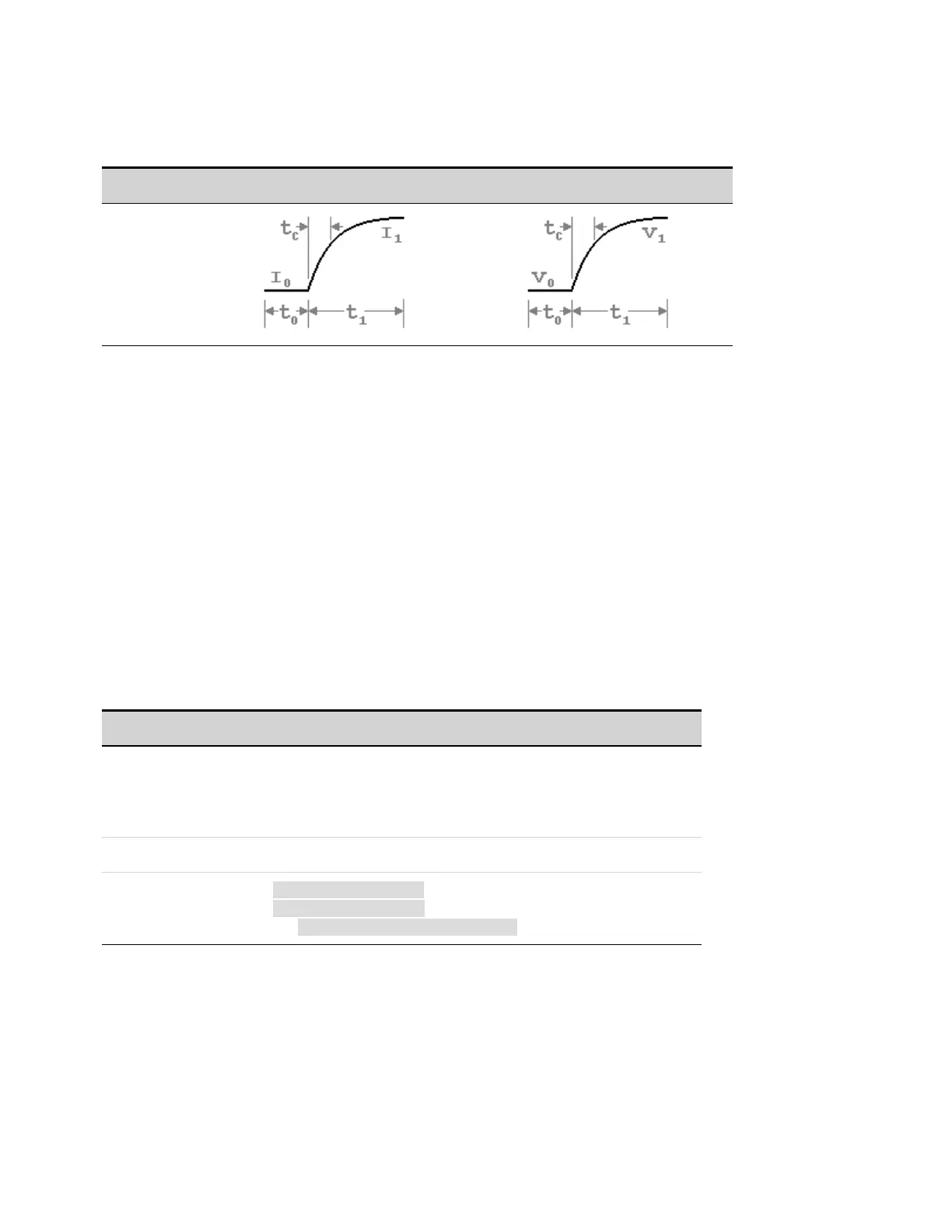

Arb Type Current Voltage
Exponential
[SOURce:]ARB:CURRent:EXPonential:END[:LEVel] <value>, (@<chanlist>)
[SOURce:]ARB:CURRent:EXPonential:END[:LEVel]? [MIN|MAX,] (@<chanlist>)
[SOURce:]ARB:VOLTage:EXPonential:END[:LEVel] <value>, (@<chanlist>)
[SOURce:]ARB:VOLTage:EXPonential:END[:LEVel]? [MIN|MAX,] (@<chanlist>)
Specifies the ending current or voltage level after the exponential waveform ends. Referenced to I1
and V1 in the Exponential diagrams.
[SOURce:]ARB:SEQuence:STEP:CURRent:EXPonential:END[:LEVel] <value>, <step#>, (@<chanlist>)
[SOURce:]ARB:SEQuence:STEP:CURRent:EXPonential:END[:LEVel]? [MIN|MAX,] <step#>, (@<chanlist>)
[SOURce:]ARB:SEQuence:STEP:VOLTage:EXPonential:END[:LEVel] <value>, <step#>, (@<chanlist>)
[SOURce:]ARB:SEQuence:STEP:VOLTage:EXPonential:END[:LEVel]? [MIN|MAX,] <step#>, (@<chanlist>)
Specifies the ending current or voltage level after the exponential waveform ends for Arb sequence
steps.
Parameter Typical Return
Current: 0 - maximum|MIN|MAX, *RST MIN
Voltage: 0 - maximum|MIN|MAX, *RST MIN
The maximum value varies, depending on the currentor voltage
rating of the power module.
<end value>
Step 0 - 99, *RST 0 (none)
Programs an end level current: ARB:CURR:EXP:END 1,(@1)
Programs an end level voltage: ARB:VOLT:EXP:END 20,(@1)
Programs an end currentfor step 0: ARB:SEQ:STEP:CURR:EXP:END 1, 0,(@1)
[SOURce:]ARB:CURRent:EXPonential:STARt[:LEVel] <value>, (@<chanlist>)
[SOURce:]ARB:CURRent:EXPonential:STARt[:LEVel]? [MIN|MAX,] (@<chanlist>)
[SOURce:]ARB:VOLTage:EXPonential:STARt[:LEVel] <value>, (@<chanlist>)
[SOURce:]ARB:VOLTage:EXPonential:STARt[:LEVel]? [MIN|MAX,] (@<chanlist>)
Specifies the initial current or voltage level when the exponential waveform starts. Referenced to I0
and V0 in the Exponential diagrams.
7 SCPI Programming Reference
238 Keysight N6705C Operating and Service Guide
