Step 4 – Turn on output 1, start the Arb, and log the data:
Press the Data Logger key to return the display to the data logger view:
l Press the Output 1 On key to turn on output 1.
l Press the Run/Stop key to run the data logger. When this key is lit, the data logger is initiated and the
output 1 trace is displayed on the screen.
l Press the Arb Run/Stop key to start the user-defined Arb and trigger the data logger.

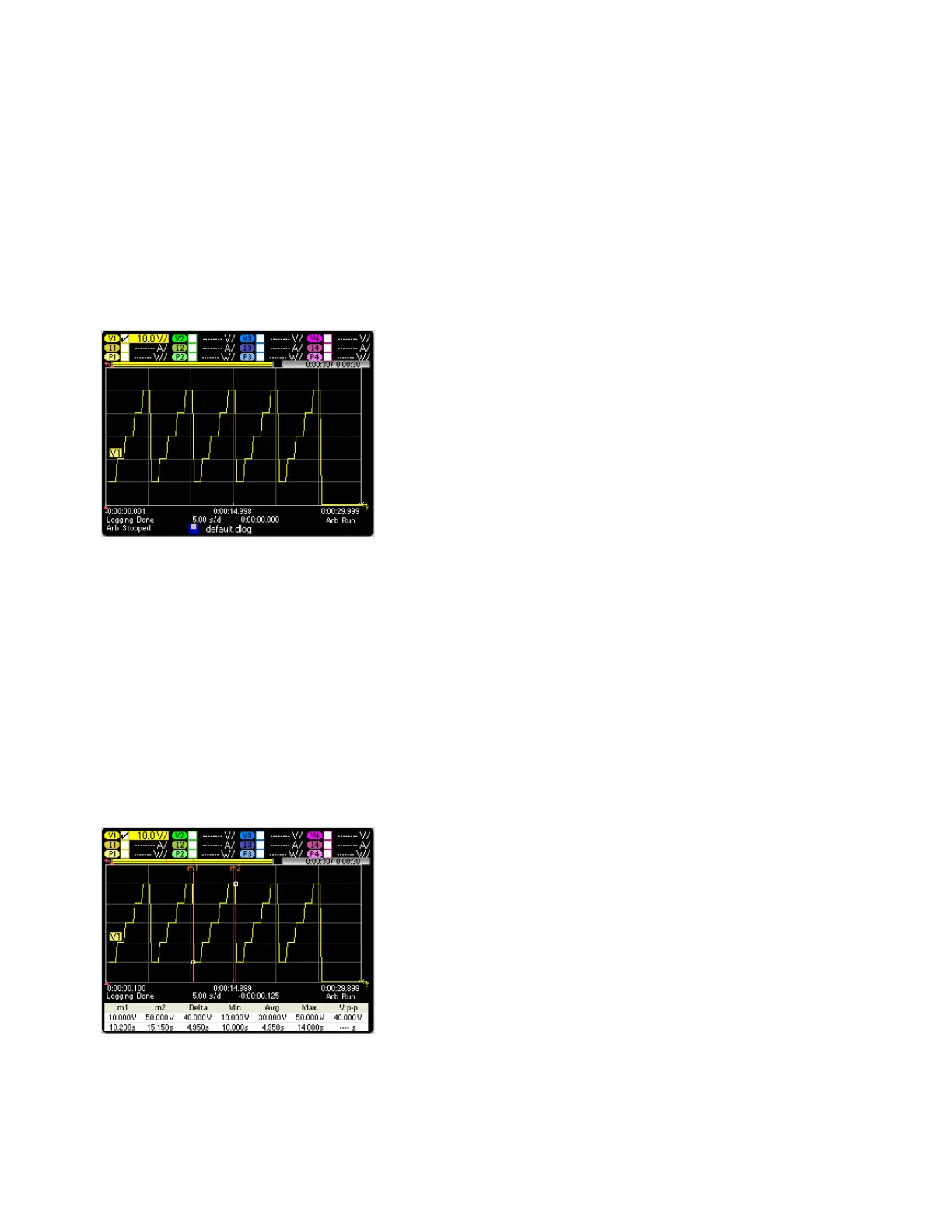

The data logger will run for 30 seconds and log the voltage data from output 1. When the data log
completes, you should see the output waveform displayed as follows:
A message will indicate that the logged data has been saved in a file named default.dlog. If you wish
to save the data under a different filename, you must specify the filename before the data logger runs.
Select the Filename button located in the Datalogger Properties dialog to specify a filename.
Step 5 – Use the marker controls to measure the logged data:
Press the Data Logger key to display the marker controls.
l Use the marker 1 and Marker 2 knobs to move the markers along the voltage trace. Measurements
between the markers are displayed on the bottom of the display.
l You can also use the Vertical Volts/Div knob and the Horizontal Time/Div knob to zoom in on any por-
tion of the logged data.
From the remote interface:
To program a User-defined voltage waveform of five steps on output 1:
4 Using the Measurement Functions
146 Keysight N6705C Operating and Service Guide
