202 Keysight Technologies N9040B UXA Signal Analyzer Service Guide
Analog/Digital IF Troubleshooting
A3 Digital IF Troubleshooting
13.The analyzer should read 22.5 MHz at −25 dBm ± 4 dB as shown in Figure
6-8.

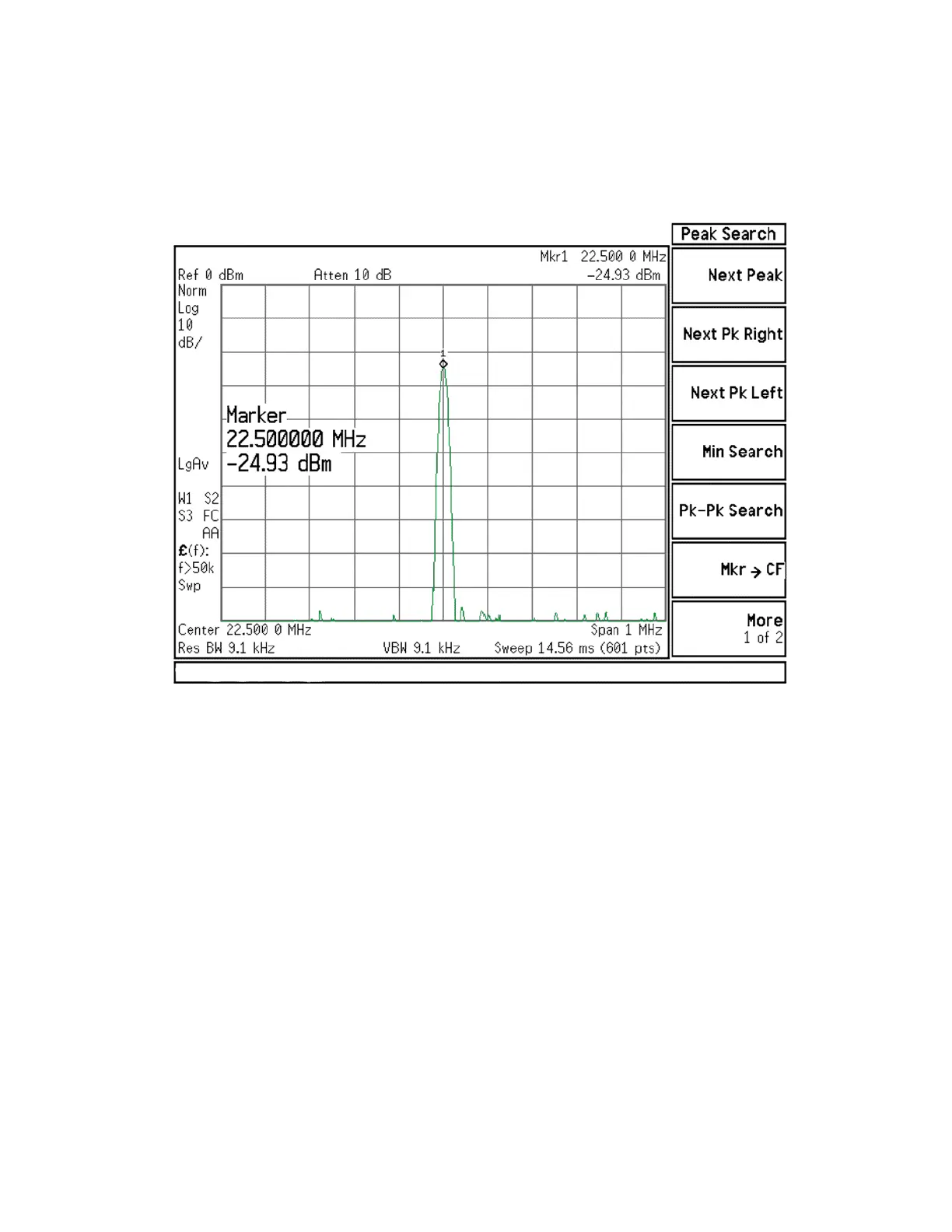

Figure 6-8 22.5 MHz IF Input
14.If the 22.5 MHz signal is not measuring the correct power level, see “A2
Analog IF Troubleshooting” on page 190 in this service guide.
15.If the 22.5 MHz signal is within tolerance, carefully reconnect the W42
cable to A3J19.
