318 Keysight Technologies N9040B UXA Signal Analyzer Service Guide
Replaceable Parts
RF Area Cables (Options 544, 550)

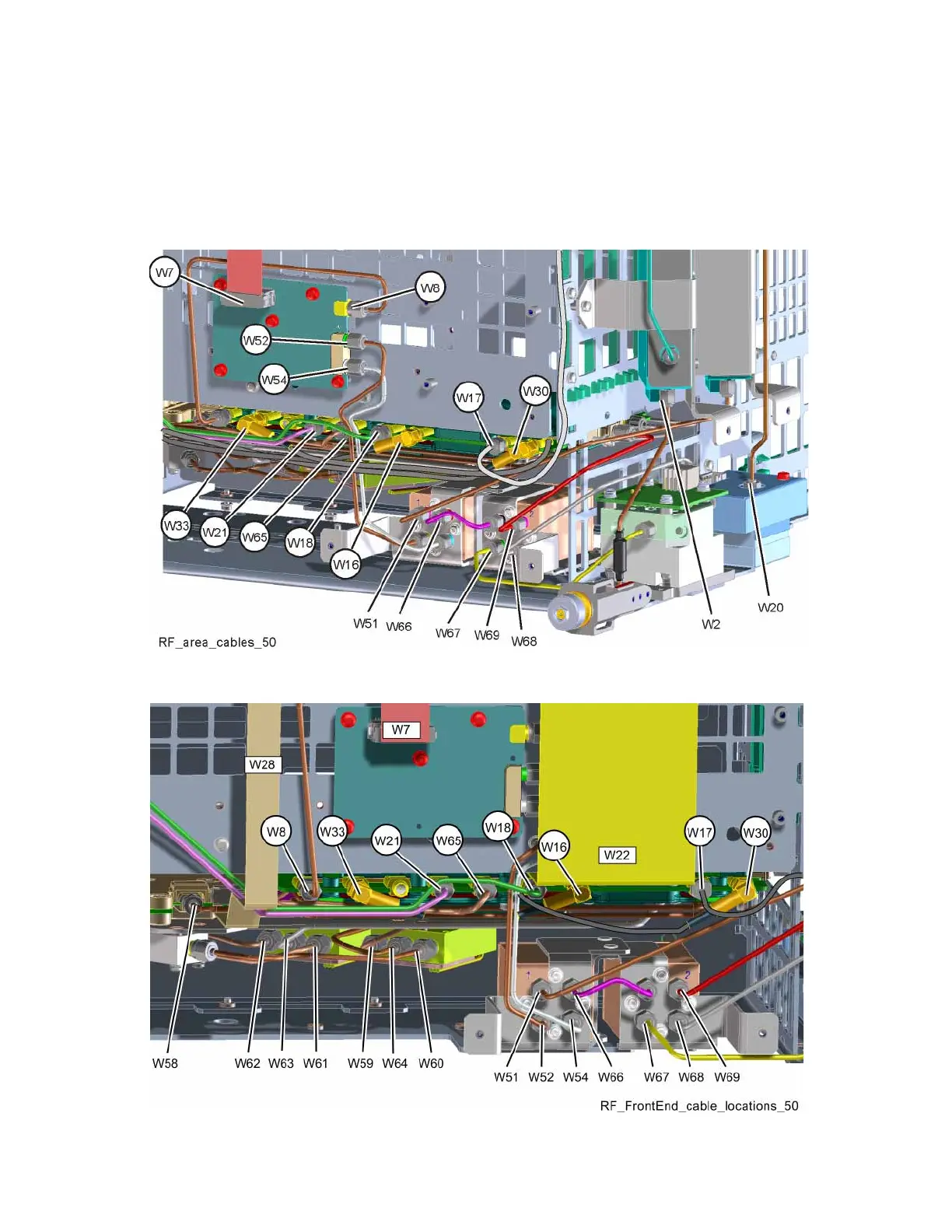

Refer to Figure 14-11 through Figure 14-13 for locations of RF area cables for
Options 544 and 550.
Figure 14-11 RF Area Cables (Options 544, 550)
Figure 14-12 RF Front End Cables (Options 544, 550) (Option B5X shown)
