Keysight N9040B Option 508 User Manual

Keysight Technologies N9040B UXA Signal Analyzer Service Guide 421
Assembly Replacement Procedures
Rear Panel
Serial Number Prefix ≥ 5616
4. Refer to Figure 15-72. Remove the fifteen screws (1) (0515-0372), the
four screws (2) (0515-1946), and the eight screws (3) (0515-0433). The
rear panel can now be removed from the chassis.

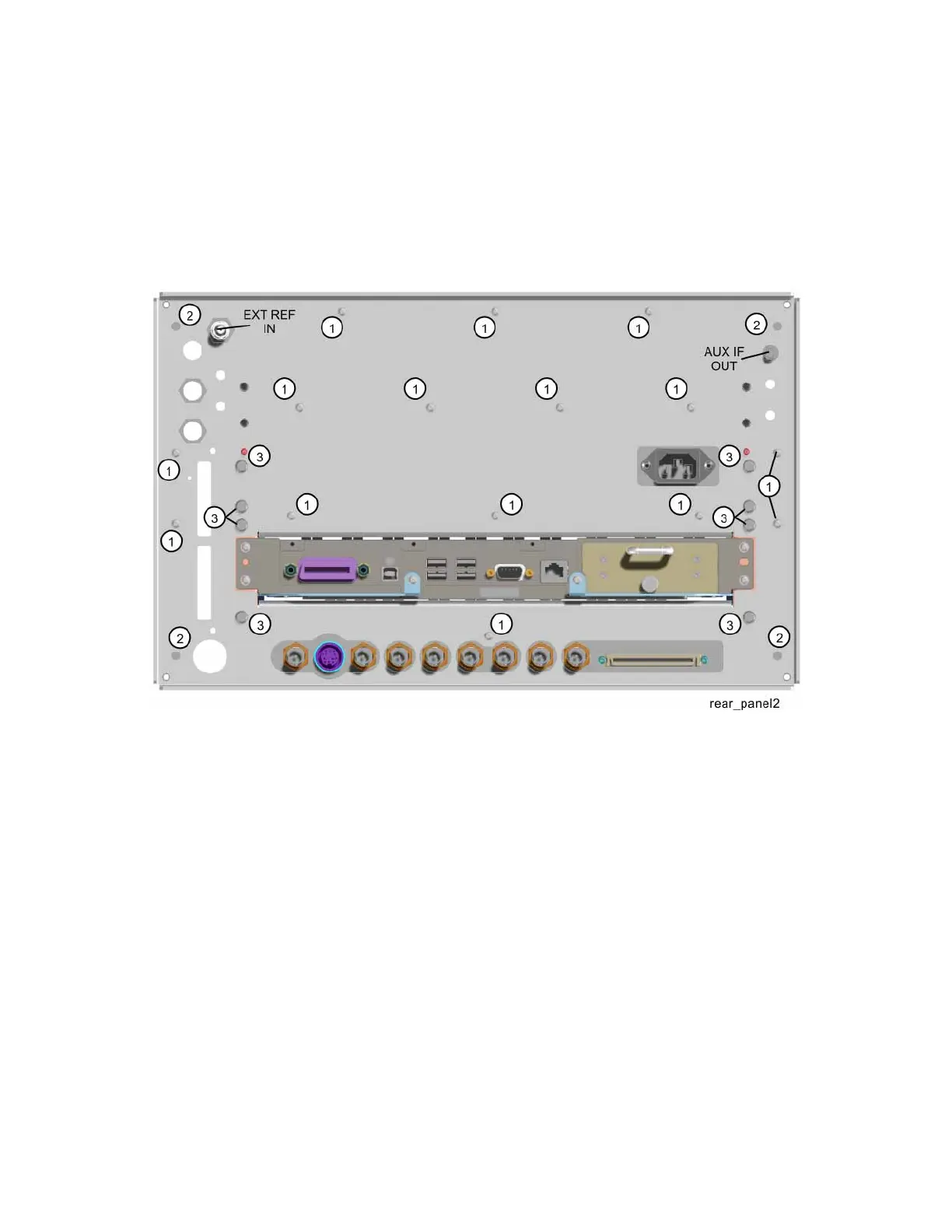

Figure 15-72 Rear Panel Screw Locations
Serial Number Prefix ≥ 5616
