478 Keysight Technologies N9040B UXA Signal Analyzer Service Guide
Assembly Replacement Procedures
Front Frame Assembly
DC DC Converter Board

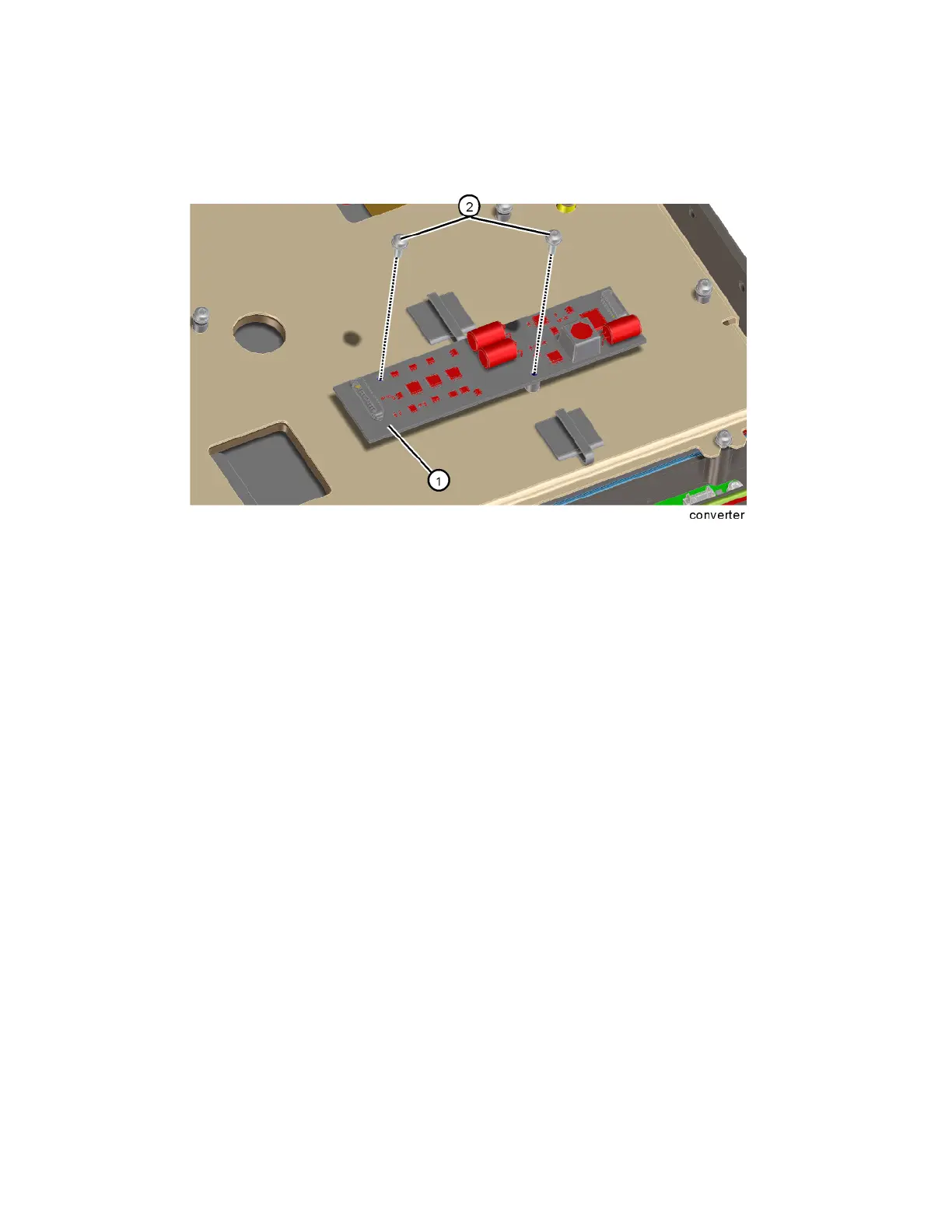

Figure 15-121 DC DC Converter Board
1. Refer to Figure 15-121. To remove the DC DC converter board (1), remove
the two screws (2) (0515-0372).
2. When replacing the board, torque the screws to 9 inch-pounds.
