Panel System - Gallery Panel Installation
Assembly Instructions
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
End-of-Run Dual-Sided
Two-Piece Gallery Panel
Installation (cont.)
Note: Two-piece gallery panels
join together using female
gangers in one panel end, and
male gangers in the other panel
end where they join.

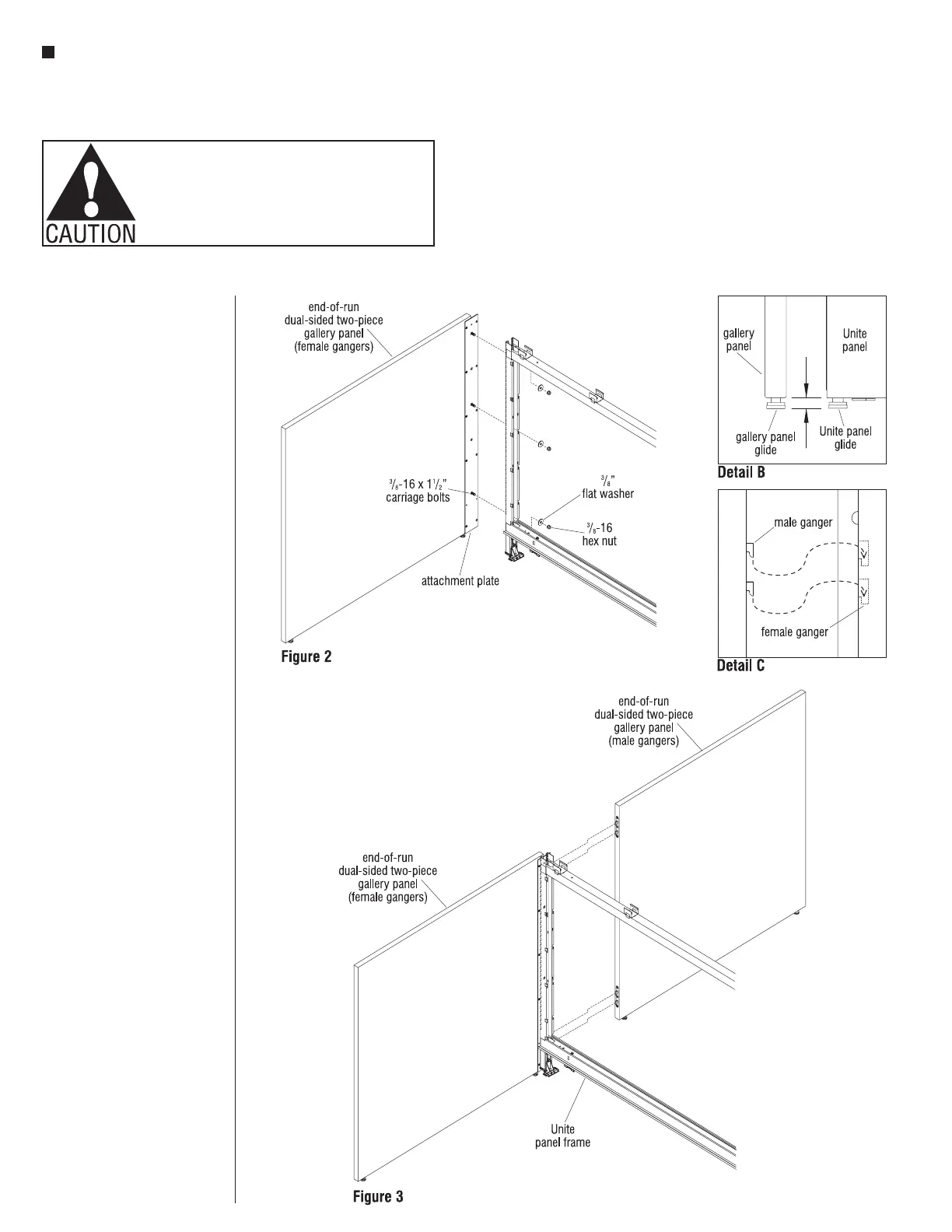

4. Locate the two-piece gallery
panel with female gangers first,
and tip it onto its glides. Then,
align the three carriage bolts with
the holes on the vertical post of
the Unite panel frame. Insert the
bolts through the Unite frame
and install
3
/
8
” washers and nuts
loosely to each bolt. Adjust the
glide from the bottom edge of the
gallery panel the same distance.
Tighten the
3
/
8
" nuts so the Unite
panel and gallery panel are
secure (Figure 2 & Detail B).
5. Next, locate the two-piece gallery
panel with male gangers. With
two people, position the second
panel in-line with the mounted
gallery panel. Lift the second
gallery panel such that the male
ganger hooks of each cleat-set
insert into the slots of the
mounted two-piece female gallery
panel. Allow the male ganged
panel to drop down and snug-up
against the female ganged panel
(Figure 3 & Detail C).
6. Adjust the glides of the second
gallery panel so that the bottom
and top of both gallery panels are
flush. A light tap from a rubber
mallet on top of the gallery panel
may be required (Detail C).
