Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Unite
®
Panel System - Stacking Sections Assembly
Assembly Instructions
Stacking Sections (aluminum
frame) - End-of-Run & Change-
of-Height In-Line Metal Spacer
Installation
1. Stacking sections at end-of-run
or at change-of-height in-line
configurations, require a metal
spacer and screw to secure the
end top frame to the end vertical
stacking post. Position and hold
one metal spacer between the
top vertical member of the end
vertical post and the top frame.
Align the mounting holes of both,
then insert and tighten one
1
/
4
-20 x
1
/
2
” pan-head tapping
screw (Figure 7 & Detail E).

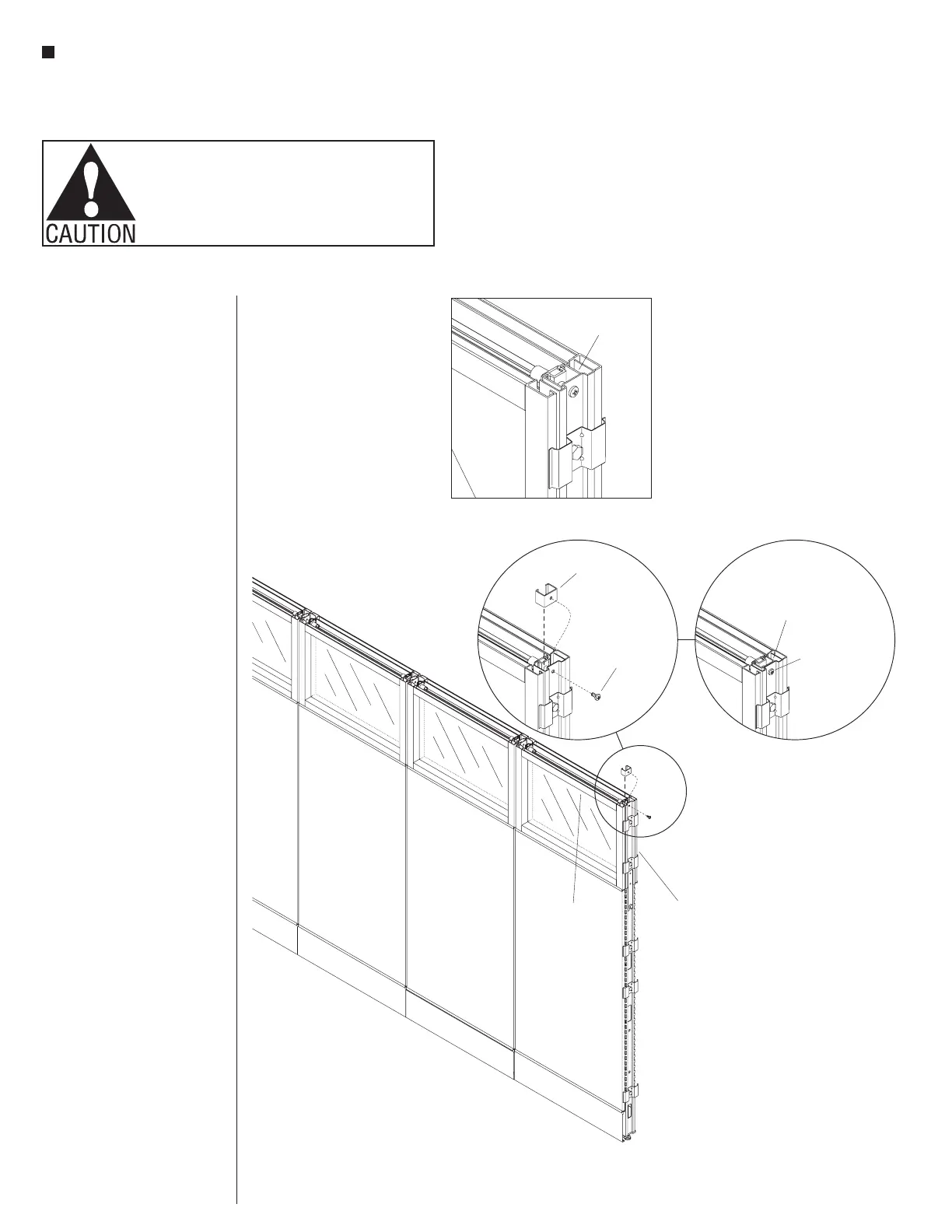

Figure
7-Stacking Sections (aluminum frame) - End-of-Run,
Metal Spacer Installation
vertical
stacking posts
stacking
panel section
metal
spacer
11
/ -20 x /”
pan-head tapping
screw
42
metal
spacer
11
/ -20 x /”
pan-head tapping
screw
42
Detail E
metal
spacer
