9
ASSEMBLY INFORMATION
EN 112

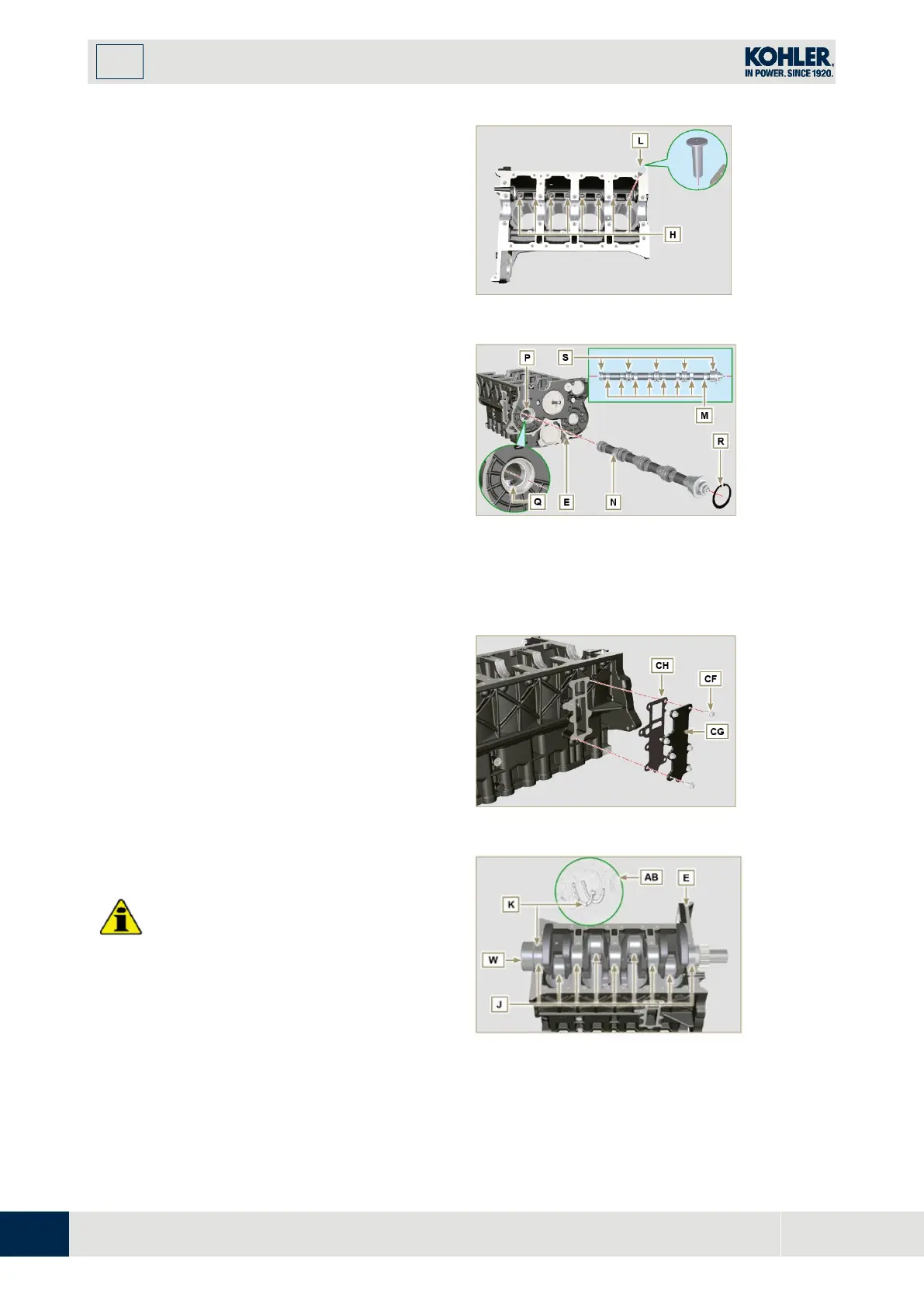

9.3.2 Tappets
1.
Lubricate the tappets G with oil.
2.
Insert the tappets G into the housings H
of the upper crankcase.
Fig 9.3
9.3.3 Camshaft
1.
Check that the bushing Q is correctly
fitted.
2.
Lubricate the pins L, the cams M of the
camshaft N, all the housing P and the
bushing Q with oil.
3.
Insert the camshaft N all the way into its
housing P.
4.
Fit the lock ring R on to the crankcase E
to hold the position of the camshaft N.
5.
Manually rotate the camshaft N ensuring
that it is free.
Fig 9.4
9.3.4 Vent compartment closure lid
1.
With the screws CF tighten the cover CG
and the gasket CH (tightening torque to
10 Nm).
Fig 9.5
9.3.5 Crankshaft
Important
•
Carry out the checks described in Par.
8.4.1 and Par. 8.4.2.
1.
Check that the crankshaft half-bearings
are mounted correctly on the upper
crankcase E.
2.
Lubricate the main journal and crankpin J,
with oil.
3.
Insert the crankshaft W into its seat on the
upper crankcase E.
Fig 9.6
