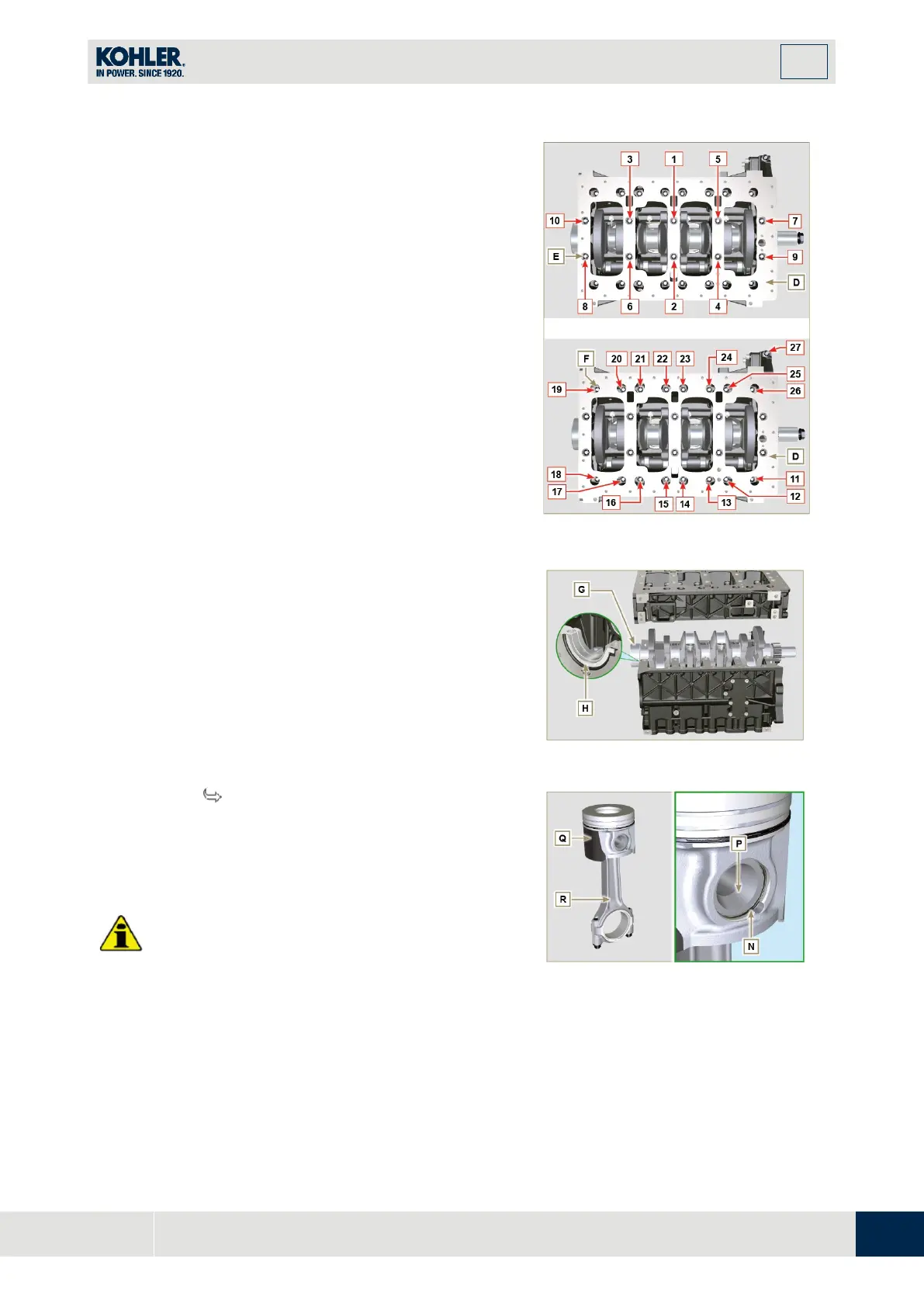

INFORMATION FOR DISASSEMBLY
7
91
EN
4
CYLINDERS
1.
Undo capscrews E and F by following the orde
r
i
ndicated in the figure.
2.
Remove the lower semi-crankcase D and store it in
a suitable container for washing.
Fig 7.50
7.13.4 Crankshaft
Re
move:
1.
Crankshaft G.
2.
The four shoulder semi-rings H.
1.
R
emove the retainer ring N.
2.
Remove the pin P to separate the piston Q from the
connecting rod R.
I
mportant
•
If they are not replaced, keep the components
together (connecting rod - piston - gudgeon pin) by
using references in order to prevent them from
getting mixed up during assembly.
Fig 7.52
