ASSEMBLY INFORMATION
EN 122
5.
Remove the two studs ST_18 with the appropriate
screws (tightening torque 25 Nm)
6.
After tightening all of the screws, loosen screw n°1 an
d
r
etighten it to the torque value specified in step 4.
7.
Check that the oil drain plugs M are tight (tightening
torque 35 Nm).

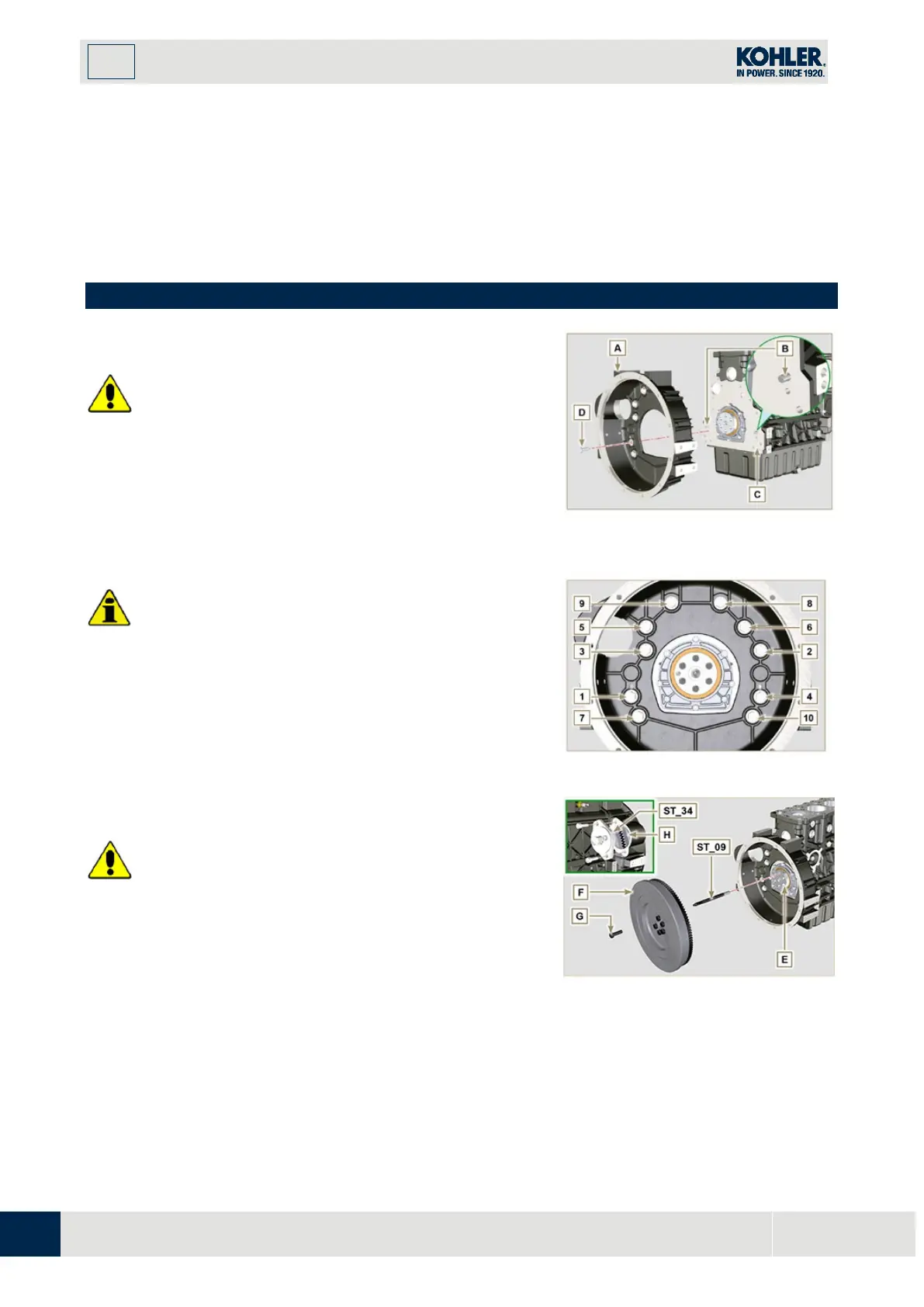

Fig 9.26
9.5 Flange unit assembly
9.5.1 Bell housing
Danger
•
Bell A is very heavy; pay special attention during
assembly operations to avoid dropping and causin
g
serious risks to the operator.
1.
Install the bell housing A in accordance with th
e
r
eference pins B on the base C.
Fig 9.27
Important
•
Failure to adhere to the assembly procedures may
compromise the functionality of the engine, and also
cause damage to persons and property.
2.
Tighten the fastening screws D strictly following the
tightening sequence indicated (tightening torque 50 Nm).
Fig 9.28
9.5.2 Flywheel
Danger
•
Flywheel F is very heavy; pay special attention during
assembly operations to avoid dropping and causing
s
erious risks to the operator.
1.
Screw the special tool ST_09 on the crankshaft E
instead of the screws G positioned higherup (Fig. 9.29).
2.
Insert the flywheel F on the crankshaft E using the tool
as a guide ST_09 and manually tighten all the screws G
(the last screw is fitted in the place of the tool ST_09).
3.
Mount the tool ST_34 in the seat of the starter motor H
and fit it with the two starter motor fixing screws.
4.
Tighten the screws G (tightening torque at 140 Nm).
Fig 9.29
