Kohler KDI 2504TM Workshop Manual

7
INFORMATION FOR DISASSEMBLY
EN 90

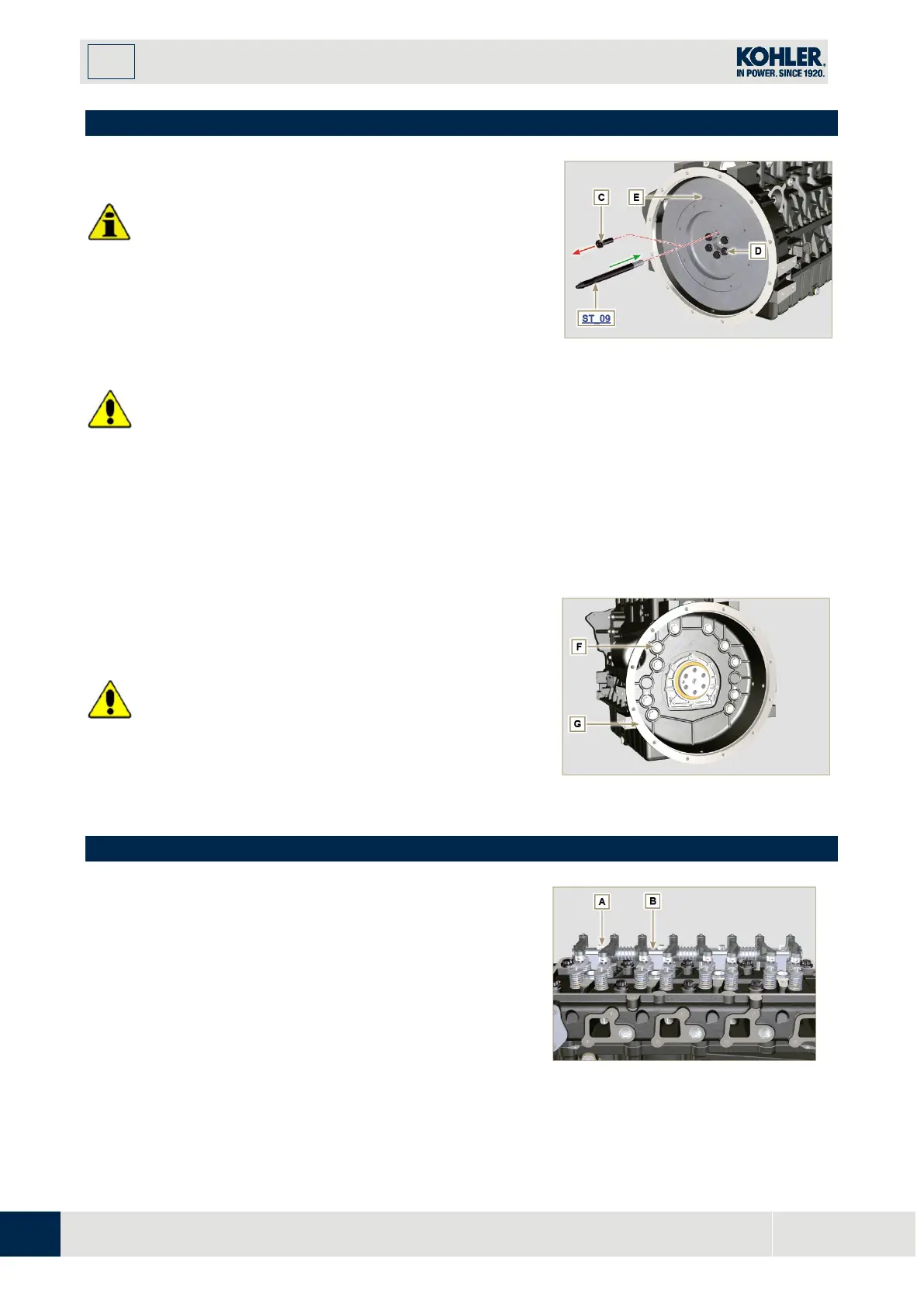

7.11 Flange unit disassembly
7.11.1 Flywheel
Important
•
Leave the special tool ST_34 for blocking the flywheel.
1.
Only undo the screw C located upwards.
2.
Insert the tool ST_09 in the seat of the screw C
tightening it all the way.
3.
Undo the remaining screws D.
D
anger
•
The flywheel E is very heavy, pay utmost attention while
removing it in order to prevent it from falling, with
serious consequences for the operator.
4.
Remove the flywheel E.
5.
Remove the tool ST_09.
6.
Remove the tool ST_34 shown in Fig. 7.1.
Fig 7.28
7.11.2 Flange housing
1.
Undo the screws F and remove the engine housing G.
D
anger
•
The housing G is very heavy, pay utmost attention while
removing in order to prevent it from falling, with serious
consequences for the operator.
Fig 7.29
7.12 Cylinder head unit disassembly
7.12.1 Rocker arm pin
1.
Undo the screws A.
2.
Remove the rocker arm pin unit B.
Fig 7.30
