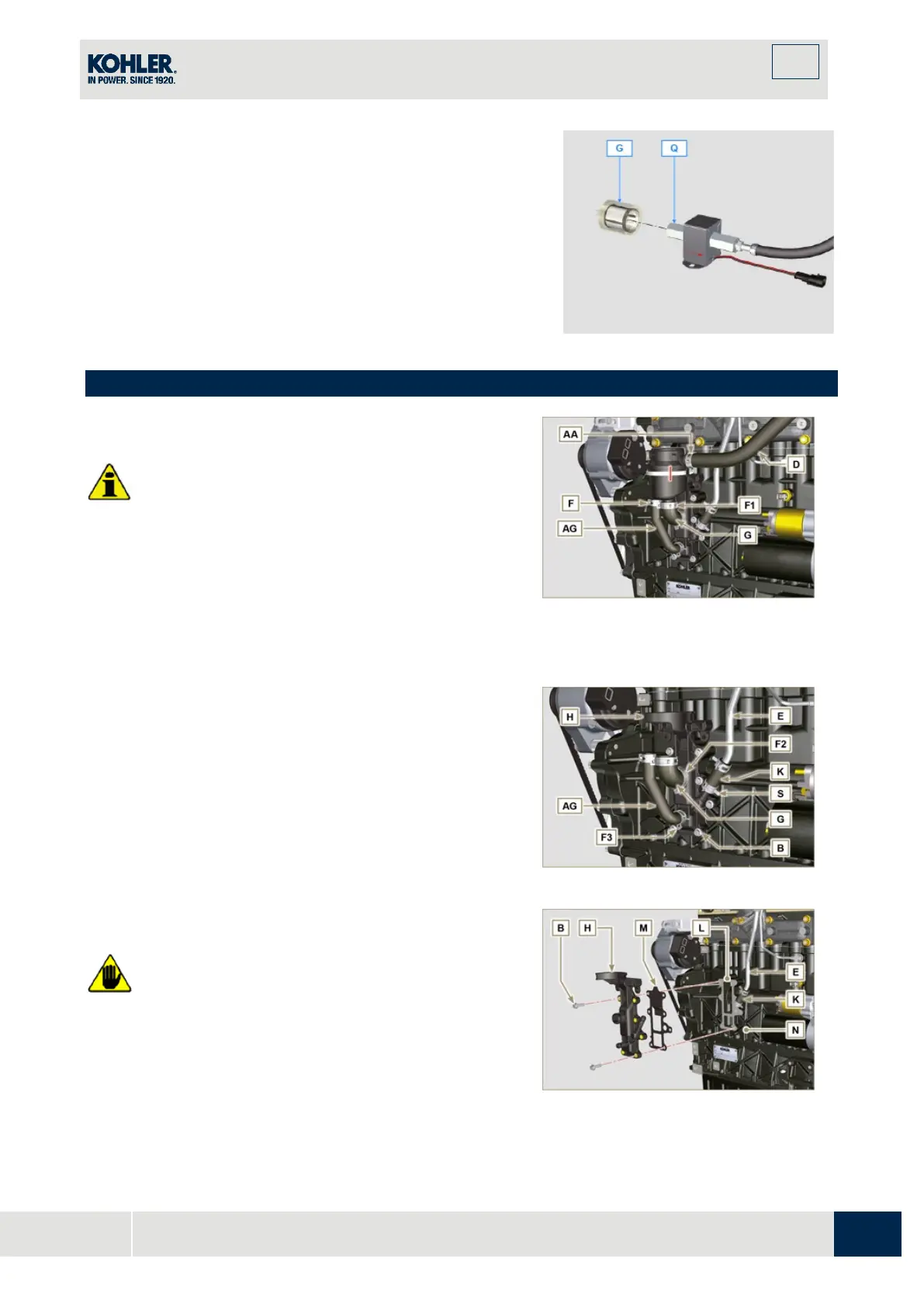

INFORMATION FOR REPLACING THE
FUNCTIONAL UNITS
6
79
EN
4.
Screw the new filter G onto the pump Q (tightening
torque 20 Nm).
5.
Connect the hose E to the filter G and fasten with the
clamp D.
6.8 Oil vapour separator replacement
Important
•
Before proceeding with operation, read Par. 3.3.2.
1.
Release the clamp AA and remove the pipe D.
2.
Release the clamps F.
3.
Remove the clamp P cutting it in the point indicated
and remove the separator body C removing it from
the hose AG and G.
Fig 6.63
4.
Release the clamp F.
5.
Remove the pipes G and AG.
6.
Undo the screws B.
7.
Release the clamp S from the sleeve K.
8.
Pull the flange H out of the manifold K and remove
the
relevant gasket, being careful not to bend the pipe
E.
Fig 6.64
Warning
•
Always carefully inspect the condition of the tubes,
and replace them if there is any doubt regarding their
integrity.
•
Always replace the gasket M after each assembly.
1.
Check that the contact surface L is free from
impurities.
Fig 6.65
