Kohler KDI 2504TM

INFORMATION FOR REPLACING THE
FUNCTIONAL UNITS
6
75
EN
6.4.8 Coolant pump assembly
1.
Perform the operations described in Par 6.2.2.

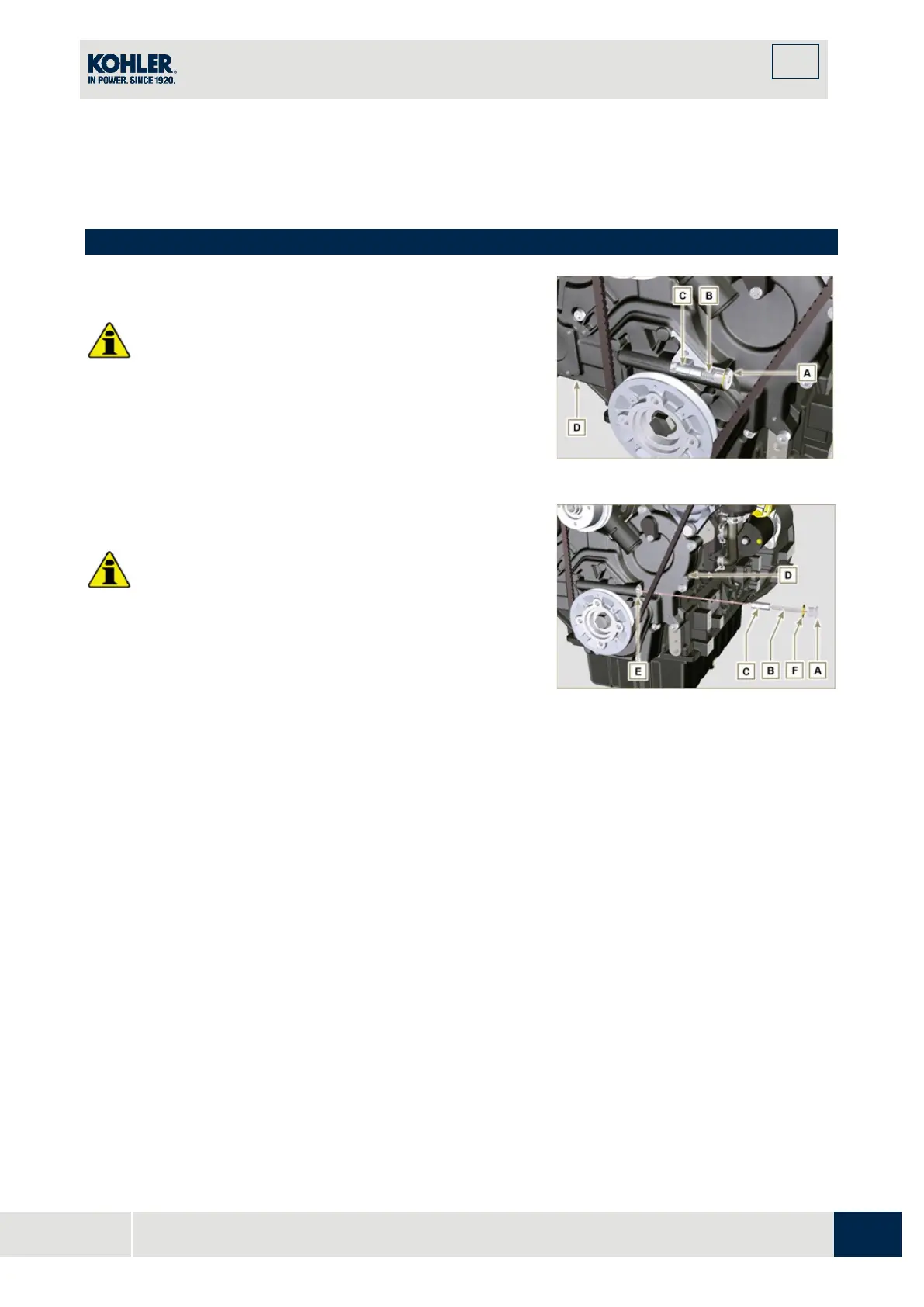

6.5 Oil pressure valve replacement
6.5.1 Disassembly
Important
•
Before proceeding with operation, read Par. 3.3.2.
1.
Undo the cap A.
2.
From the crankcase D, remove the spring B.
3.
Remove the valve piston C using a magnet.
Fig 6.46
6.5.2 Assembly
Important
•
Carry out the checks described in Par. 8.7.3 prior t
o
assembly.
•
Always replace the gasket F after each assembly.
1.
Lubricate the piston C and fully insert it in the seat E.
2.
Insert the spring B in the piston.
3.
Mount the gasket F on cap A.
4.
Clamp the cap A on the crankcase D (tightening torque
at 50 Nm).
Fig 6.47
