Kohler KDI 2504TM Workshop Manual

INFORMATION FOR DISASSEMBLY
7
83
EN

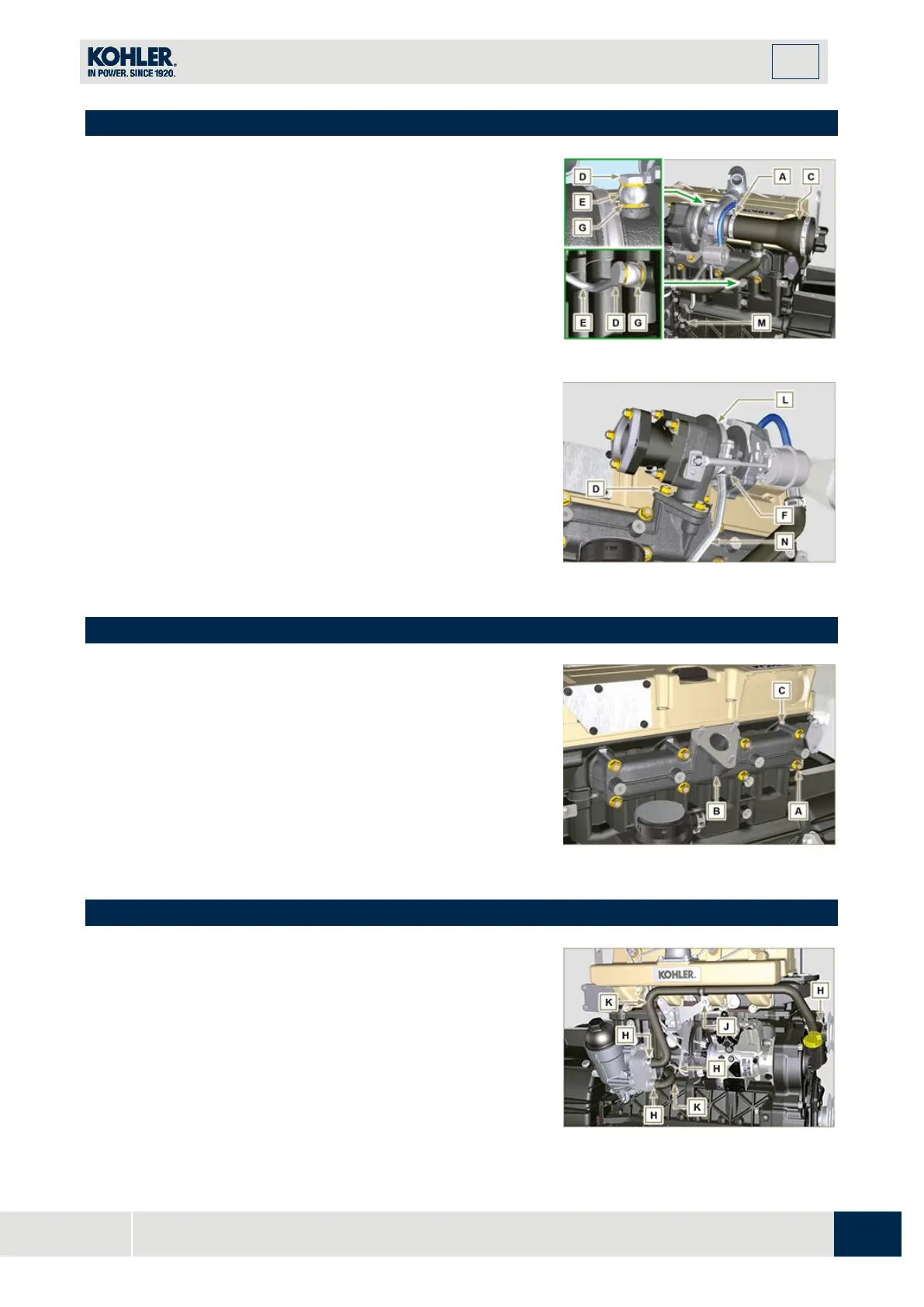

7.3 Turbocharger disassembly
1.
Follow operations 1 and 2 of Par. 6.1.2.
2.
Release the clamps A and B and remove the manifold C.
3.
Unscrew the fittings D and remove the pipe E with the
relative gaskets G.
4.
Release clamp M.
Fig 7.6
5.
Undo the screws F.
6.
Undo the nuts H and remove the turbocharger L.
7.
Remove tube N.
Fig 7.7
7.4 Exhaust manifold disassembly
1.
Undo the nuts A and remove the manifold B and the
metallic gaskets C.
2.
Close the openings and manifolds to prevent foreign
b
odies from entering.
Fig 7.8
7.5 Coolant recirculation components disassembly
7.5.1 Oil Cooler manifold
1.
Release the clamps H.
2.
Undo the screw J.
3.
Remove the pipes K out of the Oil Cooler unit.
Fig 7.9
