9.13 Turbocharger Assembly
•
Before proceeding, perform the operation
described in Par. 2.18.
•
Ensure that tube B is not clogged.
1.
Fasten the connecting sleeve A to the pipe B
with the clamp C onto the flange fitting D.
I
mportant
•
Always replace the gasket F after each
assembly.
2.
Lubricate and insert the gasket F into the
seat of the pipe G.
I
mportant
•
Remove the plastic or foam caps from the
turbo compressor before assembling.
•
Replace nuts M with each assembly.
3.
Check that the contact surfaces E are fr
ee
f
rom impurities deformations or cracks,
otherwise replace exhaust manifold L.
4.
Position the turbo-compressor H on the bolts
on the manifold L.
5.
Fasten the turbo-compressor H with the nuts
M (tightening torque of 25 Nm).
6.
Insert the sleeve T on the turbo-compress
or
H and secure it with the clamp U.
7.
Fasten the pipe G with the screws N to the
turbo-compressor H.
I
mportant
•
Always replace the gasket P after each
assembly.
•
Before assembly of the tube Q, perform the
operation described in Par. 2.18.2 - point 2.
•
Ensure that tube Q is not clogged.
8.
Insert the gaskets P between:

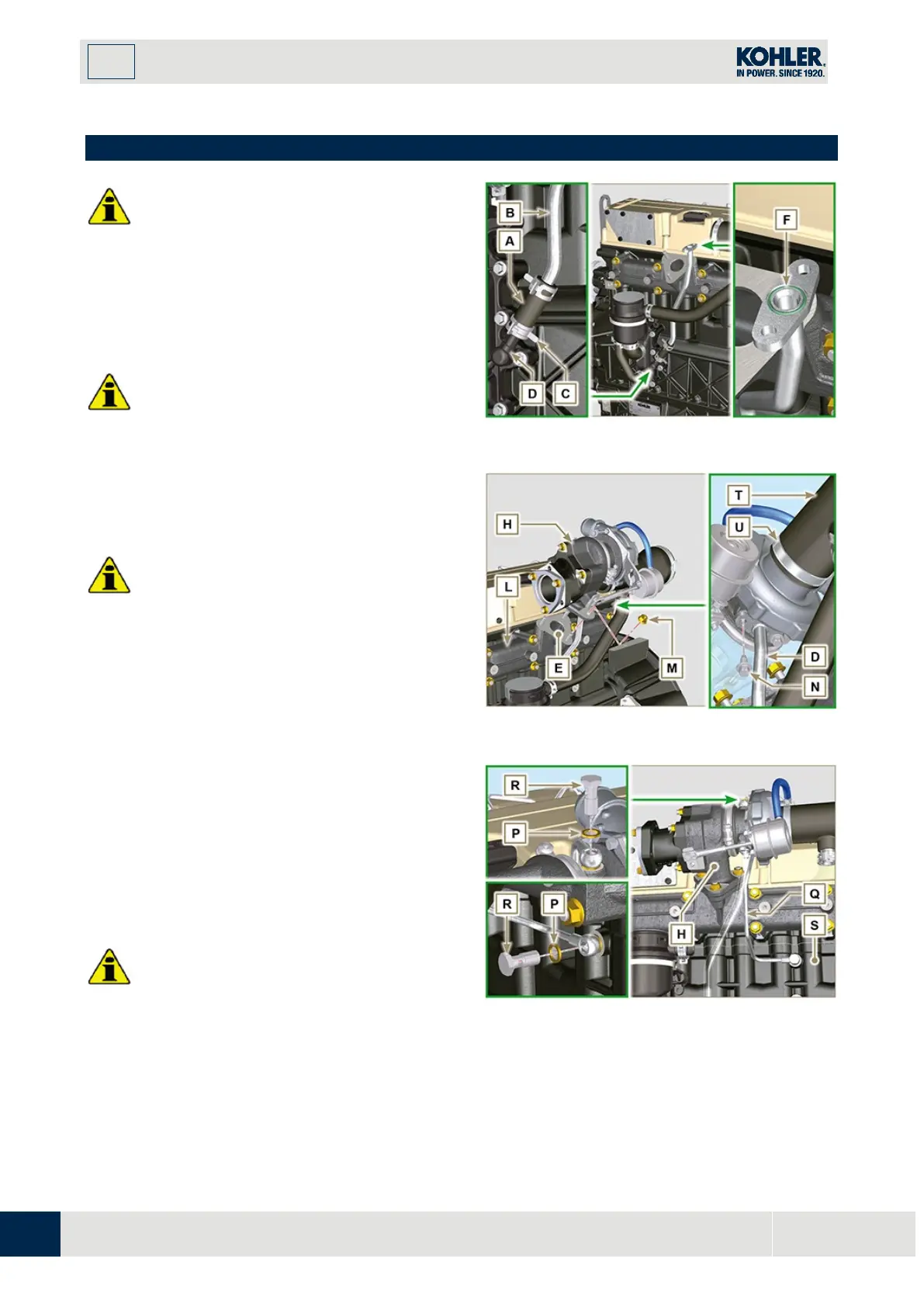

Fig 9.81
Fig 9.82
F
ig 9.83
