Kohler KDI 2504TM

2
TECHNICAL INFORMATION
EN 42

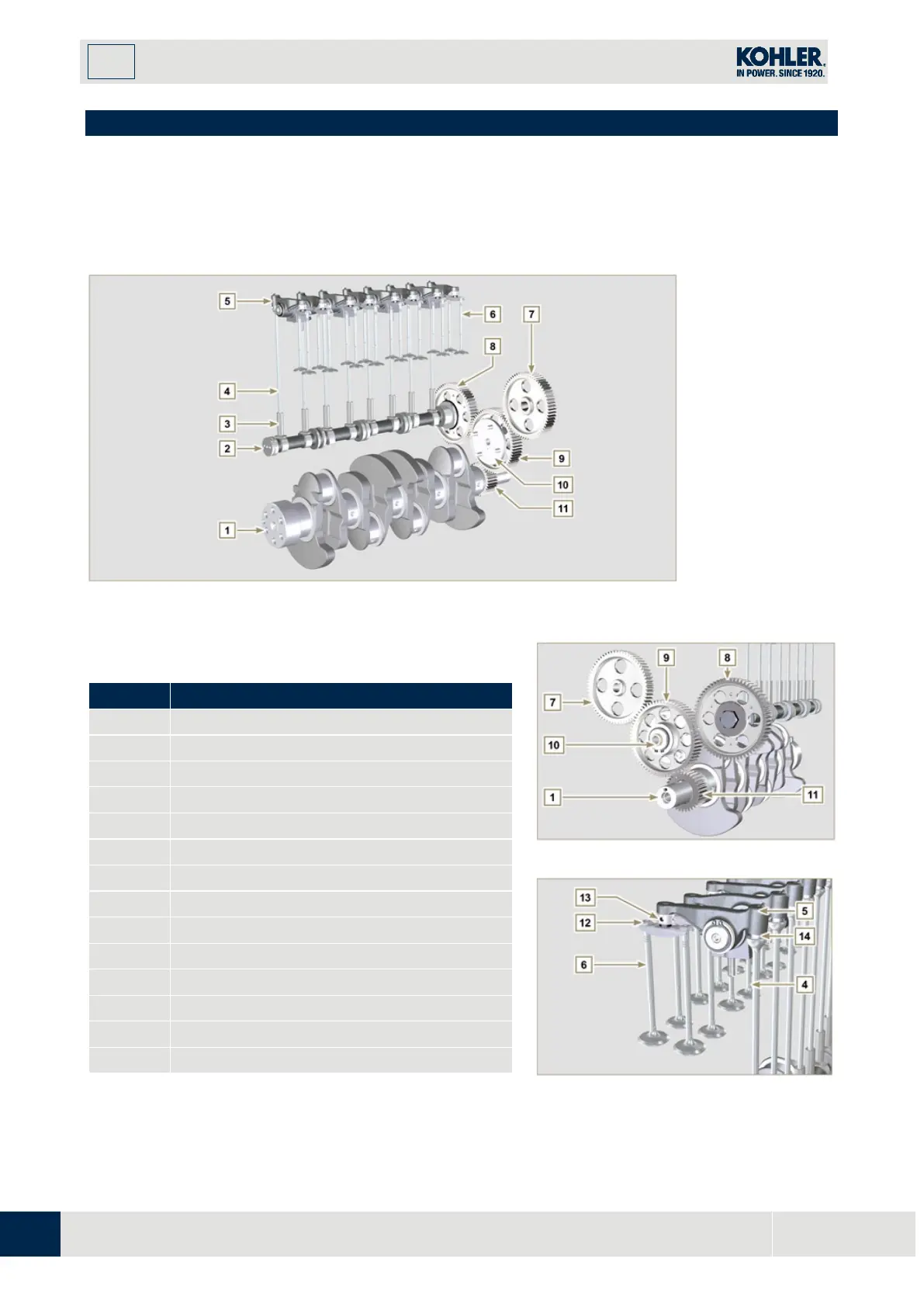

2.16 Timing system and tappets
The timing system is equipped with hydraulic tappets that automatically recover the operation of the rocker
rods assembly.
No registration is therefore required.
2.16.1 Components identification
Fig 2.43
Tab 2.37
POS.
DESCRIPTION
1
Crankshaft
2
Camshaft
3
Camshaft tappets
4
Rocker arm control rod
5
Rocker arms
6
Valves
7
Injection pump control gear
8
Camshaft control gear
9
Intermediate gear
10
Intermediate gear pin
11
Crankshaft gear
12
Valve control bridge
13
Articulation control valves
14
Hydraulic tappets
Fig 2.44
Fig 2.45
