Kohler KDI 2504TM

INFORMATION FOR DISASSEMBLY
7
87
EN

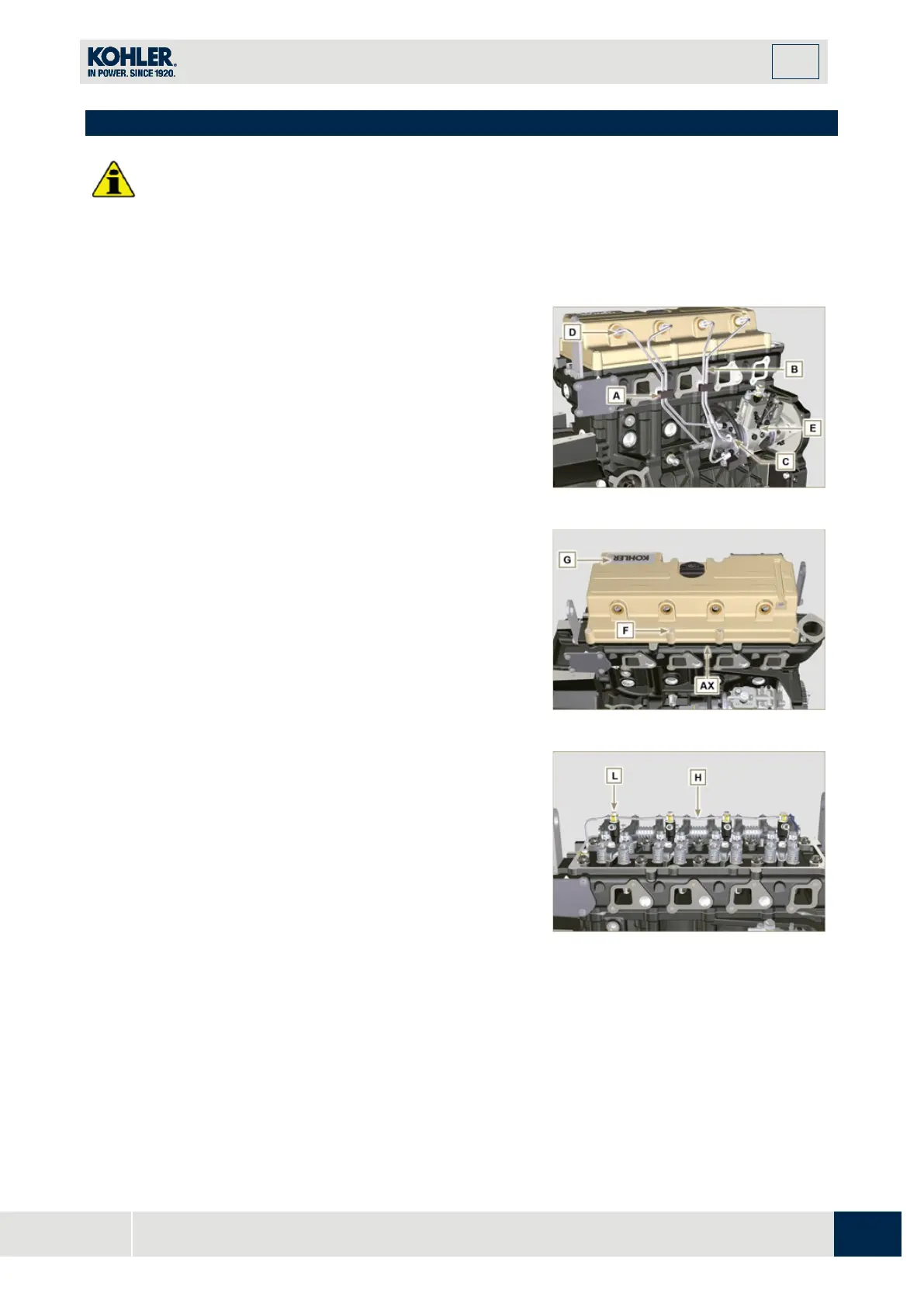

7.9 Fuel system disassembly
Important
•
Seal all injection component unions as illustrated i
n
P
ar. 2.9.7.
•
The fuel injection circuit undergoes high pressure, use
safety protections as described in Par 3.4.3.
7.9.1 Fuel injection pipes
1.
Remove loking clips A from pipes B.
2.
Loose nuts C and D and remove pipes B.
Fig 7.19
7.9.2 Rocker arm cover
1.
Undo the screws F and remove the rocker arm cap G.
Fig 7.20
7.9.3 Fuel return pipes
1.
Undo the screws L and remove hose H.
Fig 7.21
