Kohler KDI 2504TM Workshop Manual

GENERAL INFORMATION
1
9
EN

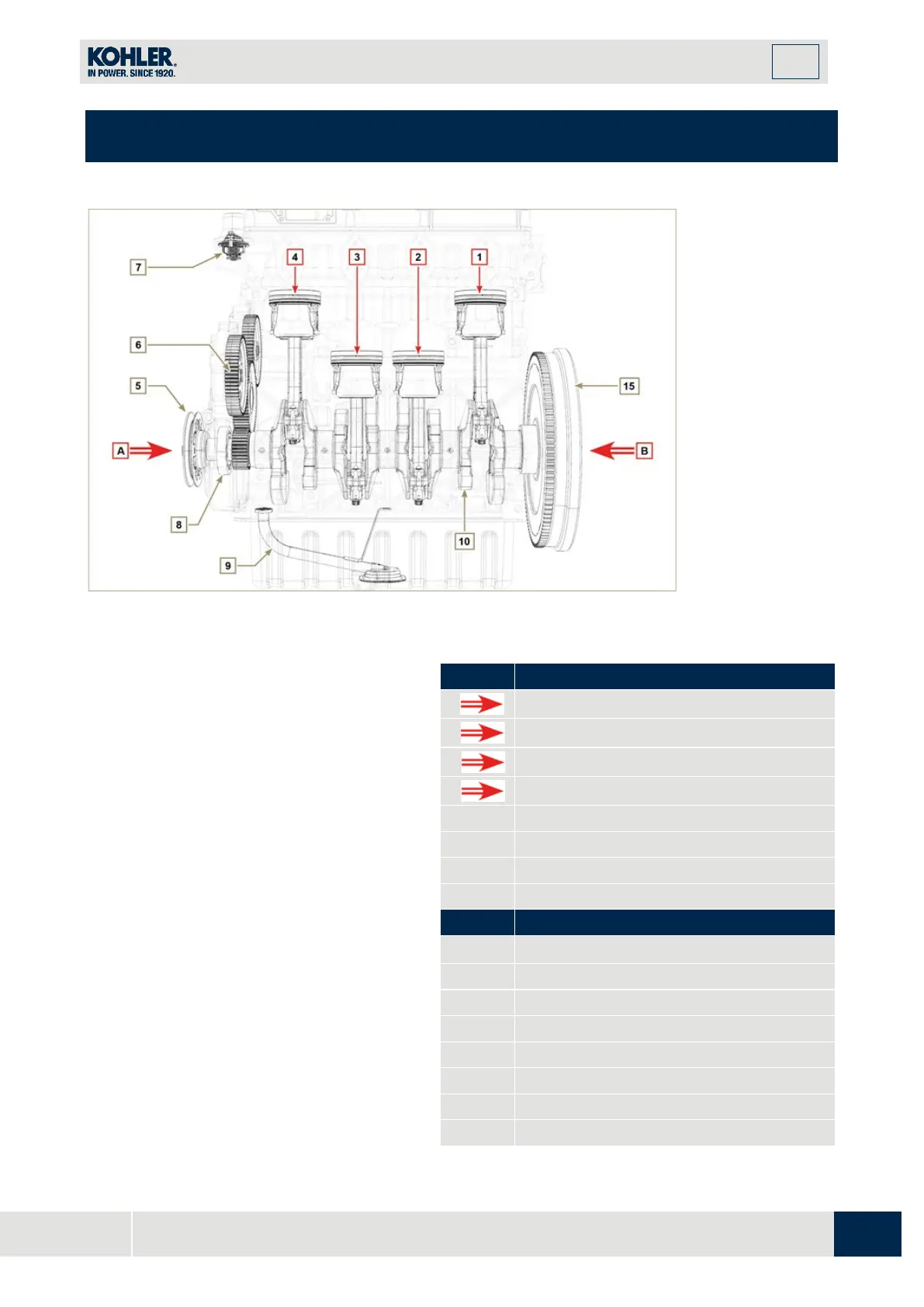

1.3 Identification of the main internal components of the engine and operating reference
(BASE CONFIGURATION)
VIEW OF EXHAUST SIDE
F
ig 1.4
The following chapters contain operating
references in order to clearly understand the
engine. This paragraph illustrates these
references that may be recognised by means
of some main internal components.
Should you need to execute complex
operations, always consult this paragraph.
N
OTE
: it is advisable to keep this page visible
during disassembly and assembly operations.
Tab 1.1
REF.
DESCRIPTION
A
View of timing system side (2
nd
PTO)
B
View of flywheel side (1
st
PTO)
C
View of exhaust side
D
View of intake side
1
Cylinder/Piston N. 1 (KDI 1903 - KDI 2504)
2
Cylinder/Piston N. 2 (KDI 1903 - KDI 2504)
3
Cylinder/Piston N. 3 (KDI 1903 - KDI 2504)
4
Cylinder/Piston N. 4 (KDI 2504)
POS.
DESCRIPTION
5
Crankshaft pulley (2
nd
PTO)
6
Gear timing system
7
Thermostatic valve
8
Oil pump
9
Oil suction hose
10
Crankshaft
11
Exhaust manifold
12
Intake manifold
