Kohler KDI 2504TM Workshop Manual

ASSEMBLY INFORMATION
9
139
EN

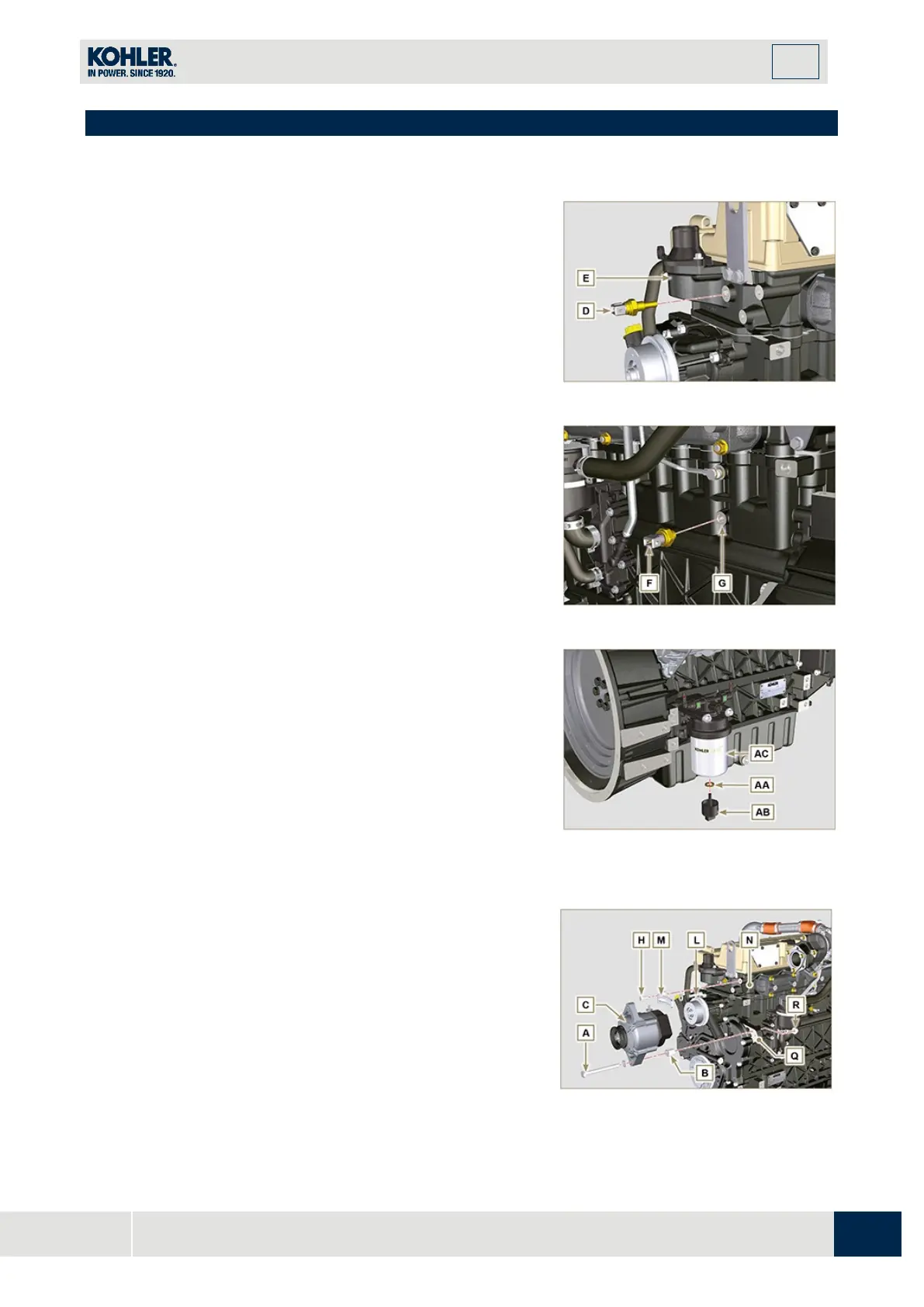

9.15 Electric component assembly
9.15.1 Sensors and switches
9.15.1.1 Coolant temperature sensor
1.
Secure the sensor D onto the head E (tightening torque
of 20 Nm).
Fig 9.87
9.15.1.2 Oil pressure switch
1.
Clamp the oil pressure switch F on the crankcase G
(tightening torque at 35 Nm).
Fig 9.88
9.15.1.3 Fuel filter water detection sensor
1.
Lubricate and insert the gasket AA on the fitting AB.
2.
Fix the sensor AB onto the cartridge AC (tightening
torque of 5 Nm).
Fig 9.89
9.15.2 Alternator
1.
Mount the bracket M on the head N using the screw H
and relative washer, without clamping it.
2.
Fit the alternator with the screw A with the relative
washer and spacer B.
3.
Mount the alternator C on the crankcase Q tightening
the nut R up to the stop without clamping it.
4.
Mount the screw L and relative washer on the alternator
C, without clamping it.
5.
Clamp screw H (tightening torque of 25 Nm).
Fig 9.90
