Kohler KDI 2504TM Workshop Manual

9
ASSEMBLY INFORMATION
EN 138

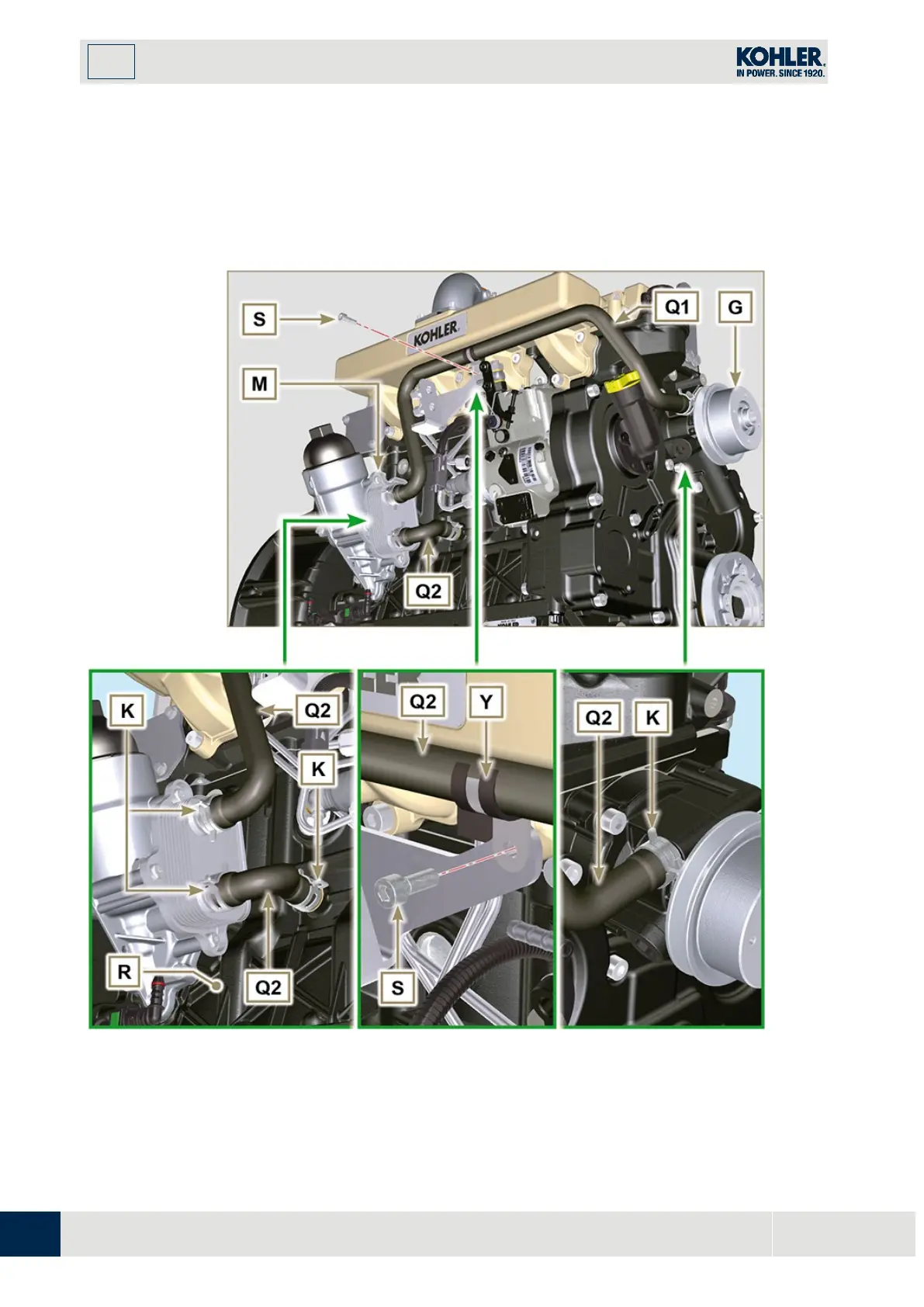

9.14.3 Oil Cooler hoses
1.
Fit hose Q1 onto coolant pump G and Oil Cooler M.
2.
Fit hose Q2 onto crankcase R and Oil Cooler M.
3.
Secure the sleeve Q on Oil Cooler M and to the pump G with the clamps K.
4.
Fasten the clamp Y with the screw S (tightening torque of 22 Nm - ST_05).
Fig 9.86
