6 INFORMATION FOR REPLACING THE
FUNCTIONAL UNITS
6.1 Injectors and injection pump replacement
Important
•
Before proceeding with operation, read Par.
3.3.2.
•
Replace the high pressure pipes after two
disassemblies.
•
Always replace the gaskets after each
disassembly.
•
Handle the components as described in
Par. 2.17.
•
Please referring to Par. 2.9.7 in order to see
the operating references during
disassemble and assemble procedures.
•
When repaired, RSN-A injectors must be
certified by a Stanadyne centre to check
their correct operation - check the type o
f
e
ngine mounted injectors on the spare parts
list (RSN-A is specified in the description).

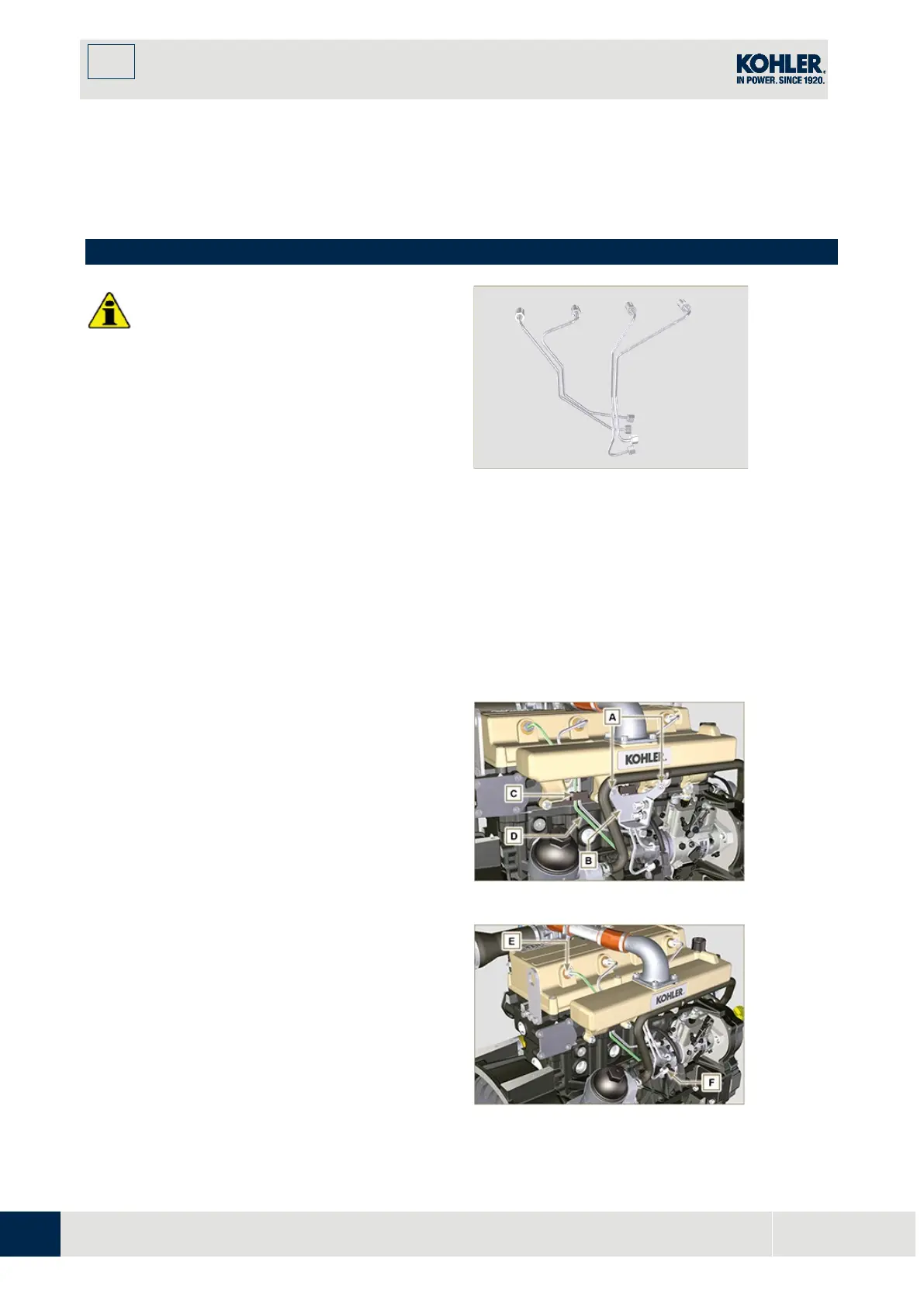

Fig 6.1
6.1.1 Injection fuel pump disassembly (injection
pump/injectors)
1.
Undo the screws A and remove plate B.
2.
Remove the retainers C for the hoses D.
Fig 6.2
3.
Undo the nuts F.
4.
Undo the nuts E.
5.
Remove the tube D.
