Kohler KDI 2504TM Workshop Manual

9
ASSEMBLY INFORMATION
EN 132

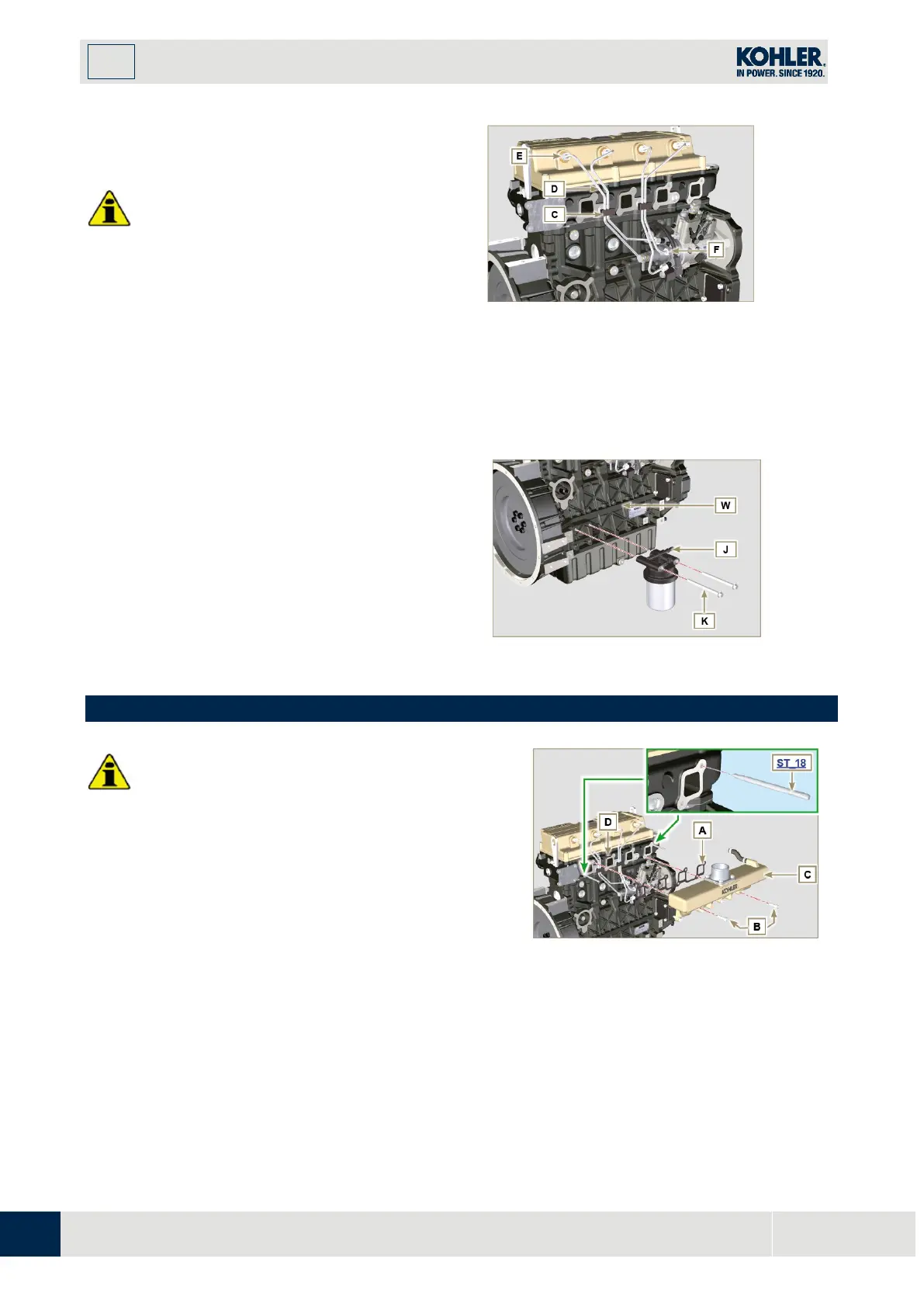

9.8.4 Installation of the fuel injector pipes
(injection pump/injectors)
Important
•
Replace the high pressure pipes after two
disassemblies.
1.
Position pipes D on the injectors and on th
e
i
njector pump and tighten the nuts E and F
manually, without clamping them.
2.
Clamp the nuts E and F (tightening torque at
25 N
m).
3.
Mount the retainers C of the hoses D.
Fig 9.68
9.8.5 Fuel filter
1.
Secure the fuel filter holder J with the screws
K on the crankcase W (tightening torque of
25 Nm)
.
NOTE:
For the assembly of the fuel cartridge, refer to
operation 2 of
Par. 6.7.2
.
Fig 9.69
9.9 Intake manifold assembly
Important
•
Check that the contact surfaces between th
e
c
ollector C and the head D are free from impurities.
1.
Insert ST_18 special tool into market point.
2.
Mount the gasket A on the head D.
3.
Mount the manifold C on the head D.
4.
Fit the manifold C using the screws B (tightening
torque of 25 Nm).
Fig 9.70
