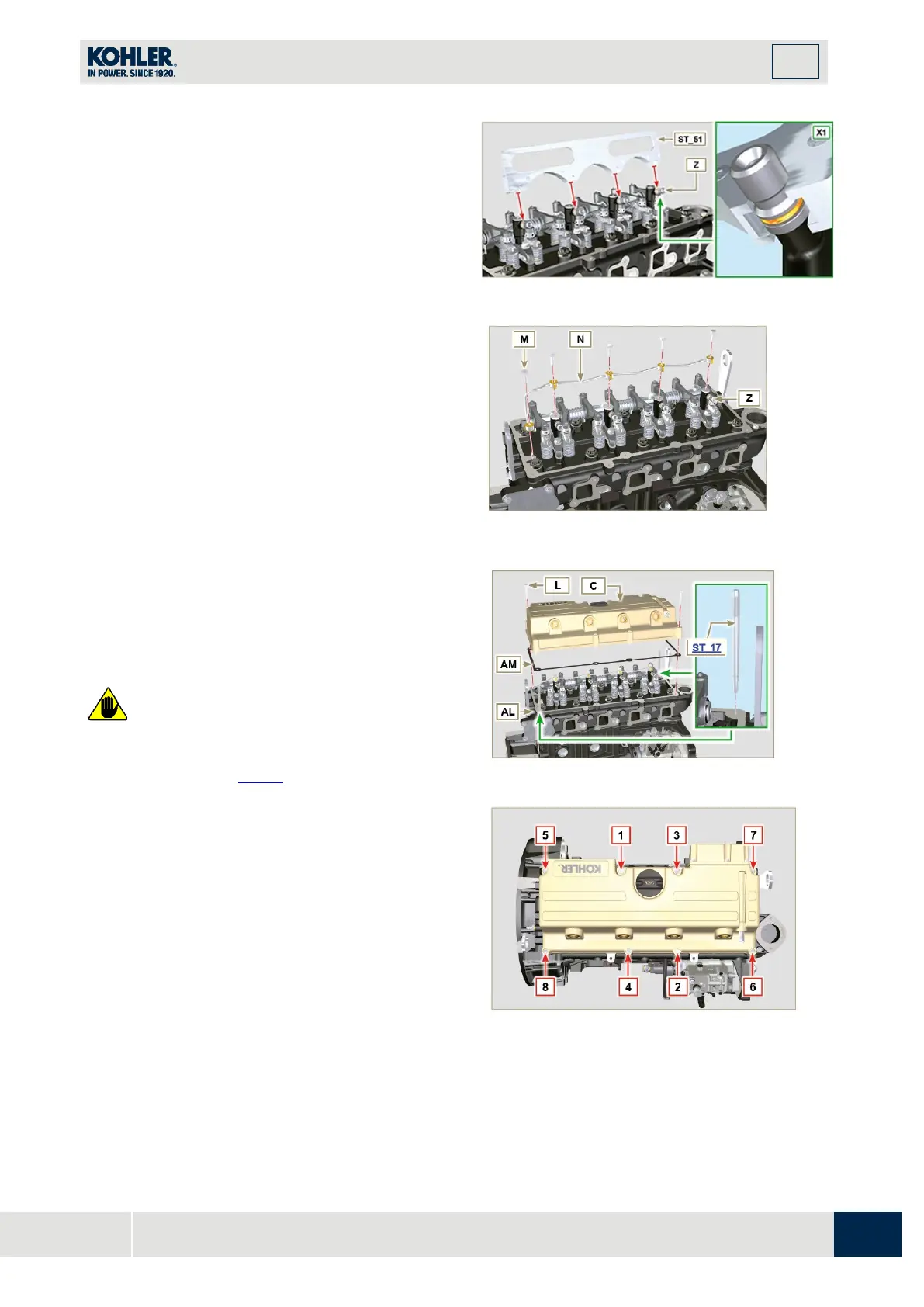

Kohler KDI 2504TM Workshop Manual

ASSEMBLY INFORMATION
9
131
EN
5. Insert tool
ST_51
on the injectors junctions
Z
(detail
X1
).
6.
Tighten the screw
P
(tightening torque to
20 Nm
)
Fig 9.63
9.8.2 Fuel injector ricicle pipe
1.
Position the tube N on the injectors Z, an
d
ti
ghten screws M (coppia di serraggio a
14
Nm) and insert the gasket T.
Fig 9.64
9.8.3 Rocker arm cover
Important
•
Always replace the gaskets AK after each
disassembly (ST_36
).
1.
Position tool ST_17 onto the head i
n
c
orrespondence with the two fastening holes
5 and 6 (Fig. 9.67).
2.
Position the gasket AM on the head AL using
tool ST_17 as a guide.
3.
Fit the rocker arm cap C on the head AL via
the screws L observing the clamping
sequence illustrated in Fig. 9.67.
4.
With vaseline lubricate the gaskets AK.
Fig 9.65
Fig. 9.67
