6
INFORMATION FOR REPLACING THE
FUNCTIONAL UNITS
EN 76

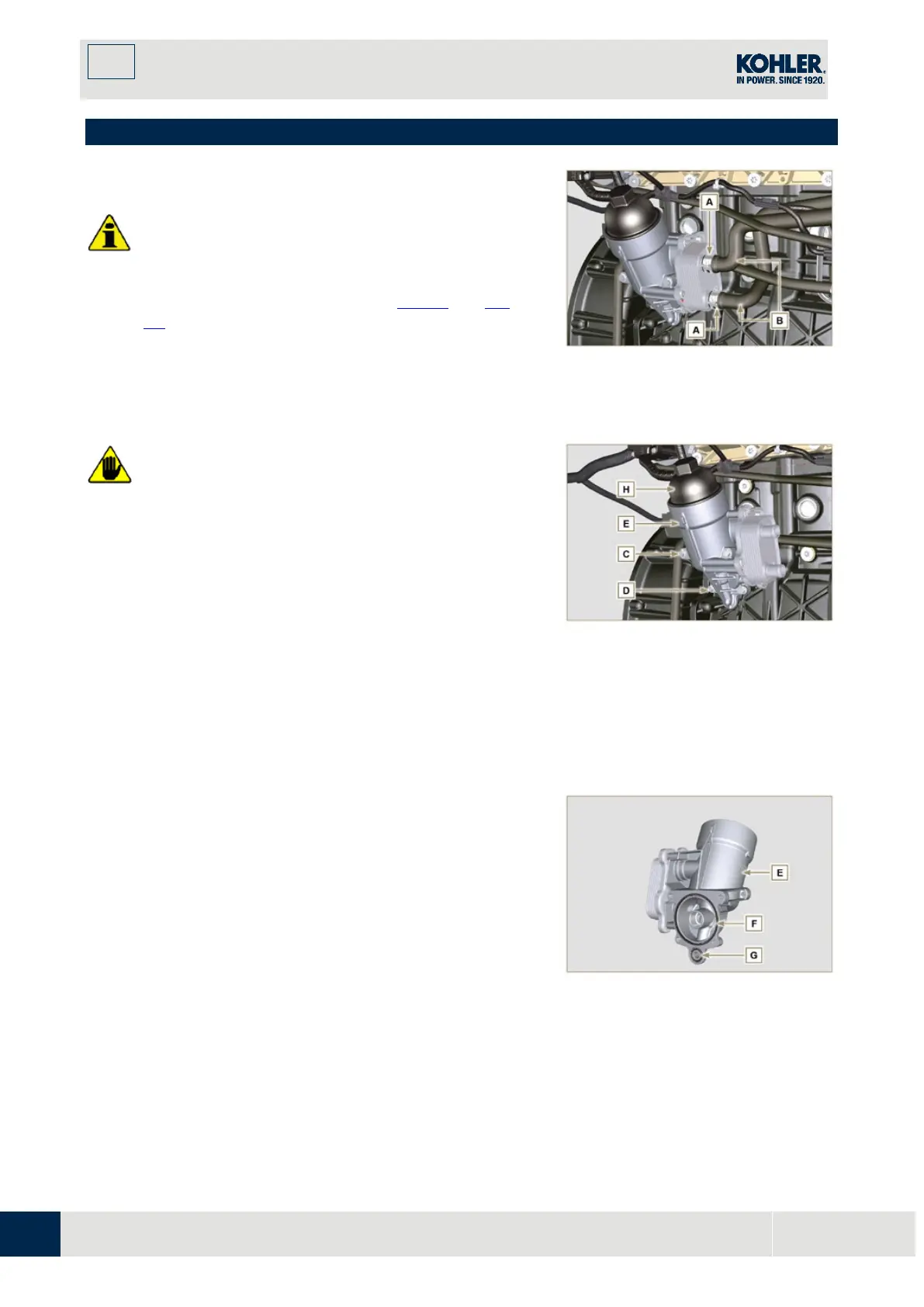

6.6 Oil cooler unit and oil filter replacement
6.6.1 Oil Cooler unit disassembly
Important
•
Before proceeding with operation, read Par. 3.3.2.
•
Perform the operations described in Par 5.1 and Par
5.2.
•
Oil Cooler unit E is not repairable.
1.
Release the clamps A.
2.
Remove the pipes B o
ut of the Oil Cooler unit E.
Fig 6.67
•
Electric/pneumatic screwdrivers are forbidden.
•
Use a suitable container to recover any residue oil.
3.
Unscrew cartridge holder cover H by performing three
complete turns and wait 1 minute.
NOTE
: this operation allows to oil contained in the support
E
to
flow into the oil sump in the correct way.
4.
Unscrew cartridge holder cover H and check that the oil
in the lub. oil filter support E has flowed towards the oil
sump.
5.
Undo the screws C and D and remove the Oil Cooler
uni
t E.
Fig 6.68
6.
Remove the gaskets F and G from the Oil Cooler unit E.
