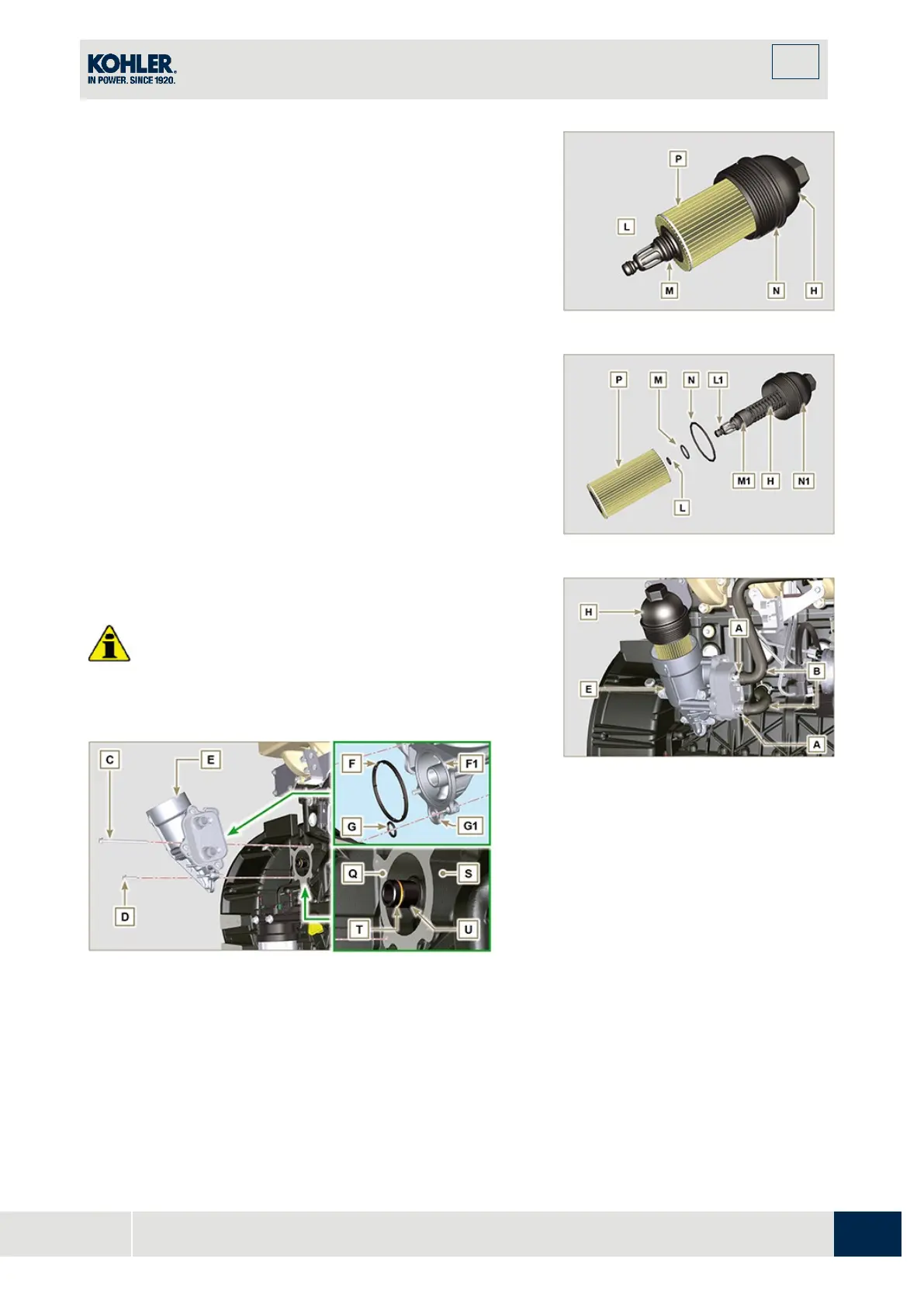

6.6.2 Oil filter cartridge replacement
1.
Remove gaskets L, M and N from element holder cover
H.
2.
Remove cartridge P from element holder cover H.
Fig 6.70
1.
Lubricate and insert gaskets L, M and N in the L1, M1
and N1 seats of element holder cover H.
2.
Insert element P into element holder cover H.
Fig 6.71
6.6.3 Oil Cooler unit assembly
Important
•
In the event of assembly of union U on crankcase S,
manual tightening torque with Loctite 2701 on the
thread).
Fig 6.72
1.
Check that the surface Q on the support E and on the
crankcase S are free from impurities.
2.
Lubricate and insert the gasket T on the fitting U.
3.
Lubricate and insert the gaskets on the support E :
F in seat F1;
G in seat G1.
4.
Fit the support R with the screws C and D (tightening
torque at 10 Nm).
Fig 6.73
