Kohler KDI 2504TM

INFORMATION FOR DISASSEMBLY
7
89
EN

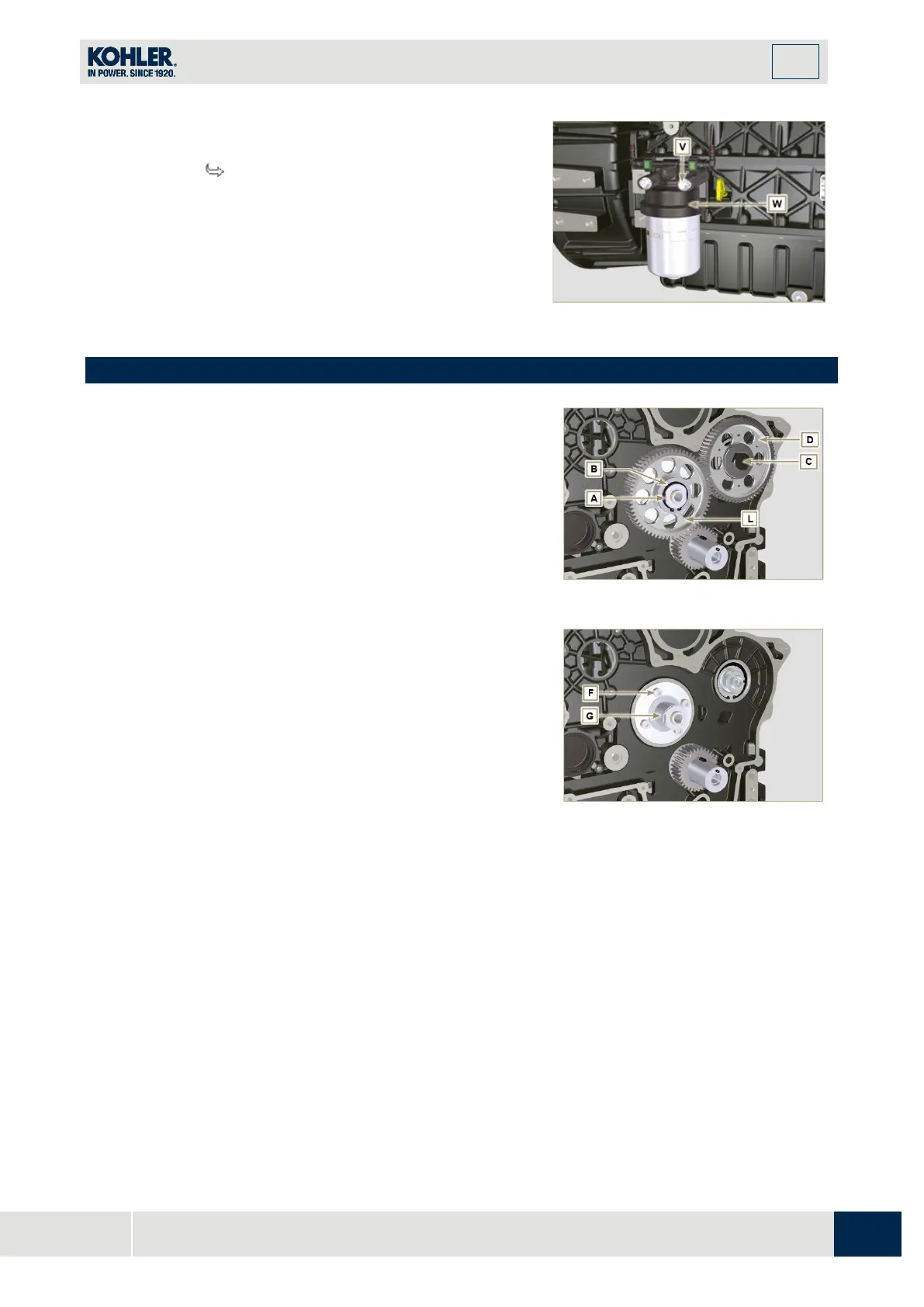

7.9.6 Fuel filter ( )
NOTE:
to disassemble the fuel cartridge, refer to operations
1
and 2 of Par. 6.7.1
.
1.
Undo the screws V and remove the filter support W.
Fig 7.26
7.10 Timing system gear disassembly
1.
Unscrew screws C and remove camshaft gear D.
2.
Remove lock ring A and the shoulder ring B.
3.
Remove the intermediate gear L.
Fig 7.26
4.
Undo the screws F and remove the intermediate gear
support G.
Fig 7.27
