Kohler KDI 2504TM

2
TECHNICAL INFORMATION
EN 30

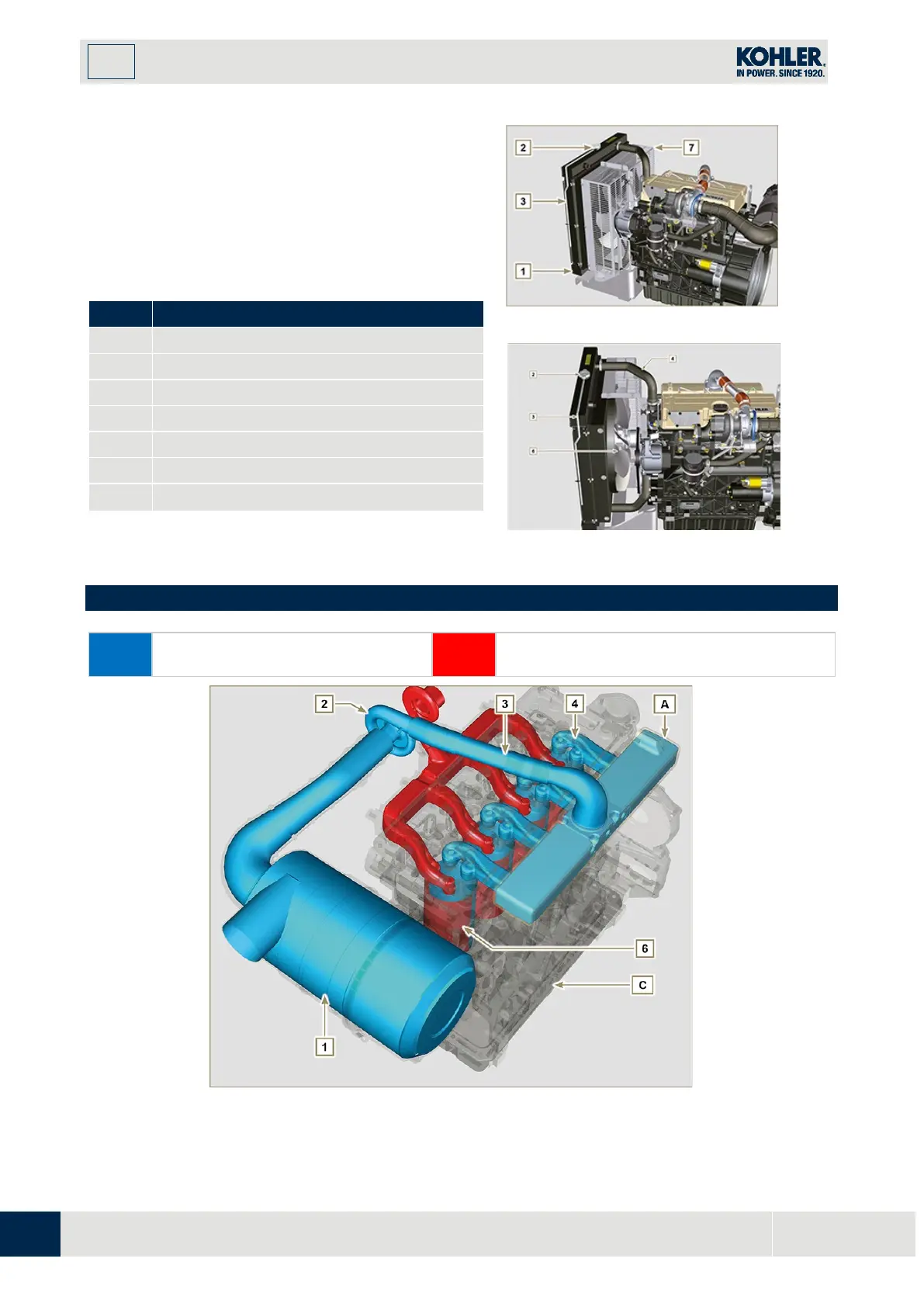

2.11.4 Radiator (optional)
NOTE:
Component not necessarily supplied by
Kohler.
Tab 2.27
POS.
DESCRIPTION
1
Radiator group
2
Coolant refill cap
3
Vent tube or excess coolant return
4
Coolant flow manifold
5
Coolant intake manifold
6
Fan
7
Protective grid
Fig 2.21
Fig 2.22
2.12 Intake and exhaust circuit
Air in intake
Gas in exhaust
