Kohler KDI 2504TM Workshop Manual

TECHNICAL INFORMATION
2
33
EN
2.13 Electric system
2.13.1 Engine electrical wiring (opzional)
N
OTE
: Component not necessarily supplied by
KOHLER
.
E
lectrical wiring is supplied upon request, it interfaces with the
panel by means of 19-way Deutsch connectors (female on
engine panel - male on accessories panel).
The connectors are described in Tab. 2.30.

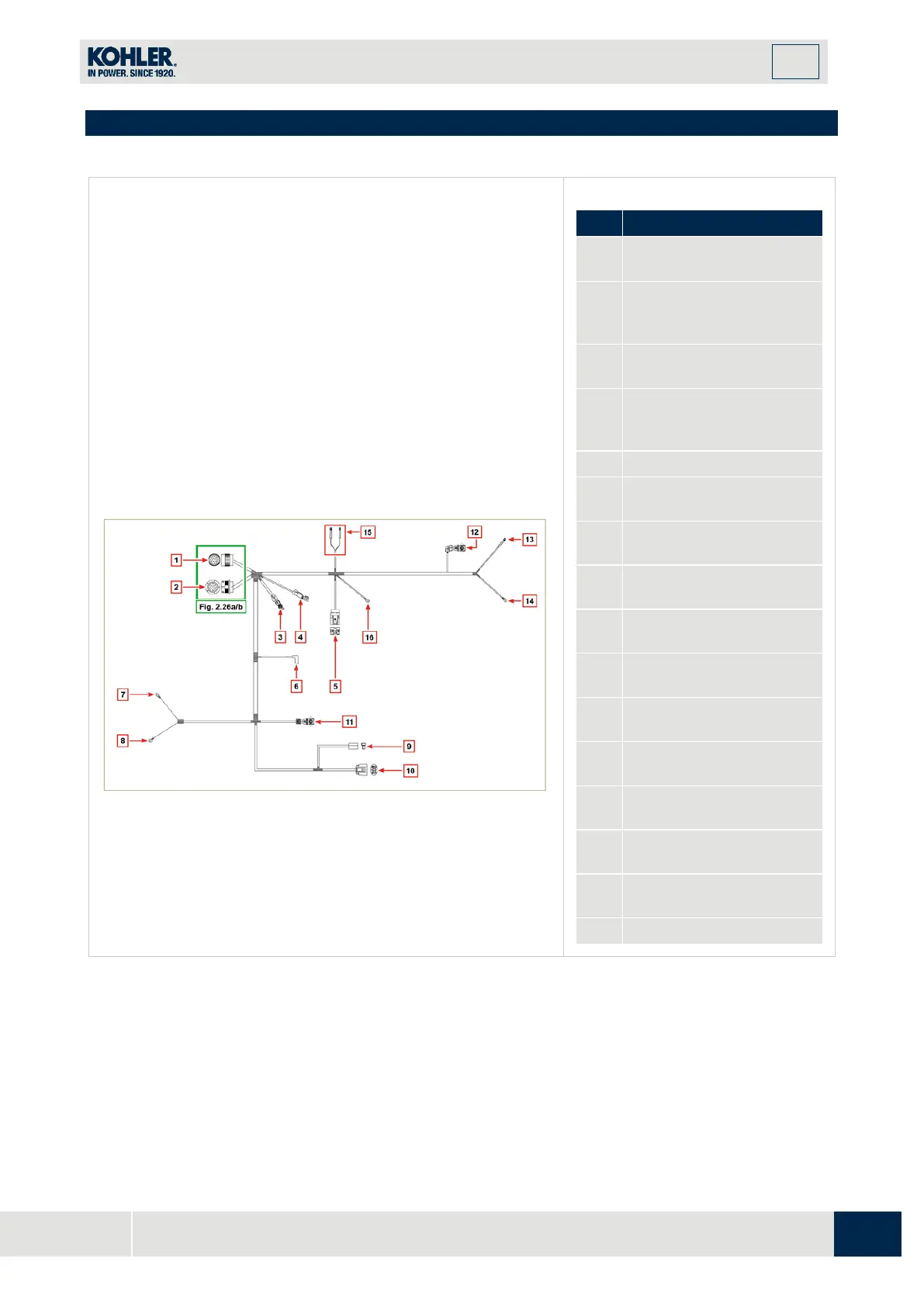

Fig 2.25
Tab 2.30
REF.
DESCRIPTION
1
Engine panel connector
interface (Fig. 2.26a)
2
Accessories panel
connector interface (Fig.
2.26b)
3
Electrical fuel pump
connector
4
Cold Start Advance
connector (on injection
pump - Fig. 2.39)
5
Fuse connector
6
Electro-Stop connector (on
injection pump)
7
"L" alternator connector
(Iskra)
8
"W" alternator connectors
(Iskra)
9
Alternator connector
without "W" (Chengdu)
10
Alternator connector with
"W" (Chengdu)
11
Coolant temperature
sensor connector
12
Coolant temperature
sensor connector
13
Starter motor connector "+
50"
14
Starter motor connector "+
30"
15
Air cleaner clogging sensor
connector
16
Earth connector
