TECHNICAL INFORMATION
EN 32
NOTE:
Component not necessarily supplied by
KOHLER.
Important
•
The air filter is a dry-type one, with a replaceable paper
filter cartridge
•
The filter intake must be positioned in a cool area.
•
The temperature of the aspirated air must never exceed
ambient temperature by more than 10°C (if you are using
a pipe, its length must not exceed 400 mm and it mus
t
b
e as straight as possible).
POS.
DESCRIPTION
H
Air filter cartridge
M
Filter cover
N
Filter support
Q
Dust exhaust valve
R
Dust exhaust valve
2.12.2 Turbocharger
The turbocharger is controlled by means of exhaust gas that
activates the turbine.
Important
•
See Par 2.18.
Tab. 2.29b
POS.
DESCRIPTION
1
Air intake hose
2
Air compression volute
3
Turbo charger central body
4
Turbine housing with Waste Gate valve
5
Gas exhaust flange
6
Waste Gate control valve hose
7
Waste Gate valve control actuator
8
Waste Gate control valve linkage
9
Engine crankcase breather
10
Compressed air delivery hose to the intake manifold
11
Oil drain pipe
12
Turbo charger lubrication pipe

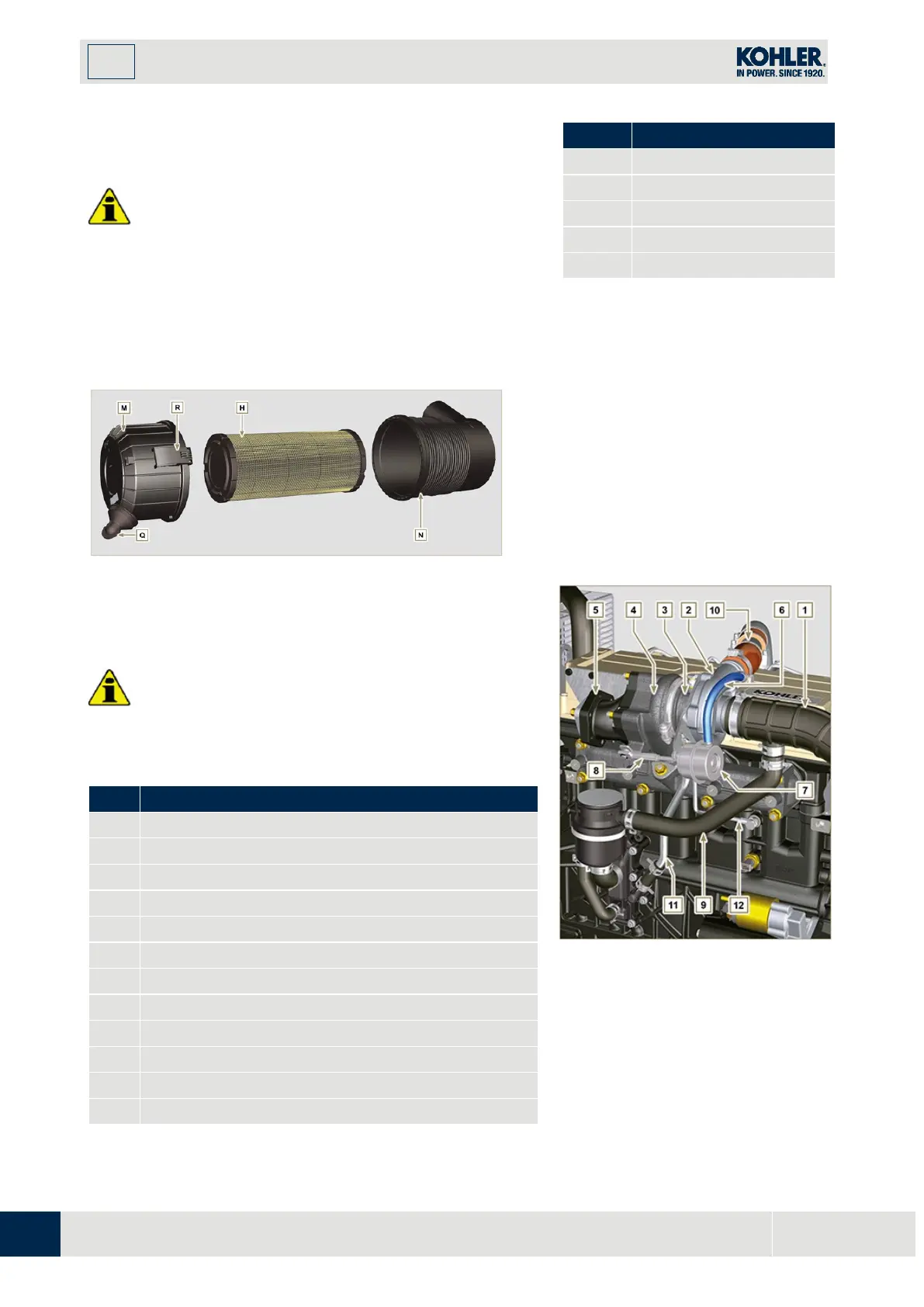

Fig 2.24
