Kohler KDI 2504TM

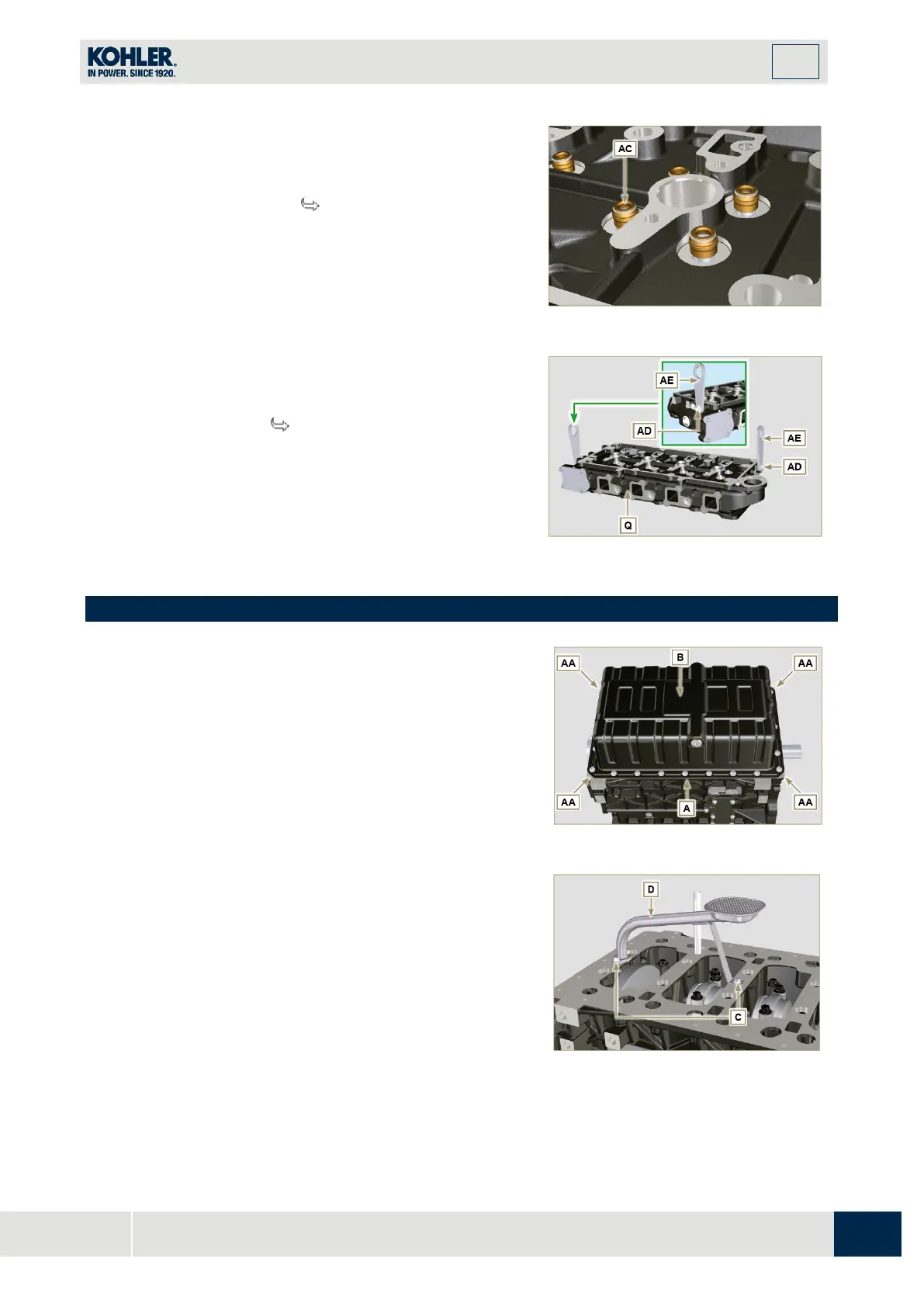

INFORMATION FOR DISASSEMBLY
7
93
EN
7.12.3.3 Valve steam gasket ( )
1.
Remove the oil seals AC.
Fig 7.40
7.12.3.4 Lifting eyebolts ( )
1.
Undo the screws AD and remove the eyebolts AE.
2.
Make the thorough washing the cylinder head Q.
Fig 7.41
7.13 Oil sump unit disassembly
7.12.1 Oil sump
1.
Undo the screws A.
2.
Remove the oil sump B by inserting a plate in the areas
indicated by the arrow AA.
Fig 7.42
7.12.2 Oil intake pipe
1.
Undo the screws C and remove the oil pipe D.
Fig 7.43
